1000W 1500*3000 Stainless Steel Aluminum Copper Sheet Metal Industrial Laser Equipment Metal Plate Tube Pipe Automatic CNC Fiber Laser Cutting Machine

Product Description

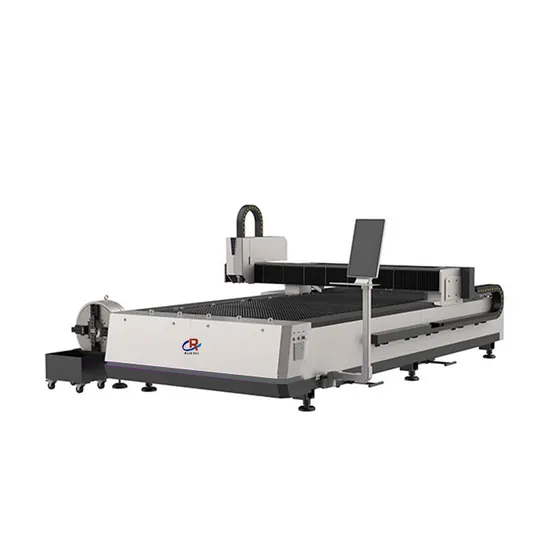

Sheet and Tube Integrated Laser Cutting Machine
Advantages:
Meeting two kinds of processing needs of tubes and plates. It can save more than 50% of the workspace to increase production efficiency. Laser electro-optic conversion rate is as high as 30%, realizing a quite low energy consumption and production cost. Accepting customization of plate cutting area and size of work platform 4. Equipped with a pneumatic full stroke chuck which can catch tubes with a diameter of 15-220mm, It can achieve a great cutting result collaborated with a high precision servo deceleration system.
Processing Materials:
Suitable for stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, aluminum-plating zinc plate, copper, and other metals.
Plate Welding Bed 1. It is welded by a piece of steel plate.
2. The first choice of most laser manufacturers. After the aging annealing process is achieved, it can be used for 20 years. The machine bed must be selected for high-power machines. The production cycle of the plate welding bed is relatively short, easy to organize production, high cutting efficiency, and long service life.
A.Brand: Raytools/WSX/Precitec/OSPRI or others brands customer's requirements;If it is mainly thin plates, below 3000w, recommend:WSX/Raytools
B. Automatic cutting head.It improves the processing efficiency of the fiber laser cutting machine - the thick plate piercing time is reduced; when processing workpieces of different materials and thicknesses, the machine can automatically and quickly adjust the focus to the most suitable position.
The automatic focus will reduce the phenomenon of overheating due to overheating of the plate.

Laser Power: 500W/1000W/1500W/2000W/3000W/4000W/6000W/8000W/10000W/12000W/15000W/20000W/30000W Brand: IPG/RAYCUS/MAX/or others brands customer's The higher the power, the thicker the cutting thickness.

Servo and Motor Brand:Yaskawa, Panasonic, Mitsubishi,quality assurance

2.Rack:
Brand: YYC HIWIN Reduce frictional resistance and improve high-speed performance of linear guides.

What's the difference between fiber laser, YAG laser and CO2 laser working on metal material?

Laser source	Fiber laser	YAG laser	CO2 laser
Beam quality	Best	Good	Poor
Speed	Fast	Slow	Slow
Electrical efficiency	High	Common	Low
Reliability	Best	Good	Poor
Maintenance	Free	Complex	Difficult
Remote processing	Free	Complex	Difficult
Initial investment	High	Common	Low

Product Parameters

Model	RL3015/RL4015/ RL4020/RL6020
Working area	3000*1500mm/4000*1500mm/4000*2000mm/6000*2000mm/Customized
Miximum length of pipe(Options)	3000mm(or)6000mm
Limits of pipe(Customized)	Round tube:Φ20mm~Φ120mm; Square tube :Φ20mm~80mm; Circular tube: Φ20mm~Φ120mm;Square tube: Φ20mm~80mm
Laser type	Fiber laser generator
Laser power(optional)	500~4000W
Transmission system	Double serve motor &gantry&rack&pinion
Maximum speed	±0.03mm/1000mm
Pipe cutting system(optional)	yes
Maximum speed	60m/min
Maximum accelerated speed	1.2G
Position accuracy	±0.03mm/1000mm
Reposition accuracy	±0.02mm/1000mm
Graphic format supported	CAD,DXF(etc)
Power supply	380V/50Hz/60Hz

Detailed Photos
Quality Inspection
Application
Fiber Laser Cutting Machine is widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters,Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc
Exhibition&Certifications
Company Profile
Founded in 2011,Ranling Intelligent Equipment Technology Co., LTD is a manufacturer specialized in the research development and production of laser cutting machines, laser welding machines and CNC Aluminum profile cutting machines for windows and doors. On the basis of technology development, we have taken in a group of experienced personnel who are talented in senior management marketing and skills of producing. We are located in Jinan Shandong province, one of the best professional machine industries in China. All the products are certificated by CE and comply with international quality standards and are greatly appreciated in a variety of different markets at home and at abroad.
CNC Fiber Laser Cutting Welding Machine for Metal
CNC Machine for Aluminum Profile Window and Door

After Sales Service
1. 1 year Guarantee for the whole machine. 2. 12 months Guarantee and free spare parts supply during this period. 3. 24 hours online service 4. 3-7 days lead time 5. We will provide the Instruction Book, Operational manual and Training Video 6. Provide technical support for the whole lifetime online 7. TT/Ali Trade Assurance payment
Packaging & Shipping
FAQ:
1.How to choose the right to for me? A : Tell us the following information
1) Metal material for welding: choose the most suitable model.
2) Laser welding metal material thickness: the power of the laser generator.
3) Line of business: We sell many products and advise on this line of business.
2.Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and after shipment we will give you CE/Packing
list/Commercial Invoice/ Sales contract for customs clearance.
3.If we want to learn how to operate the machine, Can you provide it?
A:Yes, we can. We can provide the online training by video. We also provide free training course in our company.
4.How to install and use it?
A:We have the instruction Book, Operational manual and Training Video inside the machine. We also can provide the training online by free
