Ultrasonic Transit-Time Flow Metering hand hold flow meters with high accuracy

Product Description

Product Description

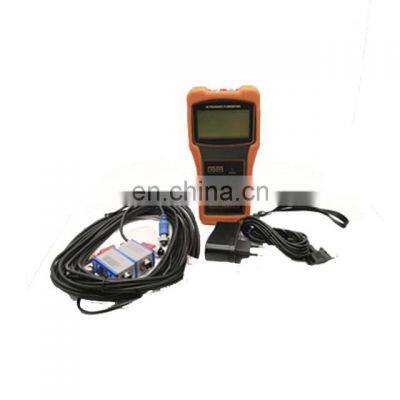

Product DescriptionLow Price Handheld ultrasonic flow meter ,TUF-2000H ultrasonic water flowmeterThe handheld ultrasonic flow meter is designed to work with clamp-on transducers to enable the flow of a liquid within a closed pipe to be measured accurately without needing to insert any mechanical parts through the pipe wall or protrude into the flow system.Using ultrasonic transit time techniques, the is controlled by a micro-processor system which contains a wide range of data that enables it to be used with pipes with an outside diameter ranging from 15mm up to 6000mm(depending on model) and constructed of almost any material. The instrument will also operate over a wide range of fluid temperatures.FeasuresHigh Accuracy measuring:Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy: better than ±1%Dimensions: 200×93×33mm; Weight:390gNon-intrusive measuring:Non-intrusive, clamp-on transducer, no pressure drop, no pipe disturbance.Wide measuring range:Several types transducer for selection, measuring pipe size from DN15mm to DN6000mmLarge LCD display:Display instantaneous flow, accumulated flow (positive, negative and net), velocity, working status Built-in data logger:Built-in 24K data logger, store over 2000 lines measuring dataSensor OptionHow to installCustomers FeedbackRelated productsTDS-100H Hand held ultrasonic flow meter TDS-100H handheld ultrasonic flowmeter for various industrial field in the liquid flow-line measurement of calibration and inspection. TDS-100M Modular ultrasonic flow meter TDS-100M Module Type Ultrasonic flow flow meter has 4 keys could modify the parameter. It can work alone without a LCD and Keypad module, the module can be used alone as a flow meter.TDS-100F fixed ultrasonic flow meterTDS-100F1fixed ultrasonic flow meter can operate with all our instruments transducer. Their electronic enclosures are rated as IP65,thus,can be installed for both indoor and outdoor.Packing & DeliveryContact UsDALIAN TAIJIA TECHNOLOGY CO.,LTDNO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, China E-mail:info at TEL:86-411-86737519Mob.:86 15541112235WhatsApp/Wechat/Zalo:+86 15541112235Web:
