Construction Passenger Hoist and Materials / Goods Hoist Driven in Rack and Pinion Hoist
| US$23,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SC200GD
Type
Construction Hoist /Building Hoist
Load Capacity
2T - 3T
Speed
40M/Min - 60M/Min
Usage
Construction Hoist
Sling Type
Rack and Pinion
Lift Drive / Actuation
Electric Motor
Lift Mechanism
Rack and Pinion
Attendant
With Attendant
Deceleration Device
With Deceleration Device
Elevator Door
Sider Door
Cage Size
3.2 X 1.5 X 2.2, 3.8 X 1.5 X 2.5
Motors
3X11kw, 2X16kw
Drive
Mod, VFD
Moving Type
Rack and Pinion
Mast Section
650X650X1508mm
Wall Tie
Type I -Type VI
Max Working Height
450m
Certification
CE, ISO9001: 2000
Transport Package
Container Sea Freight Packing
Specification
CE,
Trademark
ANKA
Origin
China
HS Code
8428
Production Capacity
300 Per Year
Product Description

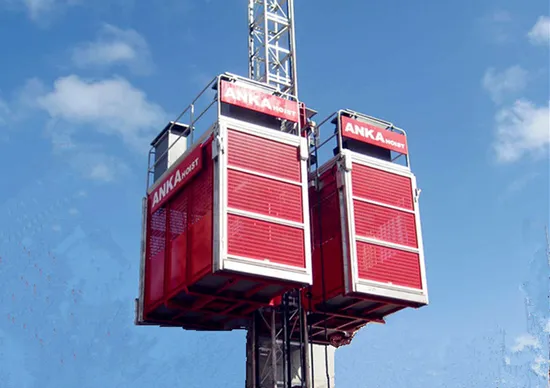

Construction Passenger hoist and Material / goods Hoist Driven in Rack and Pinion Passenger HoistDescription:
ANKA provides a whole serial passenger and material hoist in both single and twin cage to the customers, the capacity of cage ranges from 1000kg, 1200kg, 1500kg, 2000kg, 2700kg, to 3200kg, and with direct motor driven and frequency conversion driven to reach the speed of 36 m/min, 40 m/m, 63m/min and 96m/min, the maximum working height is up to 450 meters. And ANKA also provides the customized size of cage to satisfy the special demand from customers.
The electric components and the frequency converter are from International famous brand, bearing from SKF, Terminators from Phoenix. ANKA also provide the Germany Nord / SEW motor and gearbox for our customer's specific requirement.
With the advance facilities and skills, clean and environment-friendly workshop, ANKA manufactures the reliable, safe and high performance construction machinery and provide the high efficient vertical access solution for the global customers.
Applications:
Building construction, Residence construction, Bridge construction, Power station construction, Dam construction, Miner project, and etc.
Competitive Advantage:
International standardized design and production
High level quality control system
Reliable quality and very good finishing
Minimum maintenance job and cost in usage
Specifications:
| Model | Capacity (kg) | Lifting speed (m/min) | Motor power (kw) | Inverter power (kw) |
| SC200TD | 2000 | 36 | 3 x 11 | N |
| SC200GD | 2000 | 0-40 | 3 X 11 | 37 |
| SC200GZ | 2000 | 0-63 | 3x18.5 | 55 |
| SC270GZ | 2700 | 0-63 | 3x18.5 | 75 |
| SC200G | 2000 | 0-96 | 3x22 | 90 |
| SC270GS | 2700 | 0-96 | 3x30 | 110 |
| SC120/120GZ | 2x1200 | 0-63 | 2x3x15 | 2x45 |
| SC200/200GZ | 2x2000 | 0-63 | 2x3x18.5 | 2x55 |
| SC270/270GZ | 2x2700 | 0-63 | 2x3x18.5 | 2x75 |
| SC200/200G | 2x2000 | 0-96 | 2x3x22 | 2x90 |
