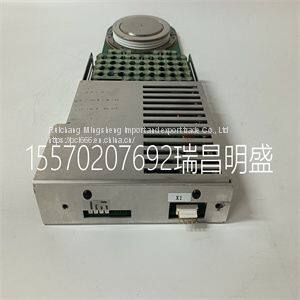

5SHY35L4520 5SXE10-0181 AC10272001R010

Product Details

Product Description

Product Description
Focus on DCS, PLC, robot control system and large servo system.
Main products: various modules / cards, controllers, touch screens, servo drivers.
Advantages: supply of imported original products, professional production parts,
Fast delivery, accurate delivery time,
The main brands include ABB Bailey, Ge / fuanc, Foxboro, Invensys Triconex, Bently, A-B Rockwell, Emerson, ovation, Motorola, xyvom, Honeywell, Rexroth, KUKA, Ni, Deif, Yokogawa, Woodward, Ryan, Schneider, Yaskawa, Moog, prosoft and other brands
5SHY35L4520 5SXE10-0181 AC10272001R010
Full-Automatic Sleeve Placket Setter Model U-3704-E Top Side Stitching System YUHO’s highly acclaimed Sleeve Placket Setter automatized the complex processes of folding and stitching, and covers a wide range of materials from dress shirts to casual shirts, to thin fabric blouses to thick knitwear. The brand-new U-3704-E incorporates newly developed Top Side Stitching System which guarantees superior quality 0.8 mm top stitches in conjunction with YUHO’s unique Bobbin Thread Reel technology (patented in Japan). Matching Plaid Thanks to the Top Side Stitching System, U-3704-E now allows users to visually check and adjust the matching of plaids. (Please note, matching plaid procedure is time-consuming and productivity may somewhat decrease.) Matching Plaid Mode turned on just by pressing [PLAID] on the LCD touch panel. At the first stage, sleeve cloth and placket cloth are adsorbed on a vacuum plate, and operators can check and adjust the matching of patterns. Operators can also double-check and readjust the patterns after the placket cloth has been folded. Positioning Assist by Marking Projectors Thanks to the newly equipped 3 x Marking Projector, loading/ setting materials will never be complicated. Stitching to hide raw edges at the back side of sleeve placket can be done precisely and automatically. This feature contributes to manufacturing value-added products at a low cost. Overlapping Workflow Place materials on the right side of the work space to begin folding. The machine will automatically transfer the materials to the left side and will start to stitch. Operators can continue placing materials and folding at the right side during stitching. Although U-3704-E is space efficient, it has wide working space (table size: 1,300 x 750 mm) with a 500 mm interval between the right and left work spaces, allowing for a comfortable working environment even with large sized materials. Materials are automatically piled up by stacker when the stitching process is completed. Auto-Switching of L/H and R/H Sleeves Just one set of U-3704-E covers both L/H and R/H sleeves—no need to have 2 sets. Users can instantly choose or change among 3 types of workflow: “L/H only”, “R/H only” and “Alternate L/H-R/H” just by pressing the LCD touch panel. No Iron Pressing Needed In the predecessor model, only one edge of the sleeve placket requires iron pressing (although other edges can be folded without iron pressing). YUHO succeeded in automatizing the entire folding process with no need for iron pressing in the latest U-3704-E. This model is advantageous for users that produce products using modern high-tech, heat-sensitive fabrics. The folding device can move up and down in order to cover a wide variety of fabrics with different thickness. U-3704-E accepts materials up to a maximum of 6 mm thickness (total of top and bottom plackets). LCD Touch Panel Secures Intuitive U/I Controlling U-3704-E is just under your fingertips. Switching left and right hand sleeves, as well as switching and modifying the stitch patterns and/or sizes can be performed instantly with the LCD touch panel. Stitch patterns are graphically displayed on the touch panel. Software ten-key numberpad appears onscreen when you touch the place you would like to change on the image. Just press the numeric key and the + or – key to edit patterns (adjustable in 0.1 mm). Up to 20 stitch patterns can be memorized and instantly recalled.
