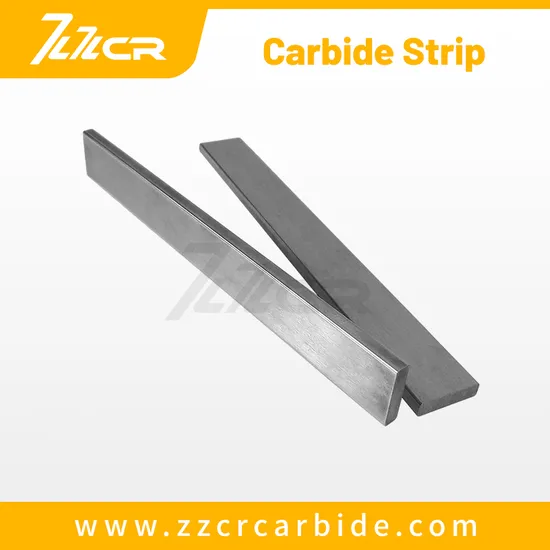

Zzcr Zhuzhou Factory Wholesale Finished Tungsten Carbide Strip

Product Description

Tungsten carbide strips are mainly made from wolfram carbide and cobalt powder by powder metallurgy methods. The main production process of tungsten carbide bar stock is powder milling, ball milling, pressing and sintering. For different uses, the content of WC and Co in tungsten carbide square bar is not the same. Solid carbide rectangular bar is mainly used to process gray cast iron, non-ferrous metal materials, chilled cast iron, hardened steel, PCB, brake materials, etc. Carbide flat bar can be further processed at clients' factory or workshop by wire cut, grinding, soldering.
ZZCR can produced various sizes of carbide strips,
length more than 1m is ok to produce.
ZZCR tungsten carbide strip's advantages:
1.Superior heat stability.
2.Anti-deformation in high temperature.
3.Fine thermal shock resistance.
4.High thermal conductivity.
5.Excellent Oxidation control ability.
6.Strong anti-corrosion in high temperature.
7.Good corrosion resistance from Chemical.
8.High-wearing feature.
9.Long usage lifetime.

There are various sizes of tungsten carbide strips for your reference below:

Thickness		Width		Length	Thickness		Width		Length
mm	mm Tolerance	mm	mm Tolerance	+1.5mm Tolerance	mm	mm Tolerance	mm	mm Tolerance	+1.5mm Tolerance
2	+0.3/0.1	3	+0.4/+0.2	310	3	+0.3/0.1	15	+0.6/+0.2	310
2	+0.3/0.1	4	+0.4/+0.2	310	3	+0.3/0.1	16	+0.6/+0.2	310
2	+0.3/0.1	5	+0.4/+0.2	310	3	+0.3/0.1	18	+0.6/+0.2	310
2	+0.3/0.1	6	+0.4/+0.2	310	3	+0.3/0.1	20	+0.6/+0.2	310
2	+0.3/0.1	8	+0.4/+0.2	310	3	+0.3/0.1	22	+0.6/+0.2	310
2	+0.3/0.1	10	+0.4/+0.2	310	3	+0.3/0.1	25	+0.6/+0.2	310
2	+0.3/0.1	12	+0.4/+0.2	310	3	+0.3/0.1	28	+0.6/+0.2	310
2	+0.3/0.1	14	+0.4/+0.2	310	3	+0.3/0.1	31	+0.6/+0.2	310
2	+0.3/0.1	15	+0.4/+0.2	310	4	+0.3/0.1	5	+0.6/+0.2	310
2	+0.3/0.1	16	+0.4/+0.2	310	4	+0.3/0.1	6	+0.6/+0.2	310
2	+0.3/0.1	18	+0.4/+0.2	310	4	+0.3/0.1	8	+0.6/+0.2	310
2	+0.3/0.1	19	+0.4/+0.2	310	4	+0.3/0.1	10	+0.6/+0.2	310
3	+0.3/0.1	3	+0.4/+0.2	310	4	+0.3/0.1	12	+0.6/+0.2	310
3	+0.3/0.1	4	+0.4/+0.2	310	4	+0.3/0.1	13	+0.6/+0.2	310
3	+0.3/0.1	5	+0.4/+0.2	310	4	+0.3/0.1	15	+0.6/+0.2	310
3	+0.3/0.1	6	+0.4/+0.2	310	4	+0.3/0.1	16	+0.6/+0.2	310
3	+0.3/0.1	8	+0.4/+0.2	310	4	+0.3/0.1	18	+0.6/+0.2	310
3	+0.3/0.1	9	+0.4/+0.2	310	4	+0.3/0.1	20	+0.6/+0.2	310
3	+0.3/0.1	10	+0.4/+0.2	310	4	+0.3/0.1	22	+0.6/+0.2	310
3	+0.3/0.1	11	+0.4/+0.2	310	4	+0.3/0.1	25	+0.6/+0.2	310
3	+0.3/0.1	12	+0.4/+0.2	310	4	+0.3/0.1	30	+0.6/+0.2	310
3	+0.3/0.1	13	+0.4/+0.2	310

Company Profile
Zhuzhou Chuangrui Cemented Carbide Co,, Ltd located in Zhuzhou City, Hunan Province, we locate in Zhuzhou City, Hunan Province, the "Hometown of Tungsten Carbide".Which is one of the professional manufacturers with the most varieties and the most complete specifications of hard alloy valve accessories. We have more than 15 years experience in the field of tungsten carbide, and also have a very strong and professional teams, most of them are high quality with high education. We are characterized by the production of highly difficult non-standard cemented carbide products, and also specialized in finishing various complex shapes of cemented carbide products. Our products have won unanimous praise from customers.
Our main products are: Cutting Tool series, Including tungsten carbide end mills, burrs, saw blades, wood-cutting tools and inserts; Wear Part series, Including tungsten carbide rods, plates, strips, balls, buttons, roller rings and grinding jars, etc; Chemical Industry Parts, Including tungsten carbide grinding rotors, dispersing discs, dynamic and static rings, pegs, turbos, etc.; Pump Valve Industry Parts, Including tungsten carbide valve seats, valve plates, shaft sleeves and valve sleeves, etc.; Oil and gas industry Parts, Including tungsten carbide rotor and stator, Petroleum Industry Parts, Including tungsten carbide nozzles, throttle plates, tungsten carbide wear-resistant blocks for centralizers, precision tungsten carbide wear-resistant parts for wireless logging-while-drilling tools, hydraulic jet nozzles for oil and gas layer cracking, and various other precision tungsten carbide molds and other products.
We adheres to the concept of "creating the future, forging ahead, and serving customers", with the business philosophy of: creating value for customers, and we hope to go hand in hand with customers in the future to create brilliance together.We have precision production and processing equipment and testing equipment, a strict quality inspection system, and has passed the l$09001:2015 quality management system certification, Our products have won the trust and support of over 2000 customers at domestic and abroad.
Welcome to contact us for any questions, we would like to reply you in 24 hours.
FAQ
Q1: What is your main products?
Carbide plate&strip, Carbide rod, Carbide ball, Carbide cutting tools, Carbide bushing, Carbide wear parts for oil&gas industry, Sand mill parts, Choke valve parts, Grinding wear parts, etc.
Q2: Do you provide free samples?
Yes, we could offer the sample free of charge but do not pay the cost of freight.
Q3: What is your delivery date?
We can arrange shipment within 5 working days for blank products, and for finished products and bulk order, we need about 15-25 working days.
Q4: How can you guarantee the quality?
We use 100% raw materials to produce your products, and we always have a pre-production sample before mass production,and strictly final Inspection before shipment. The material report from the third party as well as inspection report and product photos will send to you before delivery.
Q5: Can I negotiate the price?
Yes, we can consider the price according to your order quantity.
Q6: Why choose you?
We have more than 15 years experience to produce tungsten carbide products, especially good at making non-standard and big products. we have very experienced team who can not only provide very suitable material for you, but also can help to design the drawing according to your request to save your cost. We always insist on quality first, our company have strict rules to guarantee the quality in every step.
If you have any inquiry,Welcome to contact us for the details!
