IP20 576LEDs/M COB Strip COB Pixel Dream Color Strip Home Decor Living Room Magic RGB COB LED Strip

Product Description

IP20 576LEDs/M COB Strip COB Pixel Dream Color Strip Home Decor Living Room Magic RGB COB LED Strip
Product Parameters

Model No.	SCCOBC576Y3
PCB Width	8MM
LED Quantity	576leds/m
PCB materials	Double-sided pure copper board
Voltage(V)	24V DC
Rated Power(W)	10W/M
Luminous(lm/m)	1500lm/m
LED Chip Brand	Sanan(Epistar optional)
LEDs material	99.99% pure gold wire
LEDs Supplier	Honglitronic (For optional)
CRI(RA>)	CRI80(CRI 90 optional)
Color	RGB
Color Tempertature	2200K,2700K,3000K,3500K,4000K,6000K,7000K RGB
IP Rate	IP67 (IP20/IP65/IP68 optional)
View Angle	180°
Product Size(mm)	8*5000mm
Package(m/rol)	5M/roll(1m/roll,10m/roll Customized length available)
Working Temperature(ºC)	-20-60
Cutting Unit	62.5MM/ cuts
Adhesive Tape	9495 3000LSE 3M tape
Dimmable	Yes
Certificate	UL, CE, RoHS, FCC.
Warranty	2 Years

Our Advantages * High quality,energy conservation,environmental
* CE&ROHS & FCC&CCC&LVD&EMC
* High Quality,High brightness
* Low voltage is safer, low power is more energy efficient
* Can do different length
* With 3M adhesive tape back, easy for installation
* Your inquiry related that will be replied in 24 hours
* Well-trained and experienced staffs to help you to solve your problems
* Customized,we can customize what you want according to your needs (reach a certain quantities )

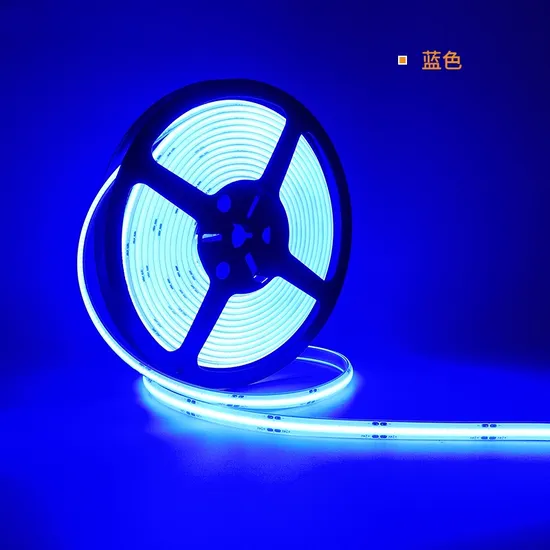

Detailed Photos
LED Strip Application 1. Can be used for home lighting,commecial lighting,etc...
2. Architectural lights for canopy, corridor, window, archway
3. Backlight or edge lighting for signage.
4. DIY lights for home using
5. Path and contour marking.
6. Decorative lights for holiday, event, show, exhibition.
7. Special light effect for art gallery and glass-made items.
Packaging & Shipping 1.Packaging: 5 meters/roll, box packing (132x132x15mm), 100 rolls per carton
2.Delivery time: Normally about 3-5 working days if less than 2000 meters.
3.If you have your own shipping way [ e.g. you have forwarder in China Mainland, or you have DHL Or FedEx
discount account, etc], then we can ship the parcel to your forwarder or call Express Company.
If you don't have your own shipping way, then we'd ship for you via our forwarder, and you only need pay
the shipping fee to us.
After Sales Service 1.We will send the technical material English version user manual, installation manual and maintenance manual Service
2. Provide free technology support by phone and e-mail
3. We provide training to replace the broken part
4. Two years guarantee: In guarantee period, we provide the free new part for replacing.
