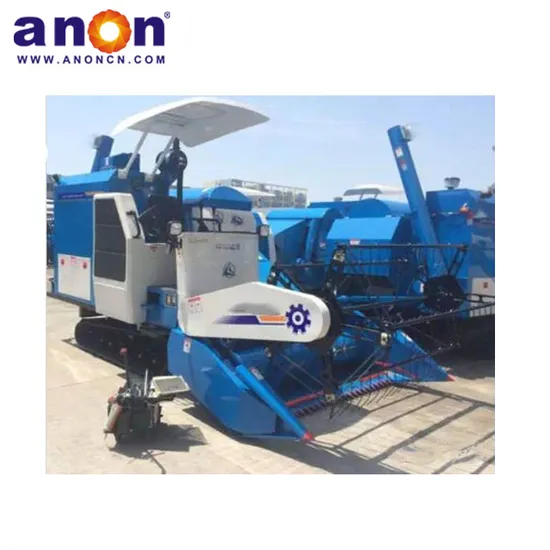

Anon New Type Factory Direct Supply Agriculture Machinery Self-Propelled Combine Harvester

Product Description

Anon New Type Factory Direct Supply Agriculture Machinery Self-Propelled Combine Harvester
Anon New Type Factory Direct Supply Agriculture Machinery Self-Propelled Combine Harvester
This machine is conjoined structure, convenient installation, with tire track, suitable for deep mud area, double harvesting cutter with high efficiency, low fuel consumption, outside circle structure to prevent weeding, clean threshing, less lost, big heave amplitude of cutting platform, and suitable for different height of paddy crop. Winnowing is not affected by the dew. It is the best choice for village household to harvest paddy and wheat in mountain and hilly area. It also has the advantages of clean winnowing, less paddy loss, compact structure, less faults, not affected by the dew. It can work under any climate condition.
Feature of Anon New Type Factory Direct Supply Agriculture Machinery Self-Propelled Combine Harvester
1.Combine harvester can be used to harvest wheat ,rice and paddy. It combines three functions:cutting, threshing and collecting grains into the bag.
2.This type of machine especially suitable for the mountainous and hilly region
3.The rice wheat combine harvester consists of scrabbling the grains feeder, cutter, delivery cylinder,threshing cylinder,sieve, grain convey screw, grain conveying outlet, wheels, engine, straw outlet .With small size, light, easy to operate.
Specification of Anon New Type Factory Direct Supply Agriculture Machinery Self-Propelled Combine Harvester

Model	AN4LZ-4.0B
Total losses(%)	Rice≤3.0 ,wheat≤1.2
lmpurity rate(%)	≤2.0
Breakage rate(%)	≤1.5
Reliability(%)	≥93
Cutting width(mm)	1600
Pure field capacity(ha/h)	0.17-0.40
Fuel consumption	8-10L/H
Structure Type	Full feeding,Self propelled,track
Track	350mm*90mm*46
Weigh(kg)	2350
Feed rate(t/h)	6.5
Dimensions at work, LxWxH(mm)	5150x2600x2675
Diesel engine horsepower(kw/rpm)	42/2800
Ground pressure(kpa)	≤24
Travel speeds	6 speeds forward,2 speeds backward
Mini.ground clearance(mm)	200
grain Tank	0.3m3 or 0.7m3
Cleaning type	Double sieves + blower + re-thresher
Grain unloading method	Sacked & Auto unloading

More detail of Anon New Type Factory Direct Supply Agriculture Machinery Self-Propelled Combine Harvester
1. Big grain tank 2.Tough rubber track for wet and muddy paddy field
3.Combined rice cutting and threshing in once machine
4.Different Cutting width for choosing
5. Easily operation and transportation
6.Thorough threshing
7.Clear separation
8.Low grain breakage
9.High grain cleanness
10.Good maneuverability in the wet and soft field
11.Quality engine with sufficient power reserve
12.Low vibration and low noise
