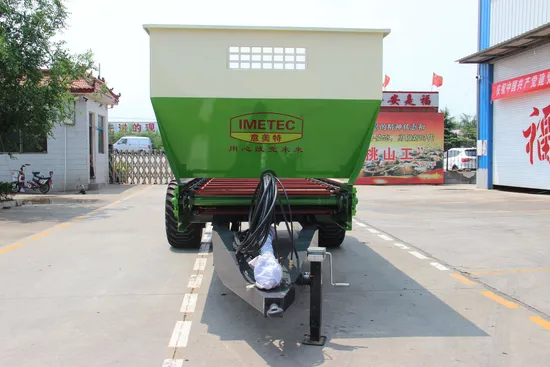

16cbm Solid Manure Spreader Cowdung Fertilizer Spreader for Agriculture and Farmland

Product Description

Product Description
Manure spreader for farms
The Manure Spreader is mainly used for livestock manure spreading in field, suitable for use in various large-scale farm fields, effective, uniform spreading and low cost.

Product Specifications:
we have three type:
1.Vehicle-mounted type: 3-20 cubic meters, disc or double-vertical auger can be customized
2. PTO disc type: 6-30 cubic meters can be customized
3. PTO double-vertical auger type: 6-30 cubic meters can be customized

Manure spreader feature:
1. Low Center of Gravity and High Efficiency
This vehicle features tires positioned on both sides of the compartment, with a platform height of 1150 mm. Its low center of gravity facilitates easy loading, ensuring high spreading efficiency, stable operation, and fast travel.
2. Even Distribution and Wide Spreading Range Equipped with two vertical spiral crushing and spreading rods, this manure spreader quickly and evenly disperses fertilizer to the rear. It boasts strong crushing capabilities and a spreading width of 8-12 meters, efficiently handling manure and sludge with up to 80% moisture content.
3. Excellent Adaptability with Ground Preservation The spreader's running mechanism employs a rigid half-axle independent suspension, allowing the double-bridge wheels to pivot independently according to terrain. Its wheelbase is tailored to ridge spacing, ensuring no delays in movement and preventing ground damage.
4. Large Capacity and Minimal Residual Volume The box features an inverted trapezoidal design for optimal fluidity and minimal material waste. The fence height can be increased by 200-350 mm, allowing for an additional 2-3 m³ of volume.
5. High-Quality Imported Gearbox and Transmission The auger fertilizer spreader is equipped with both an imported gearbox and transmission, ensuring superior quality and reliable performance.
6. Durable Crushing Blade and Conveyor Chain The crushing blade is crafted from wear-resistant boron steel, while the conveyor utilizes a high-strength mining round link chain for exceptional durability.

Product Parameters

MODEL	9GPS-16 Manure Spreader
CAPACITY	16m³
TYPE	Trailed
NECESSARY POWER REQUIRED	150 Hp-220Hp
METAL CUTTING	Laser
BOTTOM CHAIN	Special high strength brand Chains
CHAIN UNIT	2 Chains in 2 rows
ACTION	Hydraulic GearBox
FOOTS	Special strong Chassis
CHASSIS	Reinforcement connections
Wheels Type	600/55-26.5
Brake System	Hydraulic

SPREADING UNIT

ACTION TRANSMISSION	540 Rev/Min by PTO Shaft from Tractor
AUGERS	2 Unit Spreader Augers
DOOR	Sliding door For free the manure
COVER	Cover for close Augers during Road transport

Detailed Photos
Company Profile
IMETEC Intelligent Equipment (Shandong) Group Co., Ltd. is a national high-tech enterprise specializing in the production, R&D and export of intelligent equipment for dairy farms.Focusing on pasture intelligent equipment for 25 years, has won the Shandong Province, "Specialized, Specialized and New", science and technology-based small and medium-sized enterprises, the provincial livestock science and technology, the third prize, the Chinese dairy industry excellent supplier, a member of the China Agricultural Reclamation Union, selected by the CCTV "Brand Strong Preferred Demonstration Project". Vice president, executive and director of China Dairy Association, China Cattle Industry, China Sheep Industry, Inner Mongolia, Heilongjiang, Ningxia, Shandong and other dairy industry associations.
Comprehensively passed the IS09001:2015 international quality management system and the European Union CE certification, IMETEC trademark has passed the Madrid International Trademark Registration with the Ministry of Agriculture and Rural Affairs of Nanjing, Shandong Agricultural University, Shandong University, Shandong Agricultural Machinery Institute and other scientific research institutes, breakthroughs in foreign necks more than ten, currently has a total of 108 patents of invention, utility model, design, and lead the drafting of the industry standard two, four group standards. Industry standards two, four group standards. 2023 December 12 Chen Ping, vice governor of the province led a team to visit the Italian Meitei, at the same time, sure that the Italian Meitei in the animal husbandry industry, high-quality development, the full affirmation of the intelligent lead the future practice.
The products cover: from self-propelled full series of TMR feed mixing, leftover material collection, intelligent pushing, material throwing, manure return to the field, palletizing and crushing, etc. 8 categories of more than 200 models, four categories of 57 models of products, has entered the national agricultural machinery subsidies to promote the catalog.
Exhibition Photos
FAQ
Q: Are you manufacture
A: Yes,we are factory with more than 8 years of manufacturing experience .
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: What is your terms of delivery?
A:EXW, FOB,CFR, CIF.
Q: How about your delivery time?
A:Generally,it will take 7-10 working days after receiving your
Q: What is your terms of packing?
A:Generally, we use standard exported wooden case for LCL goods
Q: Do you test all your goods before delivery?
A:Yes, we have 100% test before delivery.
