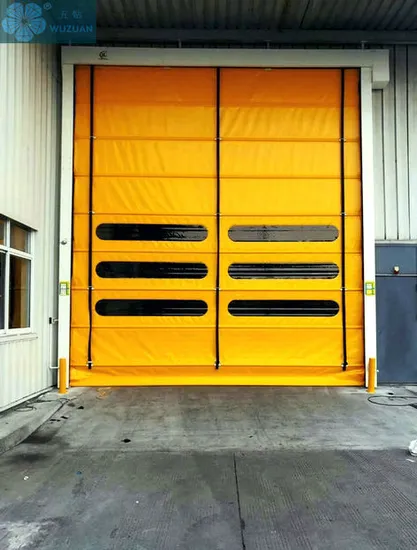

Industrial Automatic Big Size Wind Resistant High Speed Rapid Folding up Door for Factory Main Gate

Product Description

Industrial Automatic Big Size Wind Resistant High Speed Rapid Folding up Door for Factory Main Gate

PVC stacked industrial fast door adopts folding lifting method and multiple built-in horizontal anti-wind levers. Its wind pressure can be evenly distributed on the whole curtain. Its anti-wind performance is much higher than that of ordinary drum-type high speed doors, especially suitable for logistics channels and The large area of the hole, plug-in curtains are easier to remove and more convenient to maintain.
Features: This door is with excellent wind-resistant performance, fit for areas with big wind pressure and door hole sizes. Several high-strength aluminum rod is used to connect PVC fabric as a whole. When faced with big wind, such rods will offer big support. Special belt structure is adopted to lift door up and down by revolving roller. The advantage of Self Reparing High Speed Doors are self-reparing,easy to clean,complete safe,energy saving and so on. If the door curtain comes out of its guides(for example in the event of impact with a forklift),the system will reset the cutrain back intp the guide during the next opening cycle autimatically Features: Main box: It is made of high-quality cold-rolled steel plate or stainless steel, and is sprayed with static epoxy plastic grease. Chute: use high-quality high-strength anti-oxidation industrial aluminum alloy or high-quality cold-rolled steel plate, sprayed with electrostatic epoxy plastic grease on the outside; a layer of resin is coated on the inside. Curtain: High-density industrial base fabric for quick doors, with a thickness of 0.8-1.2mm, the fire rating reaches the European NF-P92-503 standard, a variety of colors such as yellow, blue, white or full transparency are available. Working temperature: -30. C ~ 70. C. Transparent window: The thickness of the fully transparent PVC film is 1.5, and the rectangle or oval can be selected, which increases the safety, transparency and aesthetics. Safety performance: Infrared radiation safety protection; manual rocker can be opened and closed during power outage, which is more safe and convenient. Sealing performance: The bottom end is equipped with a flexible PVC base cloth, which can be closely combined with various uneven floors. The interior is filled with cushioning materials to improve its durability. The door post is equipped with high sealing performance brushes to reduce noise and Increase the sealing effect. Power performance: high-frequency motor for fast door, three-phase 380V, 50HZ, IP55, power 0.75-2.0KW. Fast and efficient, low-noise new-generation transmission gear. Permitted frequency: 120 times / hour, 2 times / minute. Wind resistance coefficient: high speed roller door: 12Kg / m, Strap stacking high speed door: 60Kg / m. Optional accessories: infrared security system; geomagnetic induction system; radar induction system; remote control switch; window; frequency conversion control system, multi-door linkage control system, anti-collision bar, rope switch, signal light. Roll: The roll part of the cord is made of cold-rolled steel plate or aluminum alloy drum with a unique cut shape, which can effectively prevent the cord from bending and deforming due to the excessive width of the cord to ensure the safe operation of the cord. Curtain setting: The height of the curtain can be arbitrarily set to speed up the effective running speed of the curtain.
Technical Data:

Door curtain	Various cladding material for options:
	a.Plastic polyester fiber with PVC/PU/Silicone rubber/PolyYaan ester coating
	b.Resistance to low temperature curtain for -45ºC environment
	c.Soundproof door curtain for environment that need to be reduced or isolated from noise
	d.Heat preservation curtain for environment that prevent thermal radiation or chemical damage
	e.Safety curtain is for higher environmental safety requirement
Door Keel	Aluminum profile installed in the middle of door curtain to strengthen support
Guide Rail	Material: Aluminum
	Sealing design of the inner and outer surface of guide rail
Thickness of Door	100-160mm
Thickness of Curtain	0.8+0.8mm
Running Speed	0.2~0.3m/s
Running Temperature	-35ºC to +70ºC
Driving System	Motor and gearbox,220V/380V 50Hz, power:1.6-3.7kW
Control System	Control box with PLC:The running of the door can be achieved by pressing the button on the control box or using the radar or magnet ring control with optional controls
Optional Control	Radar,magnet ring,remote control,stretching wire switch,controller button,Interlocking
Hoisting System	The lifting belt around the pulley is connected with the safety clamp along the vertical track. The pulley is mounted on the brake reducer.
Waterproof Permeability	3 level, EN12425 (door closed state)
Wind Resistance	3-5 grade,EN 12424 varies according to the size of the door
Air Tightness	2grade,EN12426
Sealing	Bottom, side and top seal
Safety	Safety Photo Sensor
	Proximity Sensor
	sound-light alarm system
	Accident-fall arrester safety system

Brush:
Raw Material Show:
Open Ways:
Why Choose Us?

Customers satisfaction is our eternal goal. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
Over the years, our company has been working with the well-known manufacturers work closely with gated, has introduced the latest and most sophisticated production equipment of various volumes gate. The use of superior Quality raw materials and high-quality components, and adhere to the " excellence, precision production" product concept, to ensure the production of a variety of beautiful rolling door products Generous, easy operation, security, security, durability, quality assurance. We spirit of "honesty, quality first, customer first, service leader," the case Purpose, passion for the community to provide the safest customers the best a variety of roll gates, but also provide comprehensive maintenance service.

F A Q : 1,Are you trading company or manufacturer ? A: We are factory. 2. What's the payment details? Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. 3. What's the delivery time? For common order, about 15 days only. 4. What about the warranty for the doors? We provide 12 months warranty for all doors and accessories. 5. Do you provide OEM Service? Yes. OEM & ODM Service is ok for us. 6. What's the MOQ? We accept 1 set as sample order. 7. How about the package? Plywood case, suitable for sea freight or air freight, as your request.
