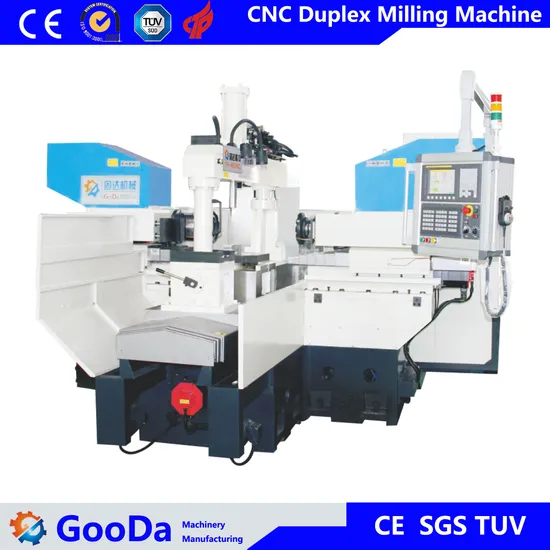

Gooda High Precision and High Efficiency CNC Twin-Head Milling Machine Th-460nc

Product Description

Achieve the main function:
CNC system once setting and automatic guides where work-piece loading place, automatic measurement, four- sides process, which can reduce working strength of operator and increase Productivity, maintain high accuracy for dimension, squareness and parallelism.
product features:
1. adopt the mature and leading FANUC system and servo motor of Fanuc in Japan,
2. The special operating software and operating system of CNC double-head milling machine, which was improved and designed by Guda mechanical technical team.
3.TH460NC CNC double-sided milling machine has the functions of fast clamping, automatic detection and positioning, data input at one time, automatic cutting and workpiece size scanning input.
4. Its machining accuracy is high, which is more than 4 times faster than the traditional industrial control milling machine. The whole machine has simplified functions and convenient operation, and can work without programming.
Specifications of TWIN-HEAD CNC MILLING MACHINE TH-460NC:

Items	Name	Specification
GOODA TWIN-HEAD CNC MILLING MACHINE TH-460NC		TH-460NC
Cutting capacity	Control axis number	4
	Cutting capacity mm	2*1.5
	Cutting width mm	20-460
Worktable	Dimensions mm	400*400
	Max loading weight	500
Spindle	Spindle speed(Infinitely variable speeds) rpm:	50-500
	Spindle power KW	2*7.5
	Spindle taper	NT50
	Cutting diameter mm	150/200
X axis	X/Y/Z axis motor power	2.5/2.5/3.0
Y axis	X/Y/Z Max feed speed m/min:	10000/10000/10000
Z axis	X/Y/Z Max cutting speed	6000/6000/6000
Accuracy	Squareness mm/300mm	0.015
	Accuracy for dimension mm/300mm	0.015
Tank capacity	Hydraulic oil tank L	80
	Lubrication oil tank L	3
Power	Power	AC415V/200 30KVA
Net weight	Machine net weight KG	8000

Configuration:

ITEM	SPECIFICATIONS	QUANTITY
Main	CNC Twin head milling machine NC Controller FANUC 0i-MD Model:TH-460NC	1 set
Standard configuration	1.Servo motor rotary worktable 2. Screw type automatic cleaning 3. Tools and tools car 4.Closed house sheet metal 5. Full set of cushion/clamp 6. Workpiece automatic measuring 7. 90˚Workpiece positioning device 8. Air pressure system, blowing and automatic measurement 9. Working Light 10. Working status indicator light 11. Air cooling system electric box 12. Hydraulic system, single hydraulic cylinder clamping 13. Man-machine conversation system, automatic protection, diagnosis, display	1 set 2 sets 1 set 1 set 23 pcs 1 set 1 set 1 set 1 set 1 set 1 set 1 set 1 set
Accessories	1. Face cutter 200mm (R&L) 2. Transformer (380V to 220V) 3. Scrap car	2 sets 1 set 1 set

Remark: 1. Packing: PE bag cover inside+ Plywood box + Steel beam frame. 2. Install and training salary: USD200/day/person. (2 person and 2 days) 3. Above offer without any commission. 4. Above offer without any import tax and local transportation charge. 5. Machine is equipped 45˚ chamfering function. 6. Foundation will be done by buyer. 7. English manual (installation/ operation/ maintain).

Detailed Photos:
The benefits of GOODA maintenance contract (After sales 3 years): Basic requirement in a certified QS system Guarantee for the accuracy of the measuring and test results Calibration, maintenance and, if necessary, repair with just one visit Fixed prices with a clear breakdown of costs Preventive maintenance helps you avoid expensive faults and ensures a high level of quality that lasts The maintenance contract includes: Travelling time and expenses for our technician Maintenance and calibration work Small items required for carrying out the specified maintenance work Calibration with a corresponding maintenance and test report, allowing the results to be used to demonstrate compliance with national standards About us:
FAQ:
1. What is your minimum order quantity and warranty?
MOQ is one set, and warranty is one year.
2.What CNC system do you use?
FANUC, SIEMENS, MISTSUBISHI etc. It depends on your choice.
3.When is the delivery time?
Conventional Machines,We will delivery then within 30-45 working days after received your
deposit,if some special machines will be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
Packing: PE bag cover inside+ Plywood box + Steel beam frame.
5.How can I choose the most suitable machines ?
Please let us know your machining demand or machine size ,we can choose the best model
for you , or you can choose the exact model by yourself. You can also send us the products
drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
FOB, CFR,CIF or others terms are all acceptable.
7. What is your payment terms ?
Payment Terms : T/T 30% advance , 70% before shipment IN GOODA ,THE FUTURE OF PROCESSING!
Your inquiry is welcomed at any time
