High Speed Honeycomb Paper Board Making Equipment

High Speed Honeycomb Paper Board Making Equipment

US$150,000.00-200,000.00 1 Set (MOQ)

Basic Info.

Model NO.
ZHGB-1600
Automation
Automatic
Suitable for
Paper
Paper Thickness
Thick Paper
Size
40000*2500*2000mm
Brand
Stm Honeycomb Board Machine
Funcation
Honeycomb Cardboard
Automatic
Yes
Way of Heating
by Electric
Power
135kw
Certificate
CE/RoHS/SGS
Original
Wuxi, China
Warranty
1 Year
Customized
Customized
Transport Package
Wooded Case, Strength Film, Corner Board
Specification
CE/ Rohs/SGS
Trademark
STM
Origin
Wuxi
Production Capacity
20 Set/Year

Product Description

We engaged in HONEYCOMB LAMINATING CORE AND CARDBOARD MACHINE, EDGEBOARD MACHINE, SLIP SHEET MACHINE, DUNNAGE BAG MACHINE, FLAT BOARD MACHINE, SLITTING MACHINE, etc, OEM is avaliable and welcome.
2016 Automatic Tpye Paper Honeycomb Board Making Machine
2016 Hot Sale Honeycomb Paper Board Equipment
Production Name
Automatic honeycomb laminating cardboard making machine
Packge & Delivery
1.Wooden case or transparent strength film and corner board to protect
2. Delivery time: 30-70days
Production Line
1.ENDLESS HONEYCOMB CORE:Paper Roll Setting--Feeding--Gluing & Alignment--Pressing & Hole Making--Core Gluing--Core Cutting--Stacking
2.LAMINATION:Paper Roll Setting--Core loading--Core Expanding & Heating--Gluing--Lamination & Cold Pressing--Lamination & Drying--Cold Pressing--Board Slitting--Board Cutting--Conveyor
3.PAPER HONEYCOMB PANEL in one process:Paper Roll Setting--Feeding--Gluing & Alignment--Pressing & Hole Making--Core Gluing--Core Cutting--Conveyor--Core Expanding & Heating--Gluing--Lamination & Cold Pressing--Lamination & Drying--Cold Pressing--Board Slitting--Board Cutting--Conveyor
Techinic Parameter
Min width: 1300mm/1600/1800/2000/2200mm
Max automatic cutting length:10m
Speed: 25m/min
weight: ≥120g/m
Thickness of honeycomb cardboard:5mm-100mm
Cutting accuracy:+ 1mm/min
Total power: 128kw(including heating part ), 80kw without heating
Moisture content: ≤14%
Way of heating: by electricity
Hydraulic pressure paper holder, controlled by air pressure
Mulilayer guling system for double sides to both core and surface paper
Advantage of HONEYCOMB CORE MACHINE
1.honeycomb machine adopts full Hydraulic shaftless paper holder, it is more convenient to operate; and it uses automotive-type disc brake structure which can stable control the tension. The overall uses of casting structure, the mechanical properties more stable.
2. high speed horizontal cutting honeycomb machine, which don't touch the gluing line while cutting, and the core paper feeding into cutter are stable. We use imported cutter which is durable, and imported high-precision rails which has high cutting precise.
3.The Synchronization cutting mechanism adopts servo tracing which has high cutting accuracy; it adopts Taiwan ball screw which makes the walking freely; By using imported high-precision rails, it can move flexible and cutting with high-precision.
Usage and Funcation
Brief Intruduction of US
Factoy locates in WUXI,CHINA, it is a new factory comes from ZHONGJIANTE enterprise, one is in wuxi for production base and one office in suzhou for sales center who' s quite near shanghai port. It is full of exporting experience paper packaging machine to JAPAN, DUBAI, FINLAN, BRAZIL.
Best quality and best service to be NO.1 and make the top one in the world.
Warranty
One year wanrranty, and whole life after sale service. 24 hours servie.
Main Products
Honeycomb machine, edgeboard machine, slitting machine, slip sheet machine, automatic dunnage bag machine, flat baord machine, gluing machine, corrugated machine,ect
Relevants products

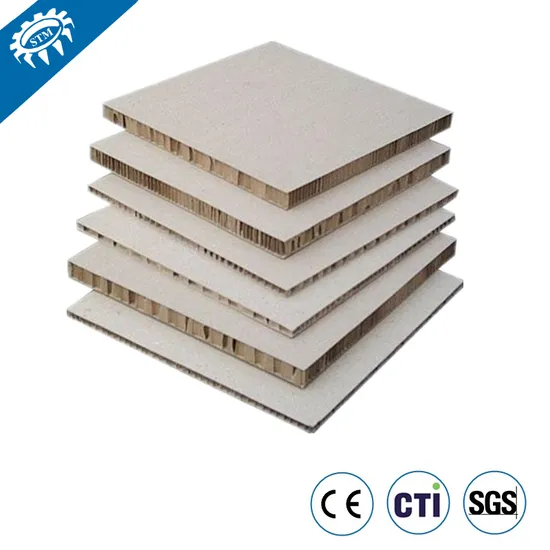

Honeycomb core, honeycomb cardboard, corner board, edgeboard protector, angle board, slip sheet, anti-slip sheet, flat board, dunnage bag, air bag.
