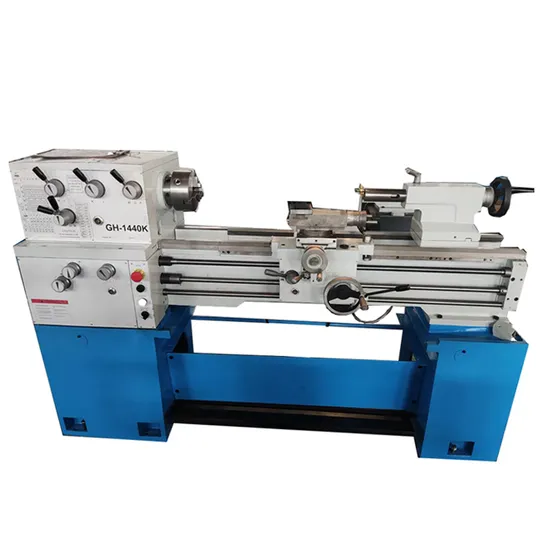

Horizontal Manual Gear Head Mini Gap Bed Metal Lathe Machine
| US$447.00 | 1 unit (MOQ) |
Basic Info.
Model NO.
GH1440K
Type
Horizontal Lathe
Processing Accessory
Centre CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Double-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Swing Over Bed
400mm
Swing Over Cross Slide
232mm
Max.Swing Over Gap
530mm
Width of Bed
260mm
Diameter of Spindle Hole
51mm
Distance Between Centers
1000mm
Spindle Nose
D4
Spindle Taper
Mt5
Spindle Speed
40-1800rpm, 12steps
Quill Diameter
45mm
Quill Travel
110mm
Main Motor
2.2kw
Coolant Motor
40W
Name
Horizontal Metal Manual Lathe
Quill Taper
Mt3
Transport Package
Wood Case
Specification
CE, ISO9001
Trademark
UNI-TECH
Origin
China
HS Code
84581900
Production Capacity
100sets/Month
Product Description
Horizontal Manual Gear Head Mini Gap Bed Metal Lathe machine1.Main features:
1) Hardened and ground bed ways.
2)12 speeds all geared head stock.
3)3HP(2.4kW)three phase motor.
4) Foot brake giving rapid braking.
5) Emergency stop button equipped on the front of headstock.
6) Jog button for easy gear engagement and inching spindle.
7) Extra safety switch shuts down machine automatically for changing belt or gear for threading cutting. 2.
2.Specifications:
| Specification | |||
| ITEMS | GH-1440K/GH1640K | ||
| General capacity | Max. swing over bed | mm | Φ 356(14" )/400mm |
| Max. swing over slide | mm | Φ 210(8-1/5" )/232mm | |
| Max. swing in gap | mm | Φ 508(20" )/530mm | |
| Width of bed | mm | 260(10-1/5" ) | |
| Max. Length of workpiece | mm | 750(30" )/1000(40" ) | |
| Main spindle | Taper of spindle bore | M. T. No. 5 | |
| Diameter of spindle hole | mm | Φ 40(1-1/2" )/51mm | |
| Number of spindle speeds | 12 | ||
| Range of spindle speeds | 40-1800 | ||
| Spindle nose | D1-4 | ||
| Threading & Feeding | Metric pitch threads | mm | 0.4-7(37kinds) 0.45-7.5(23kinds) |
| Whit-worth threads | TPI | 4-56(28kinds) 4-112(40kinds) | |
| Range of longitudinal feeds | mm | 0.043-0.653(0.0012" -0.0294" rev) | |
| Range of cross feeds | mm | 0.024-0.359(0.0004" -0.0103" rev) | |
| Leadscrew | Diameter of leadscrew | mm | Φ 22(7/8" ) |
| Pitch threads of leadscrew | mm | 4mm or 8T. P. I | |
| Tailstock | Travel of tailstock quill | mm | 120(4-3/4" ) |
| Diameter of tailstock quill | mm | Φ 45(1-25/32" ) | |
| Taper hole of tailstock quill | M. T. No. 3 | ||
| Power | Power of main motor | 2.4Kw(3HP), 3Ph, 4P, 60Hz, 230V | |
| Coolant pump motor power | kW | 0.04(0.055HP) | |
| Overall dimensions (L× W× H) | mm | 1900× 710× 1170 | |
| Packing size of lathe (L× W× H) | mm | 1900× 760× 1435 | |
| Net weight | kg | 1250(2750 lbs) | |
| Gross weight | kg | 1380(3040 lbs) | |
3.Standard accessories:
3JAW CHUCK, 4JAW CHUCK, FACE PLATE, STEADY REST, FOLLOWING REST, COOLANT, WORK LIGHT, WRENCHES.
4.Optional accessories:
DRO
QUICK CHANGE TOOLPOST
TAPER TURNING
5.Other informations:
Packing: wooden case.
Delivery time: 40~45 days after down payment.
Payment terms: 30% down payment as ordering; 70% T.T. after BL copy.
