Sga3063ah Automatic Cylindrical Grinder Machine

Product Description

Product Description

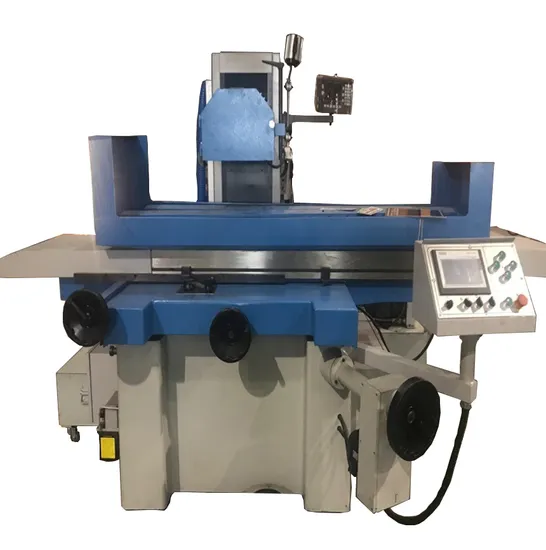

SGA3063AH Automatic Cylindrical Grinder Machine
The machine adopts the cross plate layout, and the transverse guide rail is attached with a Teflon foot belt. A closed hydraulic system is adopted for the movement of the worktable. The forward and backward feed can be manually fed or the screw can be driven by the motor to automatically feed intermittently. The downward movement of the grinding head can be achieved by using the lifting motor for quick lifting(AHR) or the servo motor for quick lifting and automatic feeding(AHD), which can also be accomplished manually. The machine adopts precise angular contact rolling bearing, a high rigid sleeve structure, the overall quality of the machine is stable, smooth operation.
Feature
1- Designed for continuous operation at maximum speed, very quiet operation, maximum accuracy, and
2- minimal heat accumulation ensures optimum machining results
3- Grinding spindle runs in maintenance-free preloaded precision angular ball bearings4- Automatic transverse and longitudinal feed
5- Rapid feed for setup to desired work height(HFS VC)
6- Adjustable roughing, finishing, and spark-out strokes hydraulic longitudinal table movement on Y-axis(HFS VC)
7- Double table V-guide in the transverse table, V-guide and flat guides in longitudinal
8- table guideways are hardened, ground and PTFE counter laminated-ensuring maximum wear resistance
9- High table load capacity for heavy parts The external hydraulic unit ensures high-temperature stability Automatic central lubrication
Product Parameters

MODEL		Unit	SGA3063AH/AHR/AHD
Table size(W x L)		mm	305x635
Max longitudinal travel		mm	765
Max cross travel		mm	340
Max distance from spindle center to table		mm	580
Electromagnetic chuck size		mm	300x600
Speed of table longitudinal movement		m/min	5-25
Table transverse movement	Auto-feed	mm/min	0.1-8
	Rapid speed	mm/min	990
	Feed of handwheel	Mm/div	0.02
Wheelhead vertical movement	Auto-feed	mm	0.005-0.05(AHD)
	Rapid speed	Mm/min	650(AHR) 480(AHD)
	Feed of handwheel	Mm/div	0.005
Grinding wheel	speed	rpm	1450(50Hz) 1750(60Hz)
	size	mm	350x40x127
Spindle motor		kW	4
Max loading capacity of the table		KG	270
Gross weight		kg	2900
Package dimensions(L x W x H)		mm	2350x2220x2150
