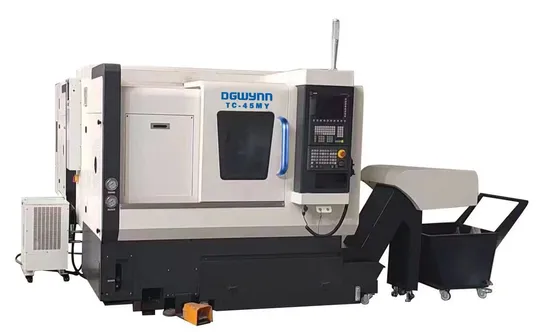

Lathe Tool High Precision Machine Tc-45 Metal Milling Machine

Product Description

Product Description
TC - 45 OWNS HIGH RIGIDITY,HIGH PRECISION FRAME DESIGN.
Our Machine Center is One-piece main body,low gravity 30 degree slant bed provide spindle and turret stable
accuracy.
Through FEM analysis optimize machine structure design, maintain stable rigidity duringnheavy duty cutting,
also guaranty high accuracyand longer tool life.
All machine main body adopt FC30 Mihanna iron casting with stiffener to enhance machine structure, heat
balance design satisfy long time machining requirement. FC30 iron casting also effective reduce vibration and prevent
machine deformation.
X axis and Z axis driven by AC servo motors, provide powerful feed rate and acceleration and deceleration movement precision control. Absolute coordinate encoder instead limited switch, avoid limited switch damage also save time from needless zero point return when machine turn on.
Detailed Photos
Product Parameters
PRODUCT SPECIFICATION

Item	Describe	TC-45A	TC-45D	TC-45M	TC-45MY	Unit
Ability	Max. swing over bed	Ø460	Ø560			mm
	Swing over saddle	Ø99	Ø300			mm
	Max. tuming length	290	280	245	230	mm
	Max. tuming Dia.	Ø450	Ø330	Ø280	Ø300	mm
	Max. bar size	collet: Ø42				mm
		chuck: Ø45
X/Y/Z Stroke	X axis stroke	400	190 (170+20)	190 (170+20)	255 (150+105)	mm
	Z axis stroke	290	320	300	265	mm
	Y axis stroke				70 ( ± 35 )	mm
	Rapid Feed Rate	30	24			m/min
Turret	Turret Driven Method	row knife	Servo knife tower	impetus knife tower	impetus knife tower	SET
	Tool Qty.	7	12	12	12	A
	Milling Spindle Speed			5000		rpm
Spindle	Spindle nose		A2-5
	Spindle through hole Dia.		Ø56			mm
Control System	NC controller	Siemens - 828D				A
	Spindle motor power	15 ( 110Nm / opt: 140Nm )				kw
	Spindle Speed	5000(opt:4000)				rpm
	X/Z Servo Motors	2.29	3.3			kw
	Y Axis Servo Motors				2.29	kw
Dimensions	L × W × H	2300*1710*1900				mm
	Weight	About 2.9	about 3.5			Ton

Type & Scope of Processing
