LPG Storage Tank 60cbm for Storage of Liquefied Petroleum Gas (propane) Propylene Ammonia

Product Description

LPG Storage Tank 60cbm for Storage of Liquefied Petroleum Gas (propane) Propylene Ammonia
Product Description
LPG gas tank is a professional product for the storage of liquefied petroleum gas. It is special equipment, the kinds of pressure vessels, Q345R material, after testing, water pressure and pressure test, technical supervision and inspection of the scene, issued a pressure vessel inspection certificate. All LPG gas tanks adopt pneumatic sandblasting rust removal technology, and the appearance quality and paint quality are guaranteed.
All of our tanks are brand new. After the construction of the LPG storage tank, we will do a nondestructive examination, air-tight test, water pressure test, hydro-static test X-ray weld inspection heat treatment, etc. And we will provide a test certificate.
Tank service life is more than 20 years.
Design Standard:
ASME BPVC VIII-1 2017 ; NB/T47042-2014 GB/T150-2011 TSG 21-2016
Vessel Capacity:
0.5m3~1000m3
Main Material:
SA-516, SA-612,Q370R etc.
Product Parameters

OTHER DATA CAN BE CUSTOMERIZED BY NEED. PLEASE CONTA
https://jshuayan.en.made-in-china.com/contact-info.html

I.Chinese Standard
Capacity	Diameter x Height x Length	Tank Weight	Payload	Thickness
10m3	φ1600×2370×5300mm	3400kg	4035kg	Shell 8.53mm/Head 8.51mm
20m3	φ2200×2970×5680mm	5150kg	8070kg	Shell 11.35mm/Head 11.33mm
32m3	φ2200×2970×8850mm	7200kg	12920kg
40m3	φ2470×3240×8843mm	8780kg	16410kg	Shell 12.62mm/Head 12.59mm
50m3	φ2470×3240×10903mm	10420kg	20180kg
63m3	φ2470×3240×13623mm	12600kg	25420kg
80m3	φ3100×3800×11170mm	16700kg	32280kg	Shell 15.58mm/Head 15.87mm
100m3	φ3100×3800×13850mm	20000kg	40350kg
120m3	φ3400×4104×13840mm	24500kg	48400kg	Shell 17.35mm/Head 17.31mm
150m3	φ3400×4104×17140mm	29800kg	60500kg
200m3	φ3800×4560×18324mm	40100kg	80700kg	Shell 19.27mm/Head 19.22mm

Main Material	Q345R	Design Pressure	1.61Mpa
Hydraulic Test Pressure	2.22Mpa	Working Pressure	≤1.61Mpa
Corrosion Allowance	1mm	Design Temperature	-20~50ºC
Life Expectancy	20years	Working Temperature	-20~50ºC

II.ASME Standard
Capacity	Diameter x Height x Length	Tank Weight	Payload	Thickness
10m3	φ1600×2440×5308mm	3850kg	4630kg	Shell 11.09mm/Head 11.02mm
20m3	φ2200×3050×5690mm	6920kg	9260kg	Shell 14.86mm/Head 14.78mm
32m3	φ2200×3050×8860mm	9750kg	14820kg
40m3	φ2470×3320×8851mm	11930kg	18530kg	Shell 16.56mm/Head 16.47mm
50m3	φ2470×3320×10911mm	15420kg	25470kg
60m3	φ2470×3320×13001mm	16600kg	27790kg
80m3	φ3100×3960×11178mm	22820kg	37060kg	Shell 20.53mm/Head 20.41mm
100m3	φ3100×3960×13858mm	27430kg	46320kg
120m3	φ3200×3542×16100mm	26100kg	51000kg	Shell 20.14mm/Head 10.07mm
150m3	φ3300×4210×18158mm	39930kg	69480kg	Shell 21.79mm/Head 21.66mm

Main Material	SA-516 Gr.70	Design Pressure	1.724Mpa
Hydraulic Test Pressure	2.25Mpa	Working Pressure	≤1.724Mpa
Corrosion Allowance	1mm	Design Temperature	50ºC
Specific Gravity	0.545@15ºC	Working Temperature	-20~50ºC

Underground LPG Storage Tank

Chinese GB Standard
Water Capacity	Inner Diameter	Overall Length	Height	Weight	Payload (90% Filling Ratio)	Thickness
						Shell	Heads
7m³	1200mm	6560mm	2430mm	3100kg	2820kg	7.5mm	6.64mm
10m³	1600mm	5300mm	2870mm	3800kg	4035kg	8.53mm	8.51mm
20m³	2000mm	6800mm	3290mm	5900kg	8070kg	10.41mm	10.39mm
25m³	2200mm	7000mm	3484mm	6300kg	10090kg	11.36mm	11.33mm
50m³	2470mm	10903mm	3756mm	11220kg	20180kg	12.62mm	12.59mm

Main Material	Q345R	Design Pressure	1.61MPa
Hydraulic Test Pressure	2.22MPa	Working Pressure	≤1.61MPa
Corrosion Allowance	1.0mm	Design Temperature	-20/50ºC
Life Expectancy	20 years	Working Temperature	-20/50ºC

LPG Mounded Tank

ASME Standard
Water Capacity	Inner Diameter	Overall Length	Height	Weight	Payload (90% Filling Ratio)	Material	Design Pressure	Thickness
								Shell	Heads
22m³	2000mm	7420mm	2774mm	6200kg	8876kg	Q345R	1.61MPa	11.56mm	10.47mm
98.5m³	3500mm	11588mm	3548mm	25100kg	47073kg	SA-516 GR.70	1.724MPa	23.05mm	13.21mm
124m³	3450mm	14410mm	5140mm	26500kg	60890kg		1.38MPa	18.98mm	10.28mm

Detailed Photos

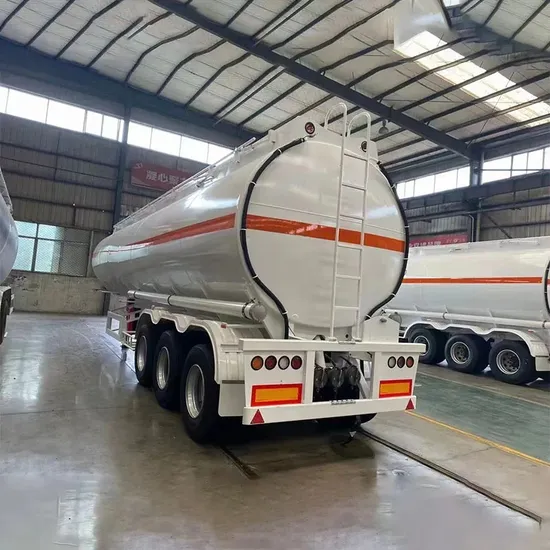

The loading part structure of a tank semi-trailer is a tank structure, which is mainly used to transport liquid, bulk materials bulk cement, and other materials. According to the different goods pulled, the tank truck series can be divided into concrete mixing trucks, tanker trucks, powder materials and bulk cement trucks, water supply trucks, etc., there are many types.
.
Liquid tanks are used for transporting liquids such as fuel, water, chemicals, acids alcohol etc. The tank material can be fiberglass, carbon steel, stainless steel, or aluminum per customer requirement.

Company Profile
Our factory has a professional technical team and advanced welding technology. Owing to the advanced technology, we have dedicated factory units and professional technicians responsible for the whole manufacturing process. Having more than 20 years of experience, we guarantee the highest quality by having control and supervision over every single detail.
Advantage1. Large filling capacity, lightweight, cost-effective;2. High safety: the bottle material is good plastic toughness, uniform force, and reasonable stress distribution;3. Good fatigue resistance: the use of finite element fatigue analysis and design, to ensure the good fatigue resistance of the equipment;4. Both ends of the bottle body are provided with a safety discharge device. In case of abnormal working conditions such asoverpressure and fire, the safety discharge device will work automatically to ensure the safety of property and personnel.
FAQ
1. What is your daily production capacity?
Our production capacity every year is 800~1000 units.
2. What products you can provide
We specialize in producing LPG cylinders, LNG cylinders, Cryogenic Liquid Storage tanks (LO2, LN2, LAr, LCO2, and LNG), etc. Any interests you can feel to contact us for details. Thanks. 3. May I have the best price from you?
Sure. We are always on the way to promoting our competitiveness in product price and service. 4. Do you provide a one-stop service so I can save my time and labor? You will own a professional team in China by cooperating with HUAYAN 5. What's The Time For Delivery & Arrival?
If the Standard Model We Have In Stock Can Ship It Out Within 10 -15 days After Payment.
If It Customizes, Ordinary Cases In 15-20 days Can Be Finished For Shipment.
