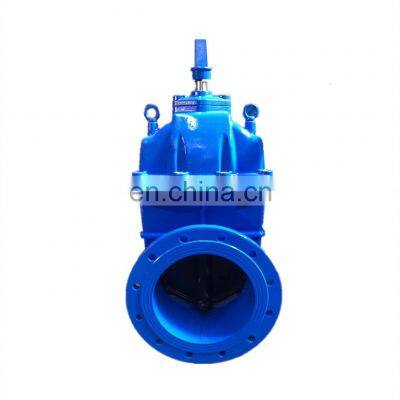

High-end Technology Manufacturing Blue Cast Iron Knife Gate Valve Pneumatic

Product Description

Product Description
6 inch cast iron resilient seated different type of gate valveBody:Ductile Iron GGG50(EN-GJS-500-7) DIN EN 1563(DIN 1693)Bonnet:Ductile Iron GGG50(EN-GJS-500-7)DIN EN 1563(DIN 1693)Gland:Ductile Iron GGG50(EN-GJS-500-7)DIN EN 1563(DIN 1693)Gate:Ductile Iron GGG50(EN-GJS-500-7)DIN EN 1563(DIN 1693)Gate covering:Completely covered internally and externally with elastomer EPDMBonnet gasket:EPDMOrings:EPDMStem:Stainless steelStem Nut:BrassBolts:Stainless steelPaiting:Epoxy Pipe Connect: UNE EN1452-2 /ISO4422 Nominal pressure: 0.6, 1.0, 1.6 and 2.5MPa (150lb)Nominal diameter: 50 to 1,200mmTemperature: -38 to 650°C (range of temperature subject to the material of sealing and property of medium)Connecting flange: ANSI B16.5, GB/T9113, JB/T79, HG, SH, JIS, DIN, NF and BSMain materials: WCB, ZG1Cr18Ni9Ti CF8, CF8M, CF3, CF3M and 2520Seal type: hard and softAccessory: flange ,solenoid valveHigh-quality, full-port designCompact, Low ProfileLeak-proof elastomer packing glandpneumatic systems to deliver optimum control. This compact valve is highly resistant to chemical and corrosive flow. Company Information Dalian ruici industrial co. LTDFounded in 2005, the company was founded in 1984.Is a specialized in metal products manufacturing enterprises.It mainly produces the OED and ODM products according to customer's requirements. We mainly engaged in steel, stainless steel, copper, aluminum and zinc alloy products casting, forging, stamping and machining.Application fields include: petrochemical, engineering, Marine industry castings: such as impeller, pump, valve, floor drain, flange;Transmission machinery parts;Kitchen and food industry castings;Auto parts;Agricultural machinery parts, etc.Certification FAQQ1. What is your payment term? A: T/T 30% down payment, balance to be paid before shipment. or L/C. Q2: What is your main market?A: Western Europe, North America, Janpan,, Q3: Can I get samples from your factory?A: Yes, sample is free, but the express charge is yours. Q4: If products have some quality problem, how would you deal with?A: We will responsible for all the quality problems.Q5.Are you manufacturer or trading company?A.We are manufacture(cast iron) and trade company. Q6. what’s the payment term? A. We accept T/T, L/C,WESTERN UNION Q7. What’s the delivery time ? Pattern needs 30-60 days, sample need 30-50 days. The first order need 60 daysQ8. What is the standard of package? A. Export standard package or special package according to customer requirement. Q9. Do you accept OEM business?A. Yes, we are OEM supplier. Q10. what kind of certificate you have ? A .We have ISO9001, ISO14001,PED
