Chtxq690f Diamond Multi-Wire Saw Cutting Machine for Magnets Optical Glass Processing Tool

Product Description

Equipment Use: Specially engineered for optimal cutting efficiency, this model boasts a substantial roller length of 690mm and is built with a table size of 170/145mm*690mm*160mm*2. It excels at slicing products within a thickness range of 0.3mm to 65mm, making it an ideal choice for precise cutting applications.
CHTXQ-690F Double Plate Multi-Wire Cutting Machine Product Features
1. Powered by four independently driven motors managing four rollers, this design significantly minimizes steel line wear while enhancing roller lifespan. Precision-engineered roller bracket mounting holes ensure perfect alignment of the spindle for seamless operation.
2. Equipped with an LED display, this machine delivers cutting data that is both precise and easy to interpret.
3. Unique bottom-up material feeding facilitates effortless loading and unloading, perfectly streamlining the entire cutting process.
4. Available in both high-speed and standard models, the high-speed version offers enhanced line speed and cutting efficiency, allowing for the use of finer diamond lines.
5. Featuring transverse movement capability, the versatile table can move back and forth, enabling tile cutting along with a single-line cutting function.
6. With an expansive loading area of 170/145mm*690mm*160mm*2, this machine dramatically boosts cutting efficiency.
7. The spindle precision is maintained at ≤0.01mm. Its patented dust-proof structural design (Patent No. ZL201320681902.7) ensures stability and ease of maintenance.
8. User-friendly and efficient, this machine features an automatic lifting shield and a fully expanded workbench, simplifying material and roll handling.

	unit	parameter
Maximum Worksize	mm	170/145*690*160*2
cutting thickness	mm	0.6~65
running speed	m/min	0~2200
Table lift stroke	mm	220
Table cutting feed speed	mm/hour	0.1~100
The amount of wire output from the supply wheel	Km	30(φ0.2diamond wire)
Diamond diameter	mm	φ0.06~φ0.35axle
Roller outside diameter*number of axles	mm	φ155/φ180*690*4
boundary dimension	mm	≈1830*2800*2650
machine weight	Kg	6500~115000
power		AC380V/50HZ three-phase four-wire
Total machine power rating	Kw	54 above

This advanced double-station multi-wire cutting machine is equipped with diamond wire processing capabilities, empowering users to process two plate materials per cycle. It features a roller length of 690mm and a cutting area of 220mm*690mm*160mm*2. The rotary tool holder enables cutting blade thicknesses from 0.5mm to 65mm, offering both single-line and multi-line cutting for hard and brittle materials.
This model is designed as a multi-line cutting machine with diamond line processing, featuring a roller length of 570mm and a maximum cutting area of 220mm*570mm*160mm. Its rotary tool holder is perfect for cutting products with thicknesses ranging from 0.3mm to 65mm, making it ideal for bulk processing of hard and brittle sheets.
This compact multi-line cutting machine, available in both single and double station models, is expertly crafted for small batch straight sheet processing. Its adaptability makes specification changes quick and easy, accommodating cutting sheet thicknesses from 0.5mm to 30mm, and supporting both single and multi-line functions for small batches of hard and brittle materials.

>Stable Wire Web Control
Revolutionary cone-positioned rollers and wire spools ensure exceptional accuracy and rigidity, significantly reducing wire web oscillation.
>Optimized Pulley System
An innovative 8-pulley design effectively minimizes diamond wire torsion, tension fluctuation, and breakage rates, ensuring consistent performance.
>Easy Wire Winding
The wire pay-off wheel utilizes a universal PV600 reinforced I-wheel spool, eliminating the need for rewinding, for effortless wire management.
>Safety Guarantee
The main operation door, complete with an electric lift and safety mechanism, provides a robust safety assurance.
>Wire Break Memory System
>Easy Operation

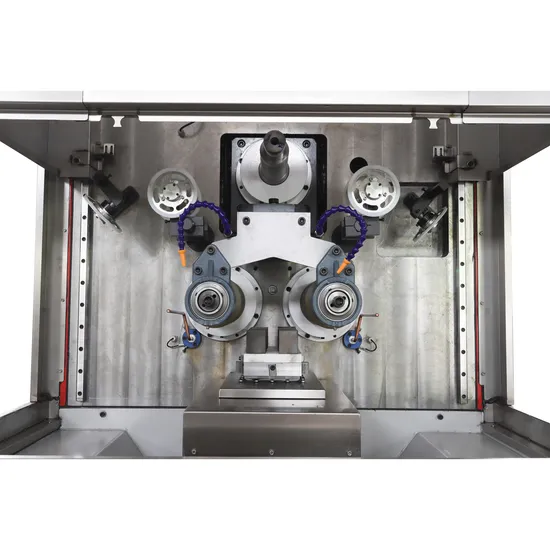

Open on three sides, the cutting room design facilitates straightforward operation and straightforward maintenance access.
