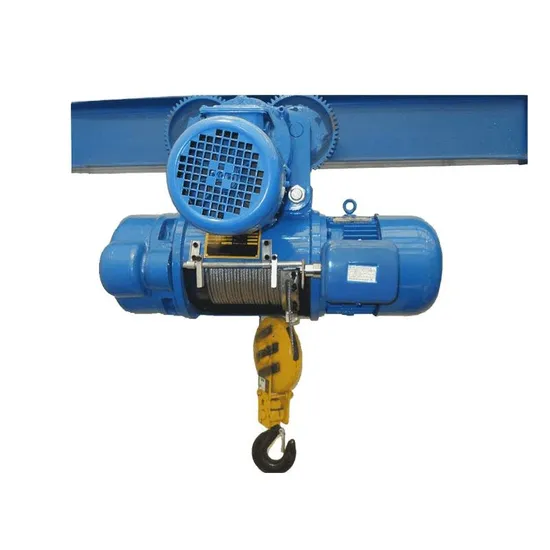

High Quality Electric Wire Rope Hoist

Product Description

Anti-stripping drum, double flange: it is characterized in that the flange of the reducer and the flange of the motor corresponding to the outer wall of the two ends of the drum are respectively provided with a ring of abrupt platform, the clearance between the abrupt platform and the drum is less than the diameter of a traction rope. With cooling device, with loss of pressure protection Double flange anti - release drum, thickened drum The outer housing is thickened steel plate The rope guide is thickened and widened
Wire rope electric hoists are widely used and very popular among user because of their characteristics of tight structure, smart body, safety and reliability, common-used parts, well changeable property, strong lifting capacity as well as convenient maintenance.
The hoists exist in form of stationary Style and crab-style. The former is divided into four styles that is, A1, A2, A3, and A4 according to the position (up, down, left, and right) of the fixed trestle. It can be installed directly on the frame. The latter with movable function can be installed on the track. CD1 model lifts with single speed, and MD1 model not only with usual speed but also with low speed.
On such a basis, single speed and double speed hoist and WH164 20t, 32t are developed by our technicians. They share the same structure principles and installation ways with the original CD1 and MD1. The following contents all take CD1 and MD1for example.
In addition, your special needs shall be met and non-standard hoists shall be manufactured.
Product Parameters

Model	0.25TON	0.5TON	1TON	2TON	3TON	5TON	10TON
Capacity ton	0.25	0.5	1	2	3	5	10
Standard lift m	3-9	6-12	6-30	6-30	6-30	6-30	6-30
Lifting Height m/min	88/0.8	88/0.8	88/0.8	88/0.8	88/0.8	88/0.8	77/0.7
Running Speed m/min	20/30
Wire Rope type	6*19-3.6	6*37-4.8-180	6*37-7.4-180	6*37-11-15	6*37-13-170	6*37-15-200	6*37-15-200
I beam track type	16-22b	16-28b	16-28b	20a-32c	20a-32c	25a-63c	28a-63c
Loop track minimum Radius m	0.8	1.5	1.5-4	2-4	2-4	2.5-5	3.5-9
Voltage V	380	380	380	380	380	380	380
Frequency HZ	50	50	50	50	50	50	50
Phase	3	3	3	3	3	3	3

Detailed Photos
