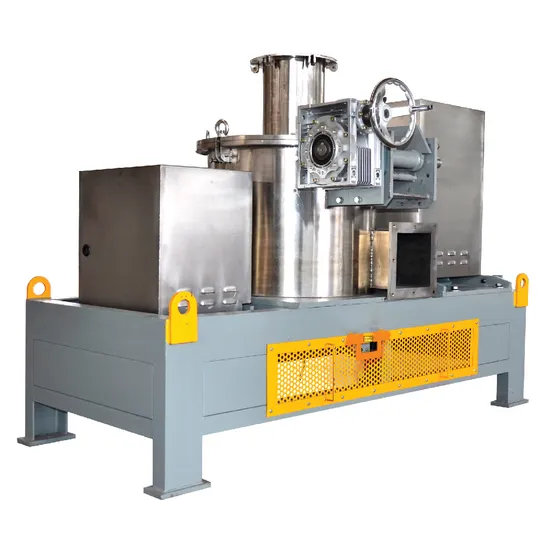

Ultrafine Grinding CSM-VD Air Classifying Mill
Widely used in battery materials, non-metallic minerals (Mohs hardness>5), chemicals, inorganic salts, pharmaceuticals, food, pigments, dyes, pesticides, minerals, refractories, new materials and other industries.
FEATURES AND ADVANTAGES
Available D50:2~45μm. Classifying wheel is Vertical installation . Two-In-One shaft of grinding disc and classifier wheel, compact structure. Especially suitable for ultra-fine grinding in pharmaceutical, food and chemical industries. Small occupation. No dead angle, easy disassembling and cleaning. Lower installation power, wide application, high cost-performance. Different types of grinding disc (pin, hammer, teeth or others) are used based on characteristics of materials to obtain different grinding forces and improve grinding efficiency. Key parts like the hammer, gear ring and classifying wheel are made of ceramic such as aluminum oxide, zirconium oxide or silicon carbide, ensuring non-contact with metal throughout the grinding for high purity of the final product. Grinding is in closed system, low dust and noise, clean and environmentally friendly production process. PLC control system, easy operation. Low noise design. The motor can be connected with a belt to increase the speed and break through the problem of high-speed motors without the well-known motor brand. Can be used in series with multi-stage classifiers to produce products with multiple sizes at one time. Optional explosion-proof design, meet the ultra-fine grinding processing requirements of flammable and explosive oxide materials. High-temperature, low-temperature, normal-temperature, airtight cycle, Inert gas cycle designs are available, for different grinding requirements of different materials. Integration of grinding and classifying, classifying wheel is adjusted to obtain ideal particle, and the classifying rotor can be installed horizontally or vertically. Different types of grinding disc are used based on characteristics of materials to obtain different grinding forces and improve grinding efficiency. Key parts are made of ceramic, ensuring non-contact with metal throughout the grinding for high purity of the final product. It can produce products with multiple particle sizes at one time; grinding is in closed system, low dust and noise, clean and environmentally friendly production process.
WORKING PRINCIPLE
The material is evenly fed into the grinding chamber by the feeding system, strongly impacted by the high-speed rotating grinding disc.
At the same time, it is subjected to centrifugal force and collides with the grinding ring gear, and is subjected to various
comprehensive forces such as shearing, friction and collision to finished grinding.
The grinded material moves to the classifying zone with the airflow.
The classifier is adjusted by frequency conversion, separates the coarse and fine materials, the product that meet the fineness requirement enters the cyclone collector and the dust collector with the airflow, and the coarse powders return to the classifying zone, secondary grinding.
TECHNICAL PARAMETERS

Parameter		CSM-280VD	CSM-350VD	CSM-510VD	CSM-710VD	CSM-1100VD	CSM-1250VD
Power (kw)	Grinding Disc	7.5	11~15	22~30	45~55	90~110	132~160
	Classifier Impeller	1.5	2.2	4~5.5	7.5~11	15	18.5~22
	Feeder	0.55~1.1
Rotate Speed (r/min)	Grinding Disc	7500	6200	4200	2800	2100	1700
	Classifier Impeller	500~4500	500~4000	400~3000	300~2500	250~2000	200~1600
	Feeder	20~100
Max Air Flow(m3/h)		700	900	3000	5400	10000	15000
Product Size(um)		5~300			10~300
Production Capacity(kg/h)		2~100	10~400	15~600	30~1200	60~1500	300~3000

Note: The production capacity is closely related to the particle size, specific gravity, hardness, moisture and other indicators of the raw materials. The above is only for selection reference.
