Mini CNC EDM Wire Cutting Machine Fast-Moving Single Cut Dk7745 EDM Wire EDM Machine Cheap Price

Product Description

Product Description
Mini Cnc Edm Wire Cutting Machine Fast-moving Single Cut Dk7745 Edm Wire Edm Machine Cheap Price
Wire EDM cutting machine. It uses electrode wire (molybdenum wire, tungsten molybdenum wire, etc.) as tool electrode. Under the action of pulse power supply, spark discharge is formed between the tool electrode and the workpiece, and a large amount of heat is generated in the spark channel instantly, melting or even vaporizing the workpiece surface. The wire cutting machine tool makes the electrode wire move along the predetermined track through the movement of XY pallet and UV pallet, so as to achieve the purpose of machining the workpiece.

Main Technical Data
1) High performance: Optimize and adjust cutting parameters.
2) CNC system: Adopting intelligent CNC system, high-quality CAD drawing, computer editing control system.
3) High-frequency power supply: High-performance digital pulse power supply main oscillation circuit with high-speed digital oscillation, high-power VMOS field effect tube, adjustable frequency, stable performance, high output power, fast cutting speed, high surface finish, and low electrode loss Features.
4) Three-dimensional four-axis linkage, multifunctional CAD computer control.
5) The maximum cutting speed is ≤100mm2 / min, and the best surface roughness is ≤2.5μm.
6) With upper and lower profile, equal taper, variable taper cutting, time-sharing control, power failure memory, short-circuit rollback, wire break protection = side positioning, analog verification, automatic shutdown, arbitrary angle rotation, fast zero check, special map More than twenty functions such as automatic programming.
CNC EDM Wire Cutting Machine DK7745.
DK series of machine tools are used with a matched impulse electric cabinet.
Z-axis is driven servo motor, with a Z-axis numerical control features, X Y axis adopts precise ball screw, and precision optical grating digital display shows the coordinate which makes coordinates have high positioning accuracy. Electric cabinet adopts the most advanced industry-specific industrial control board,strong function, good stability, simple operation, as long as input a few parameters such as Z-axis depth,it will select a set of suitable data from the expert database system that matches the processing, and process from the rough processing to finish once
Because there are ten years of focus, so there is now a professional, everything is for when you just need, I just in, looking forward to your consultation. Product Parameters

Model	DK7732	DK7745	DK7763	DK7780	DK77100
Work table travel (mm)	320x400	450x550	630x800	800x1000	1000x1200
Max cutting thickness (mm)	450	450	600/800	600/800	800/1000
Work table dimensions (mm)	680x400	820x560	1140x750	1350x985	1700x1170
Max load capacity (kg)	400	500	1000	2000	2200
Cutting taper (mm)	3°,15°,30°/80
Machining precision (mm)	Surface roughness (um)
Surface roughness (um)	≤2.5
Machine dimensions (mm)	1400x1200	1700x1400	2300x2200	2600x2400	3000x2800
Machine weight (kg)	1200	1700	3200	4500	6000

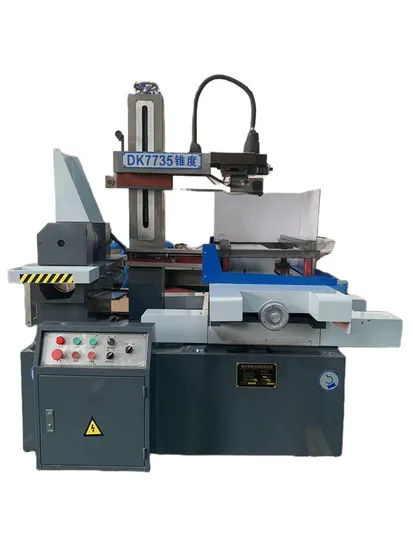

DK7732 Edm Wire Cutter Machine DK7745 Edm Wire Cutter Machine
Detailed Photos
Packaging & Shipping
OUR SERVICES
01 PRE-SALES SERVICE:
We provide presales service in various forms, making investment budge, manufacturingplanning, so that customers can make a reasonable plan with less cost.
We will fist check customer's goods and goods size, then we will recommend suitablewrapping machine to 100% suitable.
We will recommend and offer machine according to customer's use and purchasebudget.
02 IN-SALE SERVICE:
We will supply each manufacturing step photo for customer checking on time.
We will prepare packing and shipment according to customer's needing in advance.
Testing the machine and making video for customer's checking.
03 AFTER-SALE SERVICE:
We will guarantee the machine quality for 2 years.
We provide free training and answer customer's question on technology in time. Customer Feedback
Company Profile
Henan Randro Machinery Equipment Co., Ltd. is an enterprise specializing in the production of CNC machine tools, lathes, machine tools, and rolling presses. Our products have passed the international ISO9001:2008 quality management system certification. We have established good relationships with customers from over 100 countries.Main Products: The company operates various specifications of products, including cold bending forming equipment and other mechanical equipment, such as machine tools, tapping machines, slotting machines, boring machines, air hammers, gear hobbing machines, nail making machines, marking machines, etc. There are a wide variety of products, welcome everyone to visit and guide the factory!
