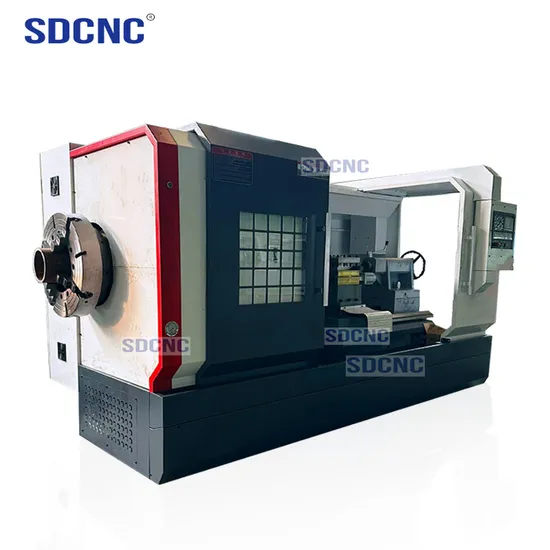

CNC Pipe Threading Lathe Q1332 Heavy Duty Lathe Machine
| US$49,650.00-52,550.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
QK1332
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Point to Point Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Main Motor Power
4kw
Grinding Wheel Speed
20rpm
Control System
Siemens GSK Fanuc (Optional)
Applicable Industries
Manufacturing Plant
Transport Package
Wood Packing
Specification
5000*2080*2080
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
500.00cm * 208.00cm * 208.00cm
Package Gross Weight
12500.000kg
Product Description
Product Parameters
CNC PIPE THREADING LATHE INTRODUCTION This series CNC pipe threading lathe is mainly designed for processing internal and external pipe threads including metric, inch,
module DP and taper threads, as well as having all the common functions of normal CNC lathe such as processing the inner bore
and end face of shafts and disks. This series lathe machine is widely used in industries including petroleum exploiting, minerals
mining, chemical piping and geological prospecting, it is high-efficiency equipment in processing and repairing drilling pipe, drilling
rod, thread coupling and so on. FEATURES Big spindle bore and double chuck to ensure process big diameter pipe One-piece bed adopts high strength iron to ensure rigidity and precision Ultrasonic frequency quenched guide-ways ensure good wear-resistance Carriage and guide way contact surface use Turcite B to maintain accuracy
| Model | Unit | QK1327 | QK1332 | QK1338 |
| Max. diameter swing over bed | mm | 1000 | 1000 | 1000 |
| Max. diameter swing over cross slide | mm | 610 | 610 | 610 |
| Distance between centers | mm | 1500/3000 | 1500/3000 | 1500/3000 |
| Pipe threading range | mm | 130-270 | 190-320 | 190-380 |
| Width of bed way | mm | 755 | 755 | 755 |
| Max. load capacity | T | 6 | 6 | 5 |
| Spindle bore | mm | 280 | 330 | 390 |
| Spindle speed range | rpm | VF. 4 steps 10-320 | VF. 3 steps 10-280 | VF. 3 steps 8-205 |
| Chuck size | mm | 800 | 780 | 850 |
| Chuck type | - | 4-jaw electric chuck | 4-jaw electric chuck | 4-jaw electric chuck |
| Turret type | - | NC turret 4 position | NC turret 4 position | NC turret 4 position |
| Tool shank size | mm | 40x40 | 40x40 | 40x40 |
| X axis travel | mm | 520 | 520 | 520 |
| Z axis travel | mm | 1250/2750 | 1250/2750 | 1250/2750 |
| X axis rapid traverse speed | mm/min | 4000 | 4000 | 4000 |
| Z axis rapid traverse speed | mm/min | 4000 | 4000 | 4000 |
| Tailstock quill diameter | mm | 160 | 160 | 160 |
| Tailstock quill taper | - | MT#6 | MT#6 | MT#6 |
| Tailstock quill travel | mm | 300 | 300 | 300 |
| Main spindle motor | kw | 22 | 22 | 22 |
| Coolant pump motor | kw | 0.125 | 0.125 | 0.125 |
| Positioning accuracy | mm | 0.02 | 0.02 | 0.02 |
| Repositioning accuracy | mm | 0.01 | 0.01 | 0.01 |
| Width x Height | mm | 2050x2050 | 2080x2080 | 2220x2120 |
| Length | mm | 4950/6450 | 5000/6500 | 5000/6500 |
| Net weight | T | 10.5/12.2 | 11.5/12.5 | 12/13 |
