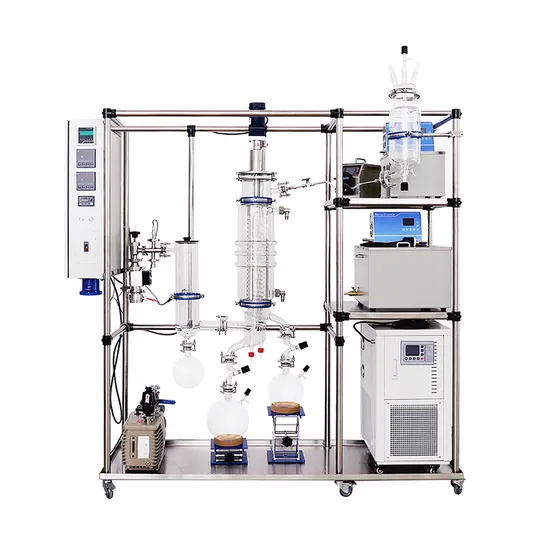

Short Path Wiped Film Molecular Distillation

Product Description

Molecular Distillation is a special liquid-liquid separation technology, which is different from traditional distillation on the difference boiling point. This is a kind of distillation in high vacuum environment, for the difference of material molecular movement free path, was carried out in the heat sensitive material or high boiling point material distillation and purification process. Short Path Distillation is mainly used in chemical, pharmaceutical, petrochemical, spices, plastics, oil and other fields.
High evaporation efficiency and reduced retention time, with minimal time delay Short path distillation is made from high borosilicate glass 3.3 and PTFE, which have excellent corrosion resistance Main body of Short path distillation is made of high borosilicate glass 3.3, allowing the whole process to be observed very clearly German technology brand frequency conversion deceleration motor, with self-cooling fan, long time continuous working Magnetic force transmission make film forming system separate from motor, the top sealing of distillation barrel have no dwang through. The whole System performs a completed sealing. Min Vacuum degree can reach 0.1Pa. Highest temperature of the system can reach 230ºC/300ºC, accurate temperature control can be realized Scraper Model and self-cleaning roller Model film forming system are available The barrel of the distiller has glass and stainless steel material for selection, and the glass distiller has two forms of half and full package.

Model	MD-060	MD-080	MD-100	MD-150	MD-200
Barrel Diameter(mm)	60	80	100	150	200
Feeding rate(g/hr)	500~700	750~1000	1000~1500	2000~3000	3000~5000
Feeding Flask Volume(L)	1	1.5	2	2	5
Effective Evaporation Area(cubic metres)	0.06	0.1	0.15	0.24	0.35
Motor Power(kw)	90	120	120	120	200
Maximum Speed(rpm)	500
Distillate Receiving Flask	1L	1L	2L	3L	5L
Residue Receiving Flask	1L	1L	2L	3L	5L
Operation Temperature	Up to 200ºC
Electrical Requirement	220V/50-60hz

Zhengzhou Well-known Instrument & Equipment Co.,Ltd, is a famous manufacturer of Lab equipment located in the central China.The main products include rotary evaporator , glass reactor, water circulating vacuum pump, low temp cooling liquid circulating pump and so on. So far, our products have been sold all over Asia, Europe and America, and covered most of laboratories in China. We have become one of the most popular and trustworthy brands.
Though our foreign trade is not for long, we do have a history of more than 30 years of our domestic trade. To assure the good quality & good service is our consistent aim.
We welcome new and old customers from all over the world to contact us for future business relationships and achieving mutual success!!

Packaging
-The glass parts will be wrapped with foam, then put into the carton, the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
Shipping
-We can ship the goods to you by International Express such as DHL, UPS, TNT, EMS and so on, you can also choose the
appropriate one based on your timeline and budget. Besides, you can choose to use your own shipping agent.
1. The period, scope and condition of the warranty.
(1)We offer 1 years warranty on the date of shipping from China. During the warranty time, because of manufacturing&quality problem, we offer replacement, maintenance service.
(2)The damage caused by the transportation problem shall be borne by the seller.
2. How to solve the problem of your equipment?
Please send us email of the problem, pictures or a small video will be much better. we will find the
problem and tell you how to solve it. If there is a broken, we will send you a new part, and it is free in the warranty period.

3.How to shipping the replacement parts?
We will according the actual situation to choose the suitable shipping ways. For small parts we shippin by Express.
4. Could you do customized for us?
We are a manufacturer that can provide all kinds of customized services.
