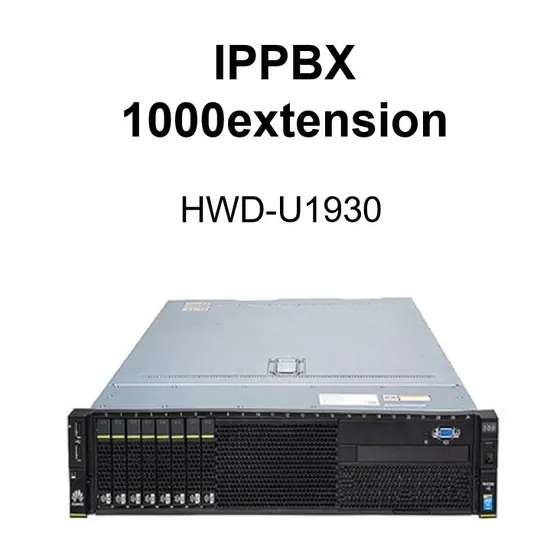

Hwd-U1930 Call Center, VoIP Gateway, Supports 1000 Users, Soft Switch Ippbx

Product Description

Product Description HWD-Useries of converged communication systemis
based on the core voice gateway developed by Huawei
server.lt works with Huawei lP terminals and Unified
communication applications to provide professionalIP
telephony (IPT) and UC services.
HWD-U uses the highly-integrated broadband and narrowband design to accommodate 20,000 users per sub
rack.Allows for hybridnetworkingofanalog phones andIP phones.It can connect to the public switched tele
phonenetwork(PSTN) or to voice switches in private networks using digital, analog, and broadband SIP trunks
HWD-U is equipped with modularfunction boards to simplify installations and support hot swapping, Large
record and memory functions.lt can be quickly deployed and easily maintained with the assistance of graphical
configuration tools.
Product features
High integration and impressive array of functions
• Extensive IPT services
• built-in hign-fidelity audio conferencing, with multiple conferencing modes available
• One Number Link You (ONLY), allowing users to answer incoming calls from anywhere, at any time, in the way that lisers prefer
• Built-in voice mailbox, recording messages from unanswered callers so users never miss any important calls
• UC application extension
Effective cost control
• Number analysis and whitelist/blacklist
• 32-level customized call rights
• Password-based call barring
• Intelligent routing, saving communications costs
Quick deployment and easy maintenance
• GUl-based deployment tools for easy and quick installation
• Unified network management system, helping improve management and maintenance efficiency
• Built-in web management system for convenient operations
High stability and high reliability
• 99.999% carrier-class reliability
• Redundancy backup for key modulesProduct Parameters

Specifications	Functions and features
Single set of user capacity	1, 000 (max. 1,000 IP users/simulated users)
Terminal type	Analog phones, IP phones, video phones, soft terminals
Trunk interfaces	Maximum 36CH FXO, 4E1/T1, 4BRI
Signaling protocol	PRI,QSIG,SS7,R2,SIP,BRI
Codec format	G. 711a/ μ,G. 729a/b/ab,iLBC, G. 722/G. 722. 1/G. 722. 2,Opus
The number of meeting channels	Maximum 120 participants, up to 60 venues, and up to 30 parties per venue
Voicemail	Support up to 100 built-in voicemails and Built-in 600G storage hard disk
power supply	AC:100V~240V,50Hz/60Hz DC: -38. 4V~-60V, typical-48V Support dual power modules, 1+1 backup
power consumption	550w
Dimensions (W x D x H)	Standard 19-inch 2U chassis 86. 1mmX447 mmX 708 mm
weight	20kg
temperature	Storage temperature: -40°C~70°C
Environmental indicators	Long-term working temperature: 0°C~45'C Short-term operating temperature: -5'C~55'C Humidity: Working humidity: 5%~95% RH, no condensation
dustproof	The working environment should be dustproof, and the concentration of particles in the air is less than 180 mg/m3
System reliability	>=99. 99% with an average time between failures of 30 years
maintainability	Supports centralized/remote device management, log management, resource management, and alarm management

Packaging & ShippingWrap:
1. All products will be packed in cartons, so the products can be effectively protected to avoid damage.
2. Packing according to customer requirements
Shipping:
1. We ship samll orders through DHL/FedEx/TNT, etc. Yow can receive your package all over the world in about 3-5 days.
2. For large orders, we will arrange air freight for your shipment, so it will be much cheaper than DHL, UPS, etc.
3. You can choose your own shipping agent, and we will provide good cooperation for it.
Certifications
Company InformationBasic information: Nanjing Doshi Weiye Software Technology Co., Ltd. is a professional call center fusion scheduling software development system integration company, committed to high-end communication converged communication, call center and visual emergency command and dispatch construction. Engaged in the research and development of NGN converged communication system for next-generation networks, and is a provider of integrated information and communication communication solutions for governments and enterprises.
Business Type: Manufacturer
Number of employees: 1000
Global user coverage: 28M+
Products & Solutions:
Nanjing Deshi Weiye Software Technology Co., Ltd
Headquarters: Room 1405, 14th Floor, North Hall, Block B, New World Center, No. 88 Zhujiang Road, Nanjing, Jiangsu Province
FAQ
1. Can I get free samples?
We have to charge samples and freight, when you place an order, we will refund your sample cost.
2. What is your MOQ?
Any sample test
No MOQ 3.OEM/ODM service available?
Yes, DINSTAR has a strong ability to provide customers with the highest quality ODM & OEM products. It will require a minimum order quantity.
4. For trade terms, such as payment and delivery time?
Payment method: We mainly support T/T bank transfer, PayPal, Western Union method: DHL, FedEx, TNT, UPS, sea freight, or your own
Shipping agents
5. How about the warranty period?
12 months
Although the warranty is not responsible for those who have been broken by violence or renewed with other brands.
