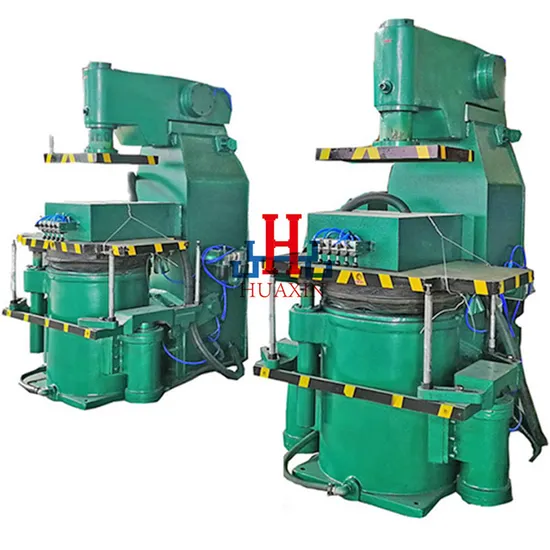

Green Sand Cast Moulding Machine Cast Iron Molding Machine

Product Description

Product Description
Green Sand Cast Moulding Machine Cast Iron Molding Machine adopt the jolting technology, so it can significantly increase the compressive stress to make the hardness of sand mold up to HB90;
Pneumatic sand molding machine is used for semi-automatic molding of single flask of single-sided template of small castings produced in batch.This machine adopts spring micro-vibration compaction mechanism, with large compaction force, and the sand mold is compact and uniform.
The shock part of the machine is buffer spring, so it can effectively reduce the impact to foundation;
The control part, it adopts all pneumatic components to achieve the global function, simple operation and convenient to maintenance;
The machine is convenient to operate, it is visual about the sand mould, human operation, so it is effective to increase the productivity.
Detailed Photos
Product Parameters

Type	Z143W	Z145WB	Z146W	Z147W	Z148WB	Z148WK	Z149WK
flask (mm)	500x400	550X450	600X500	700X550	800X600	1000X630	1050X930
Worktable size(mm)	560x420	600X520	700X550	800X575	900X730	1200X730	1200X1030
Jolting load(kgf)	250	300	400	400	500	750	750
Compressive stress(kgf)	4200	6300	7500	8000	10000	16000	16000
Moulding process(mm)	160	180	220	220	250	300	350
Productivity(box/h)	40-60	40-60	40-60	40-60	40-60	40-60	40-60

Certifications
Packaging & Shipping
Company Profile
Qingdao Huaxin is a proud partner of Foundry plants bringing more than 20 combined years of foundry design and productivity to the worlds foundries of all sizes.
Qingdao Huaxin is a professional industrial solution provider, specializing in foundry design and automation in foundry industry.
Qingdao Huaxin is a professional manufacturer in the design and installation of highly customized and high performance "Green Sand" sand preparation Systems,semi-auto/automatic molding machines,core shooting machine, shot blasting machine,automatic pouring machine and return systems for foundries which produce cast iron, cast steel and aluminum castings.
Company products:
Our Advantages
Technical : We have excellent skills and professional technical team, more than 20 years of experience in design of casting equipment. Production : We have been engaged in the foundry equipment industry for more than 20 years, and the production process is standard and the quality of machines is more guaranteed. after-sales service: professional after-sales service personnel from technology to equipment use. Maintenance, repair, and provide free technical services to users. Turnkey project: the design, production, commissioning and export of equipment are all operated by our professional team, without any middleman, the price is more reasonable and the service is more in place.
