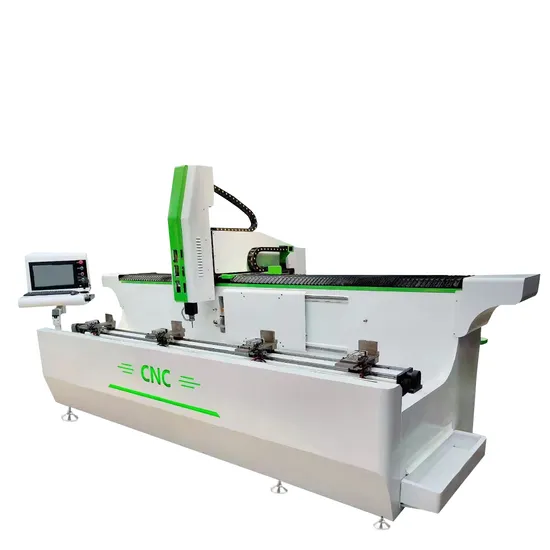

CNC Small Automatic Drilling and Milling Machine Vertical CNC Milling Machine

Product Description

Product Description
Features:

1. CNC specific system, easy operation and high stability
2. Thickness welded bed, sprayed with sheet metal, inlaid with light strips
3. Domestic first-line brand electric spindle, high precision, good safety and high reliability
4. The X-axis adopts high-precision helical gear and helical rack drive, and the Y-axis and Z-axis adopt high-precision ball screw drive to ensure smooth operation and high accuracy.
5. Chint electrical components, wire national standard.
Product Parameters

CNC Drilling Machine	Specifications
Square pipe cast welded lathe	Lathe bed adopts strong welded steel tube to avoid distortion.
Control system	Cnc control system
Spindle power	3.5kw
Motor&drivers	Stepper
X Y Z ALL square guide rail	Top Brand Square Linear Rail, high accuracy, heavy burthen.
Transmission system	Taiwan high precision ball screw
Lubrication system for rail.	Included
Spindle rpm	1000-24000
Working pressure	0.5-0.6MPa
Working area on X axis	800/1200/1500/2000/3300mm
Working area on Y axis	150/200/350/400mm
Working area on Z axis	150/200/350/400mm
Working area	800*140mm
Rolling angle	180°/360°
Voltage	380V 50/60HZ/220V

HQD/WHD Powerful Spindle

Spindle with high Speed 1000-24000rpm enables powerful cutting for wood,pvc,jade stone, aluminum,copper,and other soft metal process.
PLC controller

Nc Studio control system,can optional JD or DSP control system which is easy to operate,you can also choose the mach 3 USB system.
Square guide rail

High precision Hiwin 20 guide fast speed and high accuracy,makes machine more stable working.
Product Samples


Company Profile
Samet Intelligent Manufacturing Co., Ltd. is an innovative enterprise engaged in research and development, production, sales and good after- sales service. The company's main products include metal cutting machine, fiber laser welding machine, fiber laser cleaning machine, metal bending machine, 5 axis bridge cutting saw, stone cutting machine etc. Products applied to the metal processing industry, advertising, stone, building decoration, handicrafts, mold making, staircases column, automotive industry, packaging industry, shipbuilding, manufacturing, watches and clocks, accessories, seals and other industries.
