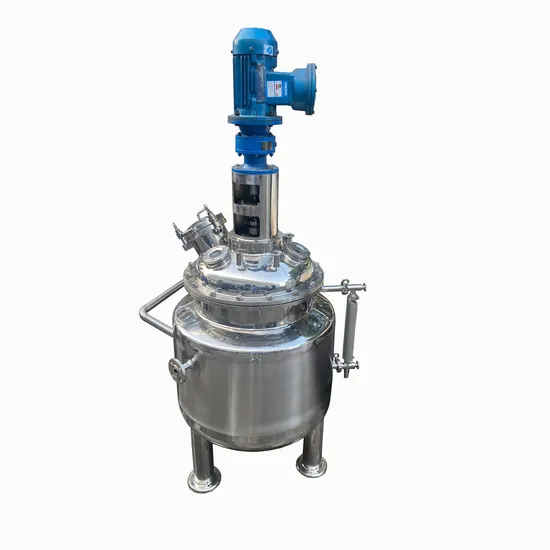

100-8000L Herb Extractor Tank with Concentration and Recovery Tank (lal ultrasonic aviable)

Product Description

100-8000L Herb Extractor Tank With Concentration and recovery tank (lal ultrasonic aviable)
Specifications
1.Saving solvent
2.Saving time
3.Low-energy consumption
4.High automatic
5.Quality of distilled medicine is greatly improved
6. Contact part material: SUS304 or S.S.316L
7. Optional device: agitator for the extraction tank, ultrasonic device for the extraction tank


Summary:

This equipment can be used for herbal. Plant, food's decoction, warm soaking, heat reflux, forced circulation, permeability percolation, aromatic oil extraction and organic solvent recovery process under atmospheric pressure or pressure. It has advantage of high efficiency and easy operation. Therefore,it is widely used in pharmaceutical,food, chemical and other industries. This equipment's extraction technique can choose straight cylinder, cone, oblique cone, mushrooms and other forms.


Component
1) The equipment is compact conformed and integrated with extraction, oil-water separation device, condenser, cooling tank, concentration tank, and solvent recovery tank.
2) Synchronous in Extraction and concentration process shorten the technical process and production period, increasing the operation rate of the equipment.

Advantage
1) Add the solvent once for all, with the consumption lowered by more than 40%. With hot reflux, forced circulation and sox let extraction integrated, the solute keeps high gradient in the solvent, increasing the receiving rate by 10 to15%.

2) Connecting and reusing the condenser make the equipment compact-conformed and bring each part into full play. Without increasing investment of the device, Both the reflux and solvent recovery can be reached to good effect.

3) New technology and new materials are utilized for excellent performance of unit. The areas of the unit contacting with medical liquids and solvents in instruments, equipments and pipes, are made of superior stainless steel.

Technical Parameter

	TQ0.5	TQ1.0	TQ2.0	TQ3.0	TQ4.0	TQ5.0	TQ6.0	TQ8.0
Volume L	560	1300	2300	3600	4400	5560	6500	8900
Inner tank design pressure MPa	0.09
Jacket design pressure MPa	0.3
Heat exchange area m2	2.1	4	5	6.8	7.3	8.5	9.5	11
Condense area m2	3.0	5.0	5.0	8.0	8.0	10.0	10.0	12.0
Cooling area m2	1.0	1.0	1.	1.0	1.0	1.5	1.5	1.5
Filter area m2	0.25	0.25	0.25	0.25	0.25	0.50	0.50	0.50
Waste discharge port mm	600	800	1000	1200	1200	1300	1400	1500
Man hole mm	300	300	400	400	450	450	450	500
Steam consumption kg/h	100	180	225	300	330	380	420	495
Cool water consumption T/h	2.6	4.2	4.2	6.8	6.8	8.5	8.5	10
