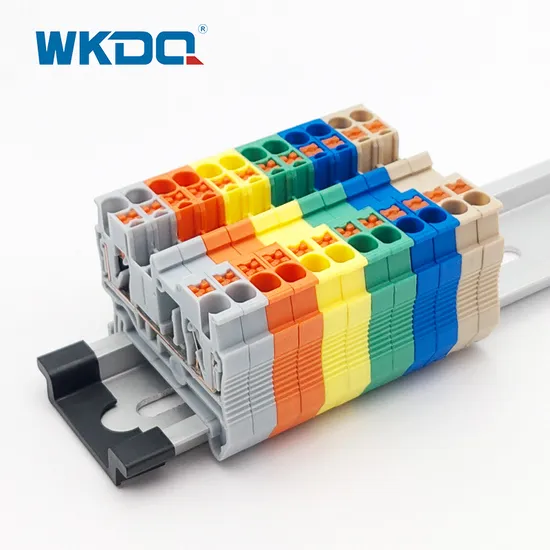

PT2.5 DIN Rail Mounted Push in Connection Screwless Terminal Block

Product Description

Din Rail Push In Connection Spring Terminal Block Mounted 1. DESCRIPTION:
The Push-in direct connection technology make the insertion forces reduced by up to 50 percent and tool-free wiring, enable the conductors to be inserted easily and directly.
Made from engineering flame retardants nylon PA66,brass conductor, stainless steel pressure spring. The Push-in connection terminal blocks are characterized by easy and tool-free wiring of conductors with ferrules or solid conductors. The compact design and front connection enable wiring in a confined space. In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection. With universal foot which can be installed on Din Rail NS 35. It can connect two conductors with ease, even large conductor cross sections are not a problem. Electric potential distribution can use fixed bridges in the terminal center. All types of accessories: End cover, End Stopper, Marker strip, Plug-in bridge, Marker carrier,etc.
Technical Parameters

Model No.	JPT 2.5
Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	48.5/36/5
Connection method	Push-in connection
Material	Flame resistant Nylon PA66, Tin plated brass conductor
Rated Voltage/Current	800V/31A
Cross section, solid/soft Cable	0.2-4mm² / 0.2-2.5mm²
Conductor Size	24-12 AWG
Mounting Type	DIN Rail NS 35
Standard	IEC 60947-7-1
LOGO	WKDQ, LOGO can be customized
Packing Detail	5.79g/pc, 100PCS/BOX
Certification	CE/RoHS/CQC/ISO 9001

FAQ
Q1 : Are you manufacturer ?
We are factory specializing in Terminal Blocks, Fans Filters Since 1999.
Q2: Can you make customized products or packing?
Of course, our R&D Depart. have rich experience in OEM, ODM service. Package can be customized as demanded.
Q3:What about your MOQ?
We keep large stocks for standard product with Fast Delivery, no MOQ required.
Q4: Do you have any test certification?
Products approved by CE, RoHs, etc. Our factory passed by SGS and CQC ISO9001 Qualification.
Q5: How about the after-sale service? What's the warranty terms?
If you have any problems after sales, we'll bring out solution within 24 hours. Quality warranty is 1 year, for problems happened over 1 year, we can also assist to solve.
