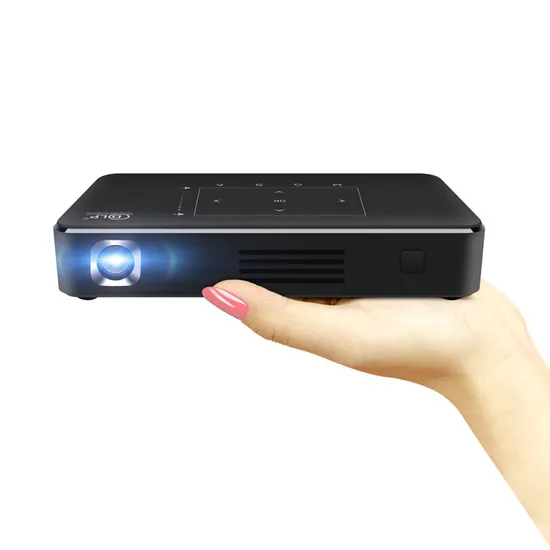

DLP 150 Lumens Android 9.0 System 3D 4K Decoding Input Family Theater Conference Portable Projector
Basic Info.
Model NO.
OX-MP10
Brightness
>2500 Lumens
Working Principle
DLP
Projection Technology
DLP(0.2"DMD)
Projection Light
RGB LED Osram Q6
Light Life
up to 20, 000 Hours
Light Luminance
150 Lumens
Light Type
LED
Standard Resolution
WVGA 854*480
Projection Area
40-300 Inch
Contrast
500:1
Projection Ratio
1.4:1 31 Inch
Projection Distance
1-8m
Aspect Ratio
16:9
Focus Mode
Manual Focus
Keystone Correction
Multi Angle Adjustment
Projector Character
Interaction
Projection Mode
Front Projection
Transport Package
OEM
Specification
14.5x8x1.75cm
Trademark
OEM
Origin
Shenzhen
Production Capacity
5000PCS/Month
Packaging & Delivery
Package Size
21.00cm * 13.00cm * 9.00cm
Package Gross Weight
1.800kg
Product Description
50 Lumens Four-corner DLP Smart Projector
Parameters
| Projection Specification | |
| Projection Technology | DLP(0.2"DMD) |
| Projection Light | RGB LED OSRAM Q6 |
| Light Life | Up to 20,000 hours |
| Light Luminance | 150 Lumens |
| Light Type | LED |
| Standard Resolution | WVGA 854*480 |
| Projection Area | 40-300 inch |
| Contrast | 500:1 |
| Projection Ratio | 1.4:1(31 inch@1M) |
| Distortion | <1.5% |
| Luminance Uniformity | >85% |
| Projection Distance | 1-8m |
| Aspect Ratio | 16:9 |
| Focus mode | Manual focus |
| Keystone Correction | Vertical ±40 degree,Horizontal ±45 degree,Multi angle adjustment |
| Projector Character | Interaction |
| Projection Mode | Front Projection |
| Offset function | 100% |
| 3D | YES |
| System Parameters | |
| Screen Mirror | Airplay/MiraCast |
| OS | Android 9.0 |
| CPU | T972(Amlogic) |
| Basic Frequency | Quad Core ARM Cortex-A55 CPU |
| GPU | ARM Mali-G31 MP2 GPU |
| Buffer Memory | 2GB/4GB LPDDR4 |
| Memory | 16GB/32GB EMMC |
| WIFI | 2.4G/5G |
| Bluetooth | BT 4.2 |
| Basic parameters | |
| Built-in Battery | 9000mAh=2*4500mAh (4500mAh 7.4V 33.3Wh) |
| Usage time | work for about 2 hours |
| Video Support(up to 4K) | VP9-10,H.265,H.264,MPEG-4,WMV/VC-1,MPEG-2,MPEG-1,RealVideo 8/9/10 etc. |
| Audio Support | MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV |
| Image Support | Supports variety of image formats browsing (jpg, png, bmp etc.) |
| Extended Storage | Support TF Card and Hard Disk |
| Remote Control | Support IR and 2.4G wireless control |
| Built-in speaker | one 2W speaker |
| Light machine Consumption | 11W |
| Whole Power Consumption | 16W |
| Power Performance | AC100-240V,50/60Hz, DC 12V 3A |
| Interface | 1*TF Card: Max 32GB |
| 1*HDMI: HDMI Input 1.4 | |
| 2*USB: USB 2.0 Support USB hard disk data read | |
| 1*Earphone: Audio output, 3.5mm joint (can connect with earphone or speaker box) | |
| Ethernet:100M | |
| 1* DC input: DC 12V 3A | |
| Package | |
| Colour | Gray/Black + metal frame |
| Net weight | 468g |
| Dimension | 16x9.8x2.8cm |
| Gift Box weight | 994g |
| Gift Box Size | 20.6x12.9x8.4cm |
| Carton box weight | 10.4kg(10pcs) 20.6kg (20pcs) |
| Carton box size | 46x22x28cm (10pcs) 44.5x43x28cm (20pcs) |
Features
DLP 150 lumens; Amlogic T972 android 9.0 system; 3D/4K decoding HDMI input; 2.4/5G wifi (2T2R); up and down trapezoid automatic correction + four-corner correction + zoom; infrared remote control; Android & IOS wireless same screen touch and button two in one Panel.
Product show
