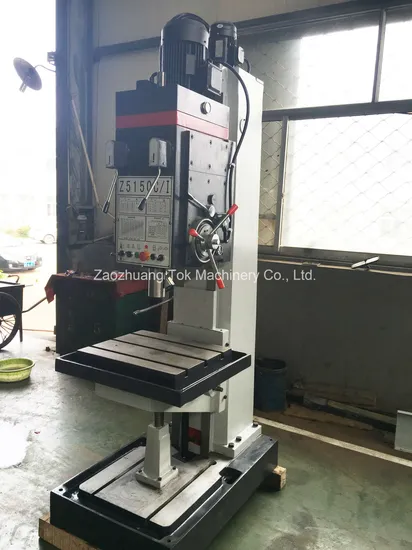

Column Vertical Drilling Machine Z5150b
| US$4,200.00-6,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z5150B
Controlling Mode
Artificial
Hole Diameter
50-100mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max Drilling Diameter
50mm
Spindle Taper
Mt5
Spindle Travel
250 mm
Spindle Box Travel(Manual)
200mm
Spindle Speed Steps
12
Spindle Feed Steps
9
Spindle Speed Range
31.5~1400
Table Size Spindle Feed Range
0.056~1.80
Table Size
560X480 mm
Main Motor Power
3 Kw
Transport Package
1090X905X2530 mm
Specification
1270 KG
Trademark
tokmc
Origin
Shandong
HS Code
84592900
Production Capacity
100 Sets/Year
Product Description
Vertical drilling machine Z5150B Square column vertical drilling machine witha versatile application Tap-automatical recersing device Manual lift table Cross table used in Z5140B-1 Z5150B-1| Specification | Unit | Z5150B | Z5150B-1 |
| Max drilling diameter | mm | 50 | 50 |
| Spindle taper | MT5 | MT5 | |
| Spindle travel | mm | 250 | 250 |
| Spindle box travel(manual) | mm | 200 | 200 |
| Spindle speed steps | 12 | 12 | |
| Spindle feed steps | 9 | 9 | |
| Spindle speed range | r.p.m | 31.5~1400 | 31.5~1400 |
| Table size spindle feed range | mm/r | 0.056~1.80 | 0.056~1.80 |
| Table size | mm | 560 x 480 | 800 x 320 |
| Longitudinal(cross)travel | mm | - | 450/300 |
| Vertical travel | mm | 300 | 300 |
| Max distance between spindle and table | mm | 750 | 750 |
| Main motor power | kw | 3 | 3 |
| Overall size | mm | 1090x905x2530 | 1090x905x1200x2530 |
| Net weight | kg | 1270 | 1370 |
