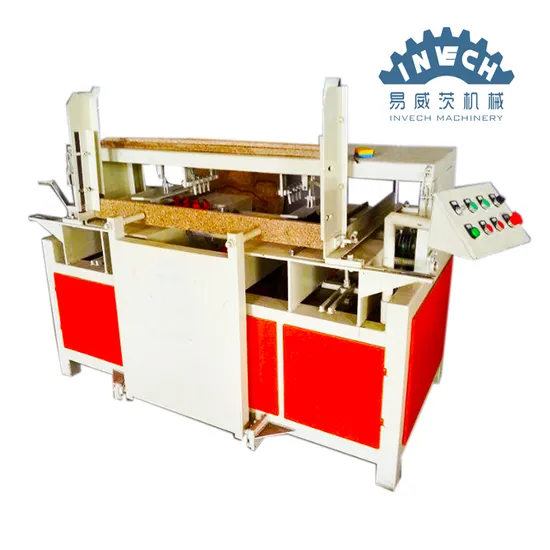

Double Heads Wood Timber Notching Machine with Changeable Blades

Product Description

Stringer Pallet Board Grooving Machine

Brief Introduction for wood pallet notcher machine:
1. automatic wooden pallets notcher machine is special for America wood pallet processing ,which it can be from four directions by forklift, It becomes popular pallet type in the world .
2. automatic wooden pallets notcher machine is suitable for different notching size ,it also can be customized by customer demands.

Features for wood pallet notcher machine:
1) machine heads with alloy material, with high hardness, wear resistance, strength and toughness, heat resistance, corrosion resistance and a series of excellent performance, thus ensuring the long-term performance of the machine.
2) the use of a continuous feed, work platform automatic discharge mode, you can also open a dual-slot, Trench smooth without rough parts, standard size, high precision, adjustable slot depth specifications;
3) reliable security guards, when workers operate completely without touching knives, quiet high;
4) product design, design ideas unique in the country.
5) its high-quality, safe, practical, efficient and a series of properties, so that more wood pallet wood factory automation to improve mechanical, completely replace the previous trough excavation work manually.

Technical Parameters for wood pallet notcher machine:

Name	Pallet Notcher Machine
Power	22KW
Batten Length	<1300mm
Batten Width	<100 mm
Batten Thickness	<100mm
Grooving Thickness	40-60mm
Working Capacity	800-1000pcs/hr
Cutter Materials	Alloy
Appearance Dimensions	2000*900*1400mm
Weight	700kg
Working Type	Continuously
