Yhdc PE3018-M 2va Ei30 Series PCB Mounting Type Power Transformer

Yhdc PE3018-M 2va Ei30 Series PCB Mounting Type Power Transformer

US$1.21-1.59 1 Piece (MOQ)

Basic Info.

Model NO.
PE3018-M
Core
Silicon Steel
Cooling Method
Dry-type Transformer
Winding Type
Auto-transformer
Certification
ISO9001, CE/Rosh
Usage
Single-phase Transformer, Power Transformer, Distribution Transformer
Frequency Characteristics
Low Frequency
Shape of Core
EI
Brand
Yhdc
Color
Blue
Power
2va
Primary
110V/220V/230V/380 AC
Secondary
Single/Double 6V/9V/12V/15V/18V/24V
Frequency
50/60Hz
Insulation Grade
Class B
Flame Resistance
UL94-V0
Mounting Type
PCB
Operation Temperature
-30ºC to +70ºC
Dielectric Strength
3.75kv/1min
Encapsulation
Vacuum Epoxy Encapsulated
Transport Package
Carton
Specification
33mm*28mm*29mm
Trademark
YHDC
Origin
China
HS Code
8504311000
Production Capacity
7000 PCS / Day

Product Description

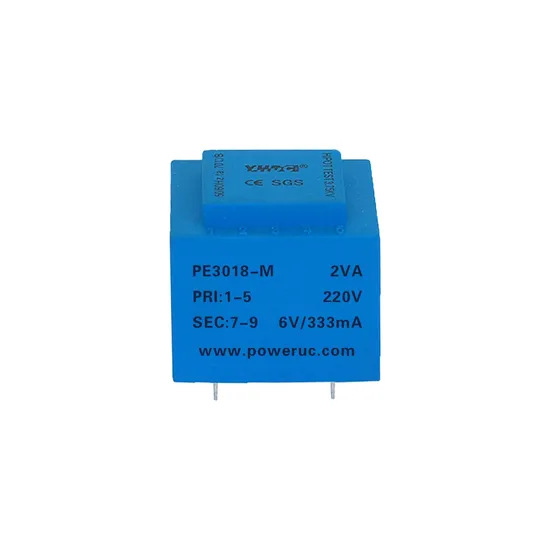

YHDC PE3018-M 2VA EI30 series pcb mounting type power transformer
Brabd : YHDC Model : PE3018-M
Power : 2VA
Primary voltage : 110V/220V/230V/380V AC
Secondary voltage : single : 6V/9V/12V/15V/18V/24V AC
double 6V*2/9V*2/12V*2/15V*2/18V*2/24V*2 Characteristic 1. Vacuum epoxy resin encapsulated,100ºC /6 hours high temperature aging, long woking life 20 years and with high delectric strength
2. High quality H18 laminated silicon steel, low temperature rise, high efficiency
3.PBT engineering plastic, environmental protection, flame retardant, 120 degrees no deformation
4. Reasonable structure, convenient installation, low noise, strong seismic, sealed waterproof, moisture-proof Technical index Mounting type:PCB
Flame resistance :UL94-V0
Insulation class:B Operation temperature:-30ºC~+70ºC Work frequency:50Hz~60Hz
Dielectric strength:Pri./Sec. 3.75KV 50Hz 1min 5mA, Sec/Sec 500V 50Hz 1min 5mA Electrical parameters (The following parameters are typical values and actual values will be subject to product testing)
Primary voltage 110V/220V/230V/380V AC
Primary voltage range +/-10%
Voltage regulation ≤25%
Power 2VA
Temperature rising ≤16ºC
No Load Loss ≤0.5W
Weight 115g
Standard output parameter table: (Factory test is based on the full-load votage )
Secondary voltage Secondary No load voltage Secondary full load voltage
Single double Single Double Single Double
6V 6V*2 8V 8V*2 333mA 166mA*2
7.5V 7.5V*2 10V 10V*2 266mA 133mA*2
9V 9V*2 12V 12V*2 222mA 111mA*2
12V 12V*2 16V 16V*2 166mA 83mA*2
15V 15V*2 20V 20V*2 133mA 66.5mA*2
18V 18V*2 24V 24V*2 111mA 55.5mA*2
24V 24V*2 32V 32V*2 83mA 41.5mA*2
Data sheet
