Machinery for Cup Fan Printing Flexo Press Machine Paper Roll to Roll
| US$100,000.00-500,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
DHF3
Printing Color
8 Colors
Anilox Roller
Ceramic Anilox Roller
Dryer
Electric Heating/Gas/Steam/Hot Oil
Type
Flexo Printing Machine
Embossing Structure
Flexo Printing Machine
Structure
Unit Type
Application
Flexible Packaging Printing
Automatic Grade
Automatic
Printing Speed
200m/min
Printing Section
10
Driving
Printing Part Full Servo Motor Control
Job Changing Time
Immediate Job Changes
Certificate
CE
Transport Package
Standard Export Package
Specification
30m(L) x 3m(W)
Trademark
DH
Origin
Shandong, China
HS Code
8443160001
Production Capacity
20 Sets/Month
Packaging & Delivery
Package Size
3000.00cm * 300.00cm * 270.00cm
Package Gross Weight
25000.000kg
Product Description

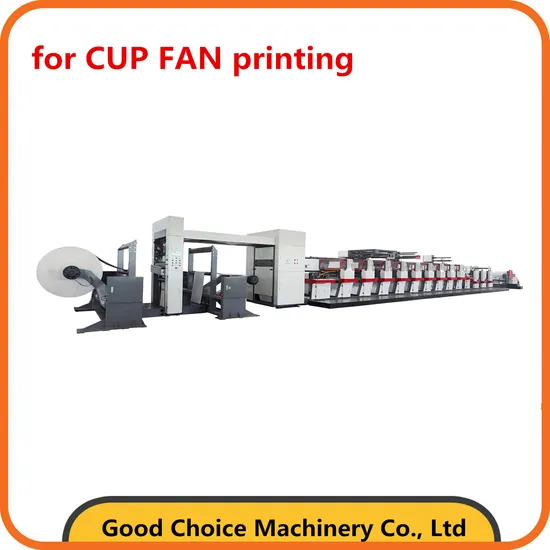

DHF3 Flexo Printing Machine for CUP FAN printing Detailed Photos Substrate Coated paper, cardboard, copy paper, BOPP, PET, plastic film, etc., widely used in paper cup, paper box, food package gob, packaging paper and the like printing fields.Our Advantages AUTO SPLICING SYSTEM
TWINS MERCURY UV LAMPS
100% quality control system
ink pump for chamber doctor blade system
Unwind unit (Non-stop)
Web guide system
Web cleaner and corona system
Turn bar
In-feed tension control unit (Servo control)
8 printing units (servo system control)
Auto register
Image Inspecting System
Rear out-feed tension control system (Servo control)
Rewind unit(Non-stop)
Plate-mounting machine
Anilox roller washing machine
Features 1 . Fast, safe and convenient sleeve-changing technology, contributing to low cost and high productivity.
2 . Sleeve cylinder thickness can be arbitrarily selected within a certain range, and sleeves with different outer diameters and the same inner diameter are mounted to acquire the desired printing circumferences.
3 . Servo motor driving sleeve type printing cylinder can realize stepless continuously selectable printing length.
4 . Automatic registration for printing stations
5 . One set ceramic anilox rollers (LPI is decided by customer but confirmed by Donghang)
6 . One set of medium size printing SLEEVES (the printing repeat length is decided by DongHang but confirmed by customer).
7 . Open type ink tray with ink pump
Technical Parameter:
| No | Descriptions of Functions | DHF301000mm |
| 1 | Maximum unwinding diameter | 1524mm |
| 2 | Maximum rewinding diameter | 1524mm |
| 3 | Printing repeat length | 350-810mm |
| 4 | Maximum substrate width | 1020mm |
| 5 | Maximum printing width | 1000mm |
| 6 | Power requirement | 380V 3PH 50Hz |
| 7 | Machine rating speed | 0-200 m/min |
| 8 | Printing plate thickness | 1.14mm (To be determined) |
| 9 | Printing plate attaching tape thickness | 0.38mm (To be determined) |
| 10 | Automatic stop when paper broke | YES |
| 11 | Automatic alert when paper less | YES |
| 12 | Meter counting and quantity counting | YES |
| 13 | Speed adjustment in many stages | YES |
| 14 | Ink | Water base ink/ Solvent ink |
| 15 | Drying | Hot air& IR |
| 16 | Substrate and thickness | Paper:80-350gsm |
| 17 | Control langue | Chinese/English |
Company Profile Warmly welcome to visit our factory!
FAQ 1) what is speed of this machine?
Normal working speed is 150-180m/min.
2) Delivery time
4 month after down payment received!
