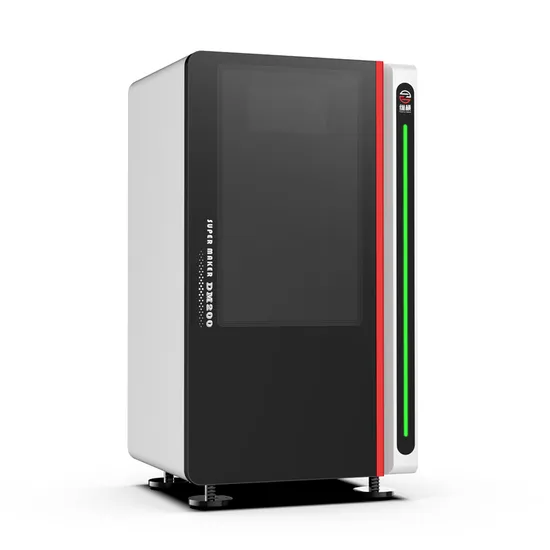

Dm-200 High Precision Top-Down DLP 3D Printer for Professional Use

Dm-200 High Precision Top-Down DLP 3D Printer for Professional Use

US$8,980.00
3-4 set
US$6,980.00
5+ set

Basic Info.

Model NO.
DM200
Thickness
0.03-0.15
Speed
6-8 Seconds Per Layer
Connections
USB
Printing Material
DLP Resin,with 405nm
Operating Screen
7.0 Resistive Screen
Power Requirment
220V/50Hz
Light Source
4K405 Light Source DLP
Net Weight
65kg
Transport Package
Crate Case
Trademark
ZONGHENG
Origin
China
HS Code
848520000
Production Capacity
20set/Month

Product Description

Product Model DLP-DM200
Operating system Zongheng Self-developed System
Operating screen 7.0" resistive screen
Print size 192*108*120MM
XY Resolution 50um resolution
Technology Top-Down DLP
Light source 4k, 405 light source DLP
Connection method USB stick or network cable
Z-axis accuracy 0.002
Layer thickness 0.03-0.15
Print speed 6-8 seconds per layer
Power Requirements 220v/50HZ
Slicing software Self-developed
Machine size (L*W*H) 570*480*800mm
Net weight 65KG
Operating System Zongheng Embedded System
Printing Platform Magnetic detachable platform
Import File Format igs,stl,step
Coating system Adjustable negative pressure scraper
Warranty One Year
Tank Capacity 5L(6KG)
Resin 405nm:Model Resin, Dental Resin, Flexible resin, Jewelry Resin, High Temperature Resin, High ToughnessResin,Water Washable Resin,Transparent Resin
1. SuperMaker DM200 is DLP 3d printer developed for model resin and ceramic printing, open style, easier to adjust. 2. Suitable Projector modes: 405nm or 385nm. 3. We have created unique testing function for material testing. Do not need complex operations. Supports single-layer exposure of specified models. Parameters can be modified directly on the touch screen, and a set of curing parameters can be tested in one minute. With just a few milliliters resin, simple models can be printed to test performance. 4. It supports stl, igs, step file. 5. Scrapers: two kinds of working model, one is for without coating and pressure, use for the high sticky resin, such as ceramic resin, another one is with coating and pressure, use for normal model resin etc. 6. Equiped with various tanks with different sizes. Users can customize the tank.
