High-Precision Horizontal Servo Injection Molding Machine for Coffee Filters

Product Description

HIGH PRECISION INJECTION MOLDING MACHINE
Powerjet New Series Hydraulic Injection Molding Machine With Faster Injection And Plasticizing Speed, More Stable And Higher Efficiency.
Faster injection speed & charging speed, better stability, higher Efficiency
Clamping Force: 900~10000(KN)
Driving System: Hydraulic
Motor Type: Servo
Applications: Food And Beverage Packaging, Necessities Products, Home Appliances, Electrical Components, Automotive Parts, etc.
Machine Details

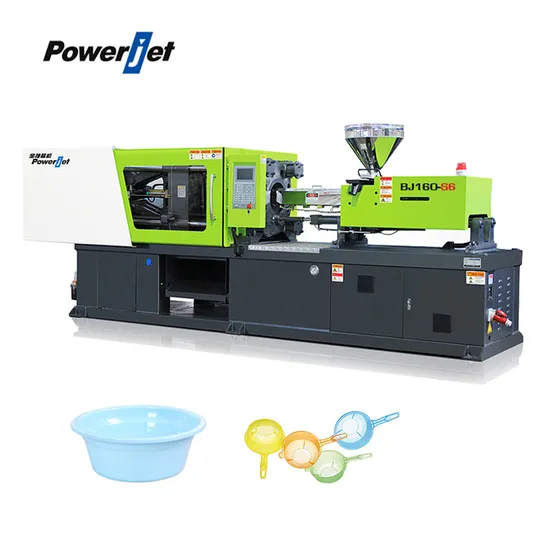

Small injection molding machines Powerjet brand

Description		UNIT	BJ160-V6/S6
CLAMPING UNIT	Clamping force	KN	1600
	Opening stroke	mm	440
	Max.datlight	mm	940
	Platen size	mm	705x705
	Space between bars	mm	460x460
	Max.mold height	mm	500
	Min.mold height	mm	160
	Ejector stroke	mm	140
	Ejector force	KN	49
INJECTION UNIT	Screw diameter	mm	42	46	52
	Screw L/D Ratio	L/D	22	20	17.4
	Injection Pressure	MPa	213	177	139
	Shot volume	cm³	284	340	435
	Shot weight (ps)	g	253	302	387
		oz	8.9	10.7	13.7
	Injection rate	g/s	105	126	161
	Screw stroke	mm	205
	Screw speed	rpm	210
POWER UNIT	Hydraulic system Pressure	MPa	17.5
	Pump motor power	KW	15/16
	Heater power	KW	9.8
GENERAL	Dry-cycle time	s	1.8
	Oil tank capacity	L	260
	Machine weight	T	4.6
	Machine dimensions (L*W*H)	m	4.8x1.3x1.8

Company Profile

We have established a global marketing network. To deliver the value of Powerjet injection molding machine and extrusion blow molding machine to over 100 countries area. Multiple senior managers and business elites worldwide. Become trustworthy partners. Provide the most thoughtful service and fastest user support for you constantly. sincerity for you.
Satisfied Customers

FAQ

Q1: Are you a manufacturer or trading company? A1: We are a factory for plastic machines. Over 23 Years Experience In Manufacturing Injection Molding Machine And Blow Molding Machine. Q2: Delivery time? A2: Normally Machine Delivery from the factory in 0-60 days after receiving the down payment. (During Chinese Public Holidays like National Day or Chinese New Year, the delivery time should be 10-30 days longer accordingly). Q3: Where is your factory located? A3: Our factory is located at No.5 Chuangxin Xi Road, Leping Town, Sanshui District, Foshan City, Guangdong Province, China. 1h drive from Guangzhou to our factory. Welcome to visit our factory.
