Fire Resistance 2core/4core/6core/8core Flame Retardant Unshielded/Shielded Tcu/Bc/CCA/TCCA LSZH/Ls0h Alarm Cable

Product Description

Terms:1.OEM is welcomed
2.ISO/CE/ETL/ROHS/UL/SONCAP and other certifications are available
3.Competitive price and high quality offered.
4. Best service for you!
Basic Info:1. Name: : Alarm Cable
2. Structure:
Conduct---pure copper/copper clad aluminum
Insulation---blue/yellow/pink/grey/others you like
3. Size:
According to Standard/Sample/Customer's request.
4. The material of the inner conductor and outer sheath materials in accordance with customer requirements.

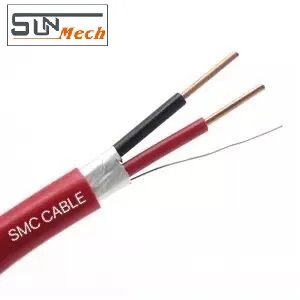

High Quality 6 Cores Alarm Cable Security System Alarm cable
Product description:
1. Conductor: Bare copper,Tinned copper ,Tinned CCA, CCA.
2. Insulation:PVC-flame proof
3. Cable core: 2, 4, 6, 8, 12,...20 are available
4. Shield: Al/polyester foil
5. Rip cord: synthetic fibers
6. Drain wire: CU/TC/TCCA/CCA
7. Jacked: PVC-flame proof.

Specification	Security System Alarm Product Description
Alarm Cable 2Cx0.22mm²	2CX7/0.20mmOFC I.D:1.0mmPVC O.D:3.2mmPVC
4Cx0.22mm²	4CX7/0.20mmOFC I.D:1.0mmPVC O.D:3.6mmPVC
6Cx0.22mm²	6CX7/0.20mmOFC I.D:1.0mmPVC O.D:4.1mmPVC
8Cx0.22mm²	8CX7/0.20mmOFC I.D:1.0mmPVC O.D:4.5mmPVC
10Cx0.22mm²	10CX7/0.20mmOFC I.D:1.0mmPVC O.D:5.2mmPVC
12Cx0.22mm²	12CX7/0.20mmOFC I.D:1.0mmPVC O.D:5.5mmPVC
2Cx0.22mm²	2CX7/0.20mmOFC I.D:1.0mmPVC +AL O.D:3.2mmPVC
4Cx0.22mm²	4CX7/0.20mmOFC I.D:1.0mmPVC +AL O.D:3.6mmPVC
6Cx0.22mm²	6CX7/0.20mmOFC I.D:1.0mmPVC +AL O.D:4.1mmPVC
8Cx0.22mm²	8CX7/0.20mmOFC I.D:1.0mmPVC +AL O.D:4.5mmPVC
10Cx0.22mm²	10CX7/0.20mmOFC I.D:1.0mmPVC +AL O.D:5.2mmPVC
12Cx0.22mm²	12CX7/0.20mmOFC I.D:1.0mmPVC +AL O.D:5.5mmPVC
2Cx0.22mm²	2CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL O.D:3.3mmPVC
4Cx0.22mm²	4CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL O.D:3.8mmPVC
6Cx0.22mm²	6CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL O.D:4.2mmPVC
8Cx0.22mm²	8CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL O.D:4.6mmPVC
10Cx0.22mm²	10CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL O.D:5.3mmPVC
12Cx0.22mm²	12CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL O.D:5.6mmPVC
2Cx0.22mm²	2CX7/0.20mmOFC I.D:1.0mmPVC+7/0.20mmCU Ground+AL+96/0.12mmTC Weave O.D:3.8mmPVC
4Cx0.22mm²	4CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL+128/0.12TC Weave O.D:4.0mmPVC
6Cx0.22mm²	6CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL+128/0.12TC Weave O.D:4.6mmPVC
8Cx0.22mm²	8CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL+144/0.12TC Weave O.D:5.0mmPVC
10Cx0.22mm²	10CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL+144/0.12TC Weave O.D:5.8mmPVC
12Cx0.22mm²	12CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL+160/0.12TC Weave O.D:6.5mmPVC

F A Q

1, Who are we?
We were founded at the year of 2006 in Zhejiang China. We sell our products to Europe(28.00%), Middle East(26.00%), Africa(25.00%), Asia(12.00%), South America(5.00%), North America(3.00%), Oceania(1.00%). There are about 51-100 workers in our factory.
2, How can we guarantee quality?
Always a pre-productsion samples before mass production
Always final inspection before shipment
3, What can you buy from us?
Coaxial cable, Network cable, Patch cord cable, Telephone cable, Alarm cable, Electric wire, Speaker wire, Microphone wire, ABC cable, Fiber Optic cable, Communication cable, Data cable, Cable tie, Electrical tape, Non-woven products, and some related Tools and Accessories
4, Why should you buy from us not from other suppliers?
Professional Technician Team
Professional & Hard-working Employee
Professional, Hornest, Warm-heart Service
We Guide & Sell you not the best, not the Cheapest but the Most suitable goods for your market. Once business start, After-sale service forever.
5, What's the MOQ:
Usually, the MOQ is 30km, but every inquiry will be considered individually.
6, What service can we provide?
Accepted Delivery Term: FOB, CFR,CIF
Accepted Payment Currency: USD, EU, GBP, CNY
Accepted Payment Type: T/T, L/C, D/P, Western Union
