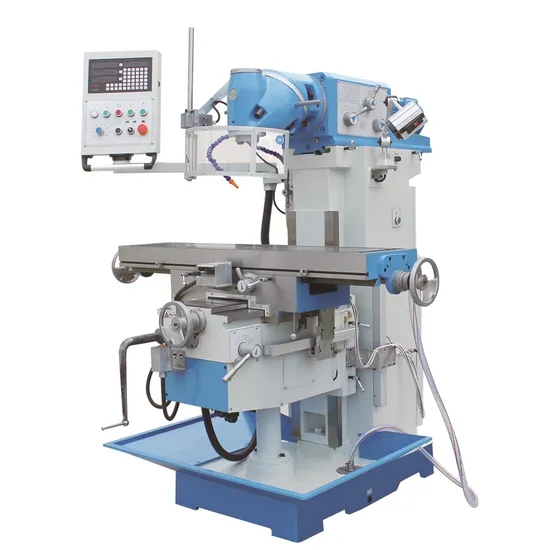

High Quality Metal Xq6226 XL6230 Universal Vertical and Horizontal Turret Milling
| US$7,000.00-8,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
XL6230C
Type
Knee-and-Column Milling Machine
Object
Metal
Structure
Knee Type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Table Size
1370*300 mm
Table Size 2
1270*300 mm
Travel
1000/380/400
Travel 2
900/380/400
Travel 3
820/300/400
Spindle Taper
ISO40
Vertical Spindle Speed
11 Steps 45-1660 Rpm
Distance Between Spindle Nose and Table
100-500 mm
T-Slots(No./Width/Pitch)
3/14/80
Table Rapid Feed X/Y/Z
1335/1335/1000 mm/Min
Table Feed(X/Y/Z)
Xy:30-830 Z:23-625
Torque of X/Y/Z Axis AC Servo Motor
15nm
Main Motor Power
3kw
Max Swivel Angle of Milling Head
360°
Optional Max Rotary Angle of Table
±45°
Transport Package
Plywood Case and Still Pallent
Specification
ISO50 spindle
Trademark
XILI
Origin
China
HS Code
8459590000
Production Capacity
800 Sets Per Year
Product Description
Product Description
High quality metal XQ6226 XL6230 Universal Vertical and Horizontal Turret Milling
1.Finely graduated feeds in all axis, driven by servo motor, it is a patent product in our company.
2.Complete with rapid feed in x-, y- and z-axis to reduce downtime
3.Precision-ground guide ways with hardened surfaces for long-term accuracy and wear-resistance
Fast delivery , welcome your inquiry!!!
Detailed Photos
The machines have a wide application for single-piece or small batch production in manufacturing, instruments, construction, maintenance and repair workshops and so like industries.
Featuring optimum structure, easy operation and less maintenance, the machine can also be equipped with DRO system for higher positioning and efficiency in batch production.
1. Universal swivel head, can swivel 360 degree
2. ISO50 vertical spindle taper 3KW motor
1. X Y Z 3-axis automatic feed and rapid feed by servo motor, easy operating and low trouble rate.
2. It`s our patented product, started to produce in 2007.
1. Rotary table 45 degree is optional
2. The lifting part with grinding surface, metal texture, and there is no defect in the casting.
1. We pay attention to every details.
2. All the oil plugs are made by stainless
3. All the oil window made by copper
Product Parameters
| Specifications | Unit | XL6230 | XL6230A | XL6230B | XL6230C | |
| Table size | mm | 1270*300 | 1370*300 | 1270*300 | 1370*300 | |
| T-slots(NO./width/pitch) | mm | 3*14*80 | ||||
| Max table travel - X/Y/Z | mm | 720/300/400 | 820/300/400 | 900/380/400 | 1000/380/400 | |
| Spindle taper | - | 7:24 ISO40 | ||||
| Distance between spindle nose and table surface | mm | 100-500 | ||||
| Spindle speed range | r.p.m | 11 steps 45-1660 | ||||
| Max swivel angle of milling head | - | 360° | ||||
| Table feed(X/Y/Z) | mm/min | XY:30-830 Z:23-625 | ||||
| Table rapid speed | 1335/1335/1000 | |||||
| Main motor power | Kw | 3 | ||||
| Torque of X/Y/Z axis AC servo motor | Nm | 10 | ||||
| Overall size | mm | 1730*1760*1700 | 1830*1760*1700 | 1730*1760*1700 | 1830*1760*1700 | |
Company Profile
Shandong XILI Machine Tool Co.,LTD (Shandong Yourong Machine Tool Co.,LTD.) was founded in 2008 and Tengzhou XILI Machine Tool Co.,LTD.was founded in 1999.We are focus on milling machine manufacturer for more than 20 years. Our main products are conventional milling machine/CNC milling machine/machining center/CNC gantry milling machine. Our milling machine exports to Europe, Asia , America....around the world.We can also provide OEM manufacturing service for customers all over the world.
If you need any further information, feel free to contact us.
