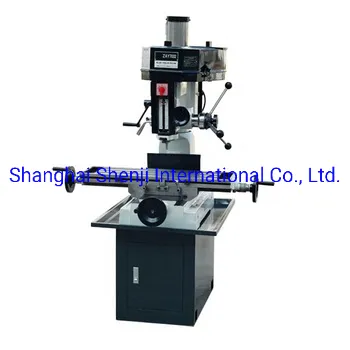

Drilling & Milling Machine Zay7020/Zay7032/Zay7040/Za7045
| US$900.00-1,500.00 | 1 UNIT (MOQ) |
Basic Info.
Model NO.
ZAY7020/ZAY7032/ZAY7040/ZA7045
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
Precision
Certification
GS, CE, ISO 9001
Condition
New
Transport Package
Polywood
Specification
1020x820x1160mm
Trademark
SJMC
Origin
China
HS Code
8459290000
Production Capacity
200 Set / Month
Product Description
Features
Milling, drilling, tapping, boring and reaming.
Headstock swivel 360º horizontally.
Belt-drive and round column.
Micro feed precision.
12 steps speed.
Adjusable gibs on table precision.
Posive spindle lock.
Strong rigidity, powerful cutting and precisely positioning.
| Model | ZAY7020 | ZAY7032 | ZAY7040 | ZAY7045 |
| Drilling capacity | 20mm | 32mm | 40mm | 45mm |
| Face milling capacity | 63mm | 63mm | 80mm | 80mm |
| End milling capacity | 20mm | 20mm | 32mm | 32mm |
| Distance from spindle nose to table | 435mm | 450mm | 450mm | 450mm |
| Min.distance from spindle axis to column | 181.5mm | 203.5mm | 203.5mm | 203.5mm |
| Spindle travel | 85mm | 130mm | 130mm | 130mm |
| Spindle taper | M.T.3 or R8 | MT3 or R8 | M.T.4 or R8 | M.T.4 or R8 |
| Step of spindle speed | 12 | 12 | 12 | 12 |
| Range of spindle speed 50Hz | 100-2200 r.p.m | 100-2200 rpm | 80-2080 r.p.m | 80-2080 r.p.m |
| Range of spindle speed 60Hz | 120-2640 r.p.m | 120-2640rpm | 100-2500 r.p.m | 100-2500 r.p.m |
| Swivel angleof headstock (horizontally) | 360° | 360° | 360° | 360° |
| Table size | 520×160mm | 800×240mm | 800×240mm | 800×240mm |
| Forward and backward travel of table | 140mm | 175mm | 175mm | 175mm |
| Left and right travel of table | 290mm | 500mm | 500mm | 500mm |
| Motor Power | 0.55KW | 1.1kw | 1.1KW | 1.5KW |
| Voltage/frequency | As customer's requirement | As customer's requirement | As customer's requirement | As customer's requirement |
| Net weight/gross weight | 130kg/190kg | 283kg/333kg | 283kg/333kg | 285kg/335kg |
| Packing size | 620×750×1000mm | 1020×820×1160mm | 1020×820×1160mm | 1020×820×1160mm |
| Loading amount | 48pcs/20'container | 28pcs/20'container | 28pcs/20'container | 28pcs/20'container |
Standard Accessories:
Tie rod
Wedge
Allen wrenches
Tool box & tools
Optional Accessories:
Drill chuck Milling cutter holder MIll chuck Power feed attachment Auto-tapping electrical Paraller vise Working lamp Coolant system Machine stand and chip tray Clanping kits(58pcs) Rotary table
