China Good Quality Power Tiller Cultivator Gasoline Diesel Tiller with Garlic Planter

Product Description

Send me inquiry for more information

Our Advantages
Sales rank:China's top three.
Sample: Support sample order.
OEM: Support technical changes.
Free train: plant training on installation and maintenance techniques.
QC: Quality inspection before delivery for each unit.
Our Catalog
Product Description

Pls put Entry Bannar.Learn more about other products! Sales Promotion: discounts and gifts. Please send an inquiry!

Detailed Photos
Product Parameters

Machine parameters:LS-600 /LS-610 Power tiller/motocultor/gasoline cultivator

	Indices and models	LS-600	LS-610
Mini Tillers	Dimension(L*W*H)	1800×1050×850	1800×1350×850
	Max tilling scope(mm)	1100	1400
	Tilling depth	150~300	150~300
	Gear shifting	0,1,2,-1	0,1,2,-1
	Main running-in method	Machine grind-in	Machine grind-in
	Gear distance(mm)	500	500
	Productivity(mu/h)	0.8~1.5	0.8~1.8
Engine	Engine model	178F	186F
	Engine type	Single-cylinder, vertical, air-cooling, 4-stroke, direct injection
	Bore×stroke	78×62	86×70
	Displacement(L)	0.296	0.406
	Rated Power(max)kw(hp)/rpm	4.4(6.0)/3600	6.6(9)/3600
	Starting system	Hand start
	Fuel tank capacity(L)	3.5	5.5
	Fuel number	Num.0(summer)	Num.-10(winter)
	Lube capacity(L)	1.1	1.65
	Suitable lube	SAE10W30 after 20 hours
	Lube mode	By pressure
	Net weight	≤33	≤48
	Dimension(L×W×H)mm	383×421×450	417×441×494

Product parameters:LS-4200B Power tiller/motocultor/gasoline cultivator

Eengine model		170F 177F Gasoline,173F 178F Diesel
Structure		Front-mounted
Transmission mode		Chain Drive
Adjust the range of handle:Horizontal 360 degrees		Vertical:45 degrees
Main clutch type		Tensioner
Operating speed		0.72-1.44km/h
Productivity		0.03-0.06hm2/(h.m)
Fuel consumption		≤10kg/hm2
Ditching width		≥50-60cm
Furrowing		60cm
Blades type		Trenching blade
Number of blades		10-16
Tiller width	80cm	Number of blades	18pcs
Speed		320-500
Max.turning radius		200mm
Dimension(L*W*H)		1600*800*1000mm

Applies to:tiller ,loosen the soil ,ginger ,green onions,potatoes, tobacco ,grapes, sugar cane and other places furrowing.

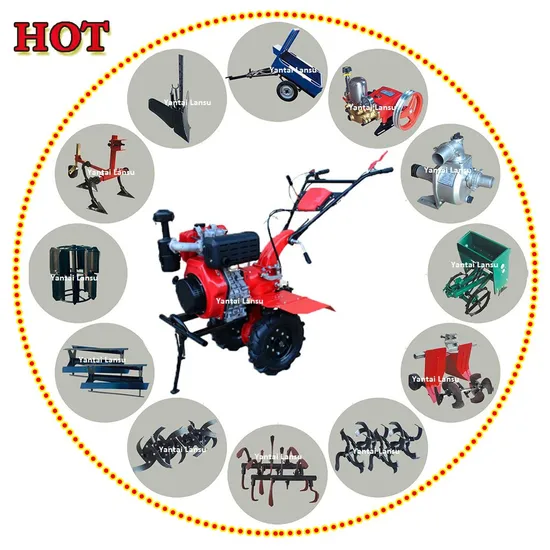

Accessories and Tools
Farming tools for Power tiller/motocultor/gasoline cultivator
Power tiller/motocultor/gasoline cultivator(motocutor) is a all-powerful agricultural machinery.lt can help farmers land consolidation (plought,rotary tillaqe, scarification,ditching,ridqing, earth up,grass mower Paddy field beating etc).
Crop planting and seeders (wheat, , corn, soybean seed, peanut, planting potatoes, vegetables eto Harvest (rice, wheat harvest, corn , peanut, potatoes, sweet potato Onions, ginger, qarlic).
The other management of land, water, spray, fertilization, paddy field operation etc).
Packaging & Shipping

Company Profile
With more than 20 years of industry experiences, our international trade headquarters located in port city -Yantai, machines produced in Yantai, Weifang, Linyi, shandong China. There are seven series with over sixty various of farming machines available including power tiller, walking tractor, four wheel tractor, spray machine, thresher and supporting farm tools,such as rotary tiller,plow,harrow,front loader,backhoe,grass bander, trailer,pump,corn planter,corn harvester and reaper. Already passed the international certification agency -S G S certification,technical person can be sent abroad. In the field of farming machinery,we can meet diverse customer needs by advanced technology and most popular agricultural machine.Exported to more than forty countries especially South America,eastern Europe,middle america and we are quality supplier of assistance to agricultural machinery project in africa. with prefect One-stop agricultural machinery products service system we get nice reputation. We are committed to creating benefit for our customers and our goal is to allow farmers in the world to enjoy reliable, quality, affordable complete set of agricultural machines.
