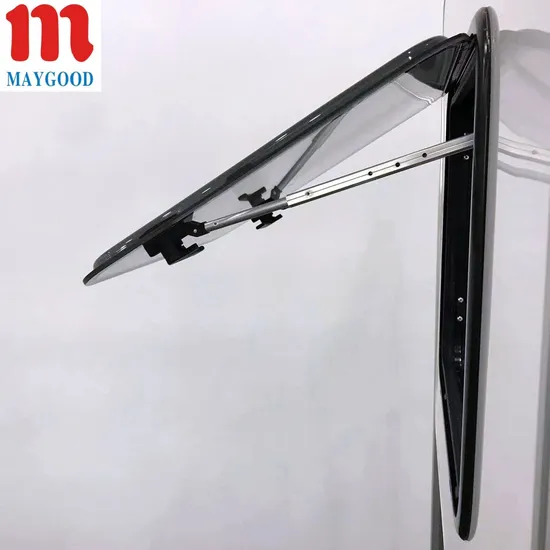

500*300mm Camper Trailer Caravan Aluminum Casement Side and Top-Hung Window

Product Description

Product DescriptionMAYGOOD Caravan Motorthome Trailer RV Round Corner Side Push Out Window
MODEL/MG17RW-AG / MG17RW-TG
SPECIFICATION Outer Frame: High quality aluminum alloy material; powder coated surface treatment;Black, white, gray or customized color.Glass: Double glazed transparent gray anti-UV acrylic or flat tempered glass; With ECE or 3C certificate;Features

1. Equipped with telescopic strut stays, maximum opening angle is 80 degree

2. Inner Frame: Organ type curtain and mesh.

3. Structure: Outer frame and inner frame can be used together or separate.

4. Easy and quick for installation.,

5. With good heat insulation and sound-proof performance.

6. Standard windows for wall thickness from 25 to 35mm(35-45mm,45-55mm or over 55mm)

7. Large range of sizes for choosing

Main Functions
With ventilation,sun shading, anti-insect functions. It can be applied in caravans, modified cars and special vehicles.
Product Parameters

Ser.	Ordering Size (W×H)mm	Cut-out Installation Size (W×H)mm	Inner Frame Overall Size (W+57×H+57)mm	Cut-Out Corner Radius
1	500×300	500×300	557×357	4R70
2	300×500	300×500	357×557	4R70
3	500×450	500×450	557×507	4R70
4	450×500	450×500	507×557	4R70
5	500×500	500×500	557×557	4R70
6	600×600	600×600	657×657	4R70
7	610×450	610×450	667×507	4R70
8	700×300	700×300	757×357	4R70
9	700×550	700×550	757×607	4R70
10	800×500	800×500	857×557	4R70
11	900×450	900×450	957×507	4R70
12	900×500	900×500	957×557	4R70
13	900×550	900×550	957×607	4R70
14	900×900	900×900	957×957	4R70
15	1000×500	1000×500	1057×557	4R70
16	1000×800	1000×800	1057×857	4R70
17	1100×450	1100×450	1157×507	4R70
18	1100×550	1100×550	1157×607	4R70
19	1200×350	1200×350	1257×407	4R70
20	1200×500	1200×500	1257×557	4R70
21	1450×550	1450×550	1507×607	4R70
	Other sizes is coming soon.

Special sizes can be customized.
W/H:height/width of window fitting surface(mm)Installation Instructions
