Factory Product Pig Pork Farm Slaughtering Equipment for Meat Processing Machine

Product Description

Equipment Introduction

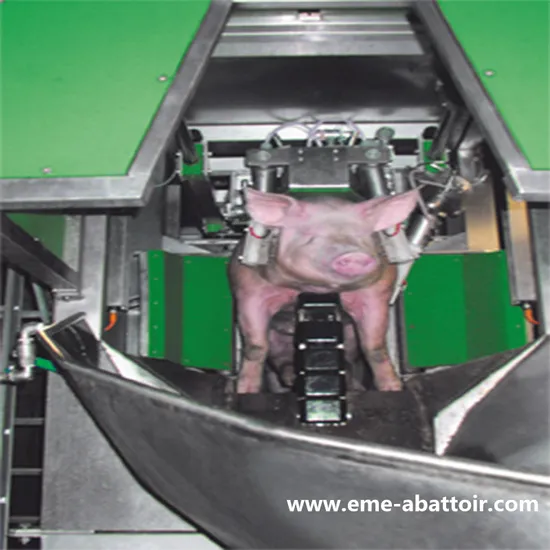

Living pig three point stunning machine
Application:	Which main used to fix and convey living pig for automatic stunning
Rated voltage / phase / frequency:	380v / 3p / 50hz
Power:	3Kw
Stunning frequency:	50Hz
Stunning current:	≤5A
Stunning time:	≤4s
Air consumption:	≤0.5M³/Min
Air pressure:	0.4-0.6Mpa
Loading weight:	100±25Kg
Missed rate:	≤1%
Out size:	6000*100*1750mm(L*W*H)
Component and material:	1) Hot galvanized or stainless steel main frame 2) High-quality carbon steel sprockets, chains, drive shaft 3) Rubber block 4) Stainless steel protective cover 5) PLC controlling system 6) Photoelectric switches 7) Frequency converter 8) Intermediate relay 9) Low-voltage electrical

Living pig stunning box
Application:	Which main used to fix living pig for stunning and killing
Air consume:	190L/ Time
Max capacity:	100 Heads per hour
Out size:	1700*600*2000mm(L*W*H)
Component and material:	1) Pig entrance device 2) Side door opening and closing device 3) Pig collection grid plate 4) Hot galvanized or stainless steel main frame 5) High polymer nylon plate

Living pig straddle conveying machine
Application:	Which main used to fix and convey living pig for automatic stunning
Rated voltage / phase / frequency:	380v / 3p / 50hz
Power:	3Kw
Capacity:	100 head per hour
Convey speed:	5/6/9M/min
Loading weight:	100±30Kg
Out size:	5500*600*1700mm(L*W*H)
Component and material:	1) Hot galvanized or stainless steel main frame 2) High-quality carbon steel sprockets, chains, drive shaft 3) Rubber block

Living pig manual stunning device
Application:	Which main used for small size abattoir pig stunning or combination with straddle-type conveyor stun machine
Electric current:	0.5-1.2A
Stunning time:	1~5s
Out size:	220X130X340 (LXWXH)
Component and material:	1) Stainless steel stunning forceps 2) Stunning generator

Some Other Pig Slaughtering Line Equipment
As a professional abattoir & slaughtering equipment manufacturer and slaughterhouse line solution supplier in China, Qingdao Empire Machinery Co., Ltd provide the professional turnkey slaughter line solutions for livestock including cattle or cow, sheep or goat, pig or hog and poultry including chicken, broiler, bird, duck slaughterhouse, including complete slaughter line and individual abattoir slaughtering equipment, and meat processing machine, and spare parts.
If you want to learn more about our other offerings and slaughtering line solutions , simply contact us or request a quote.And we are happy to answer any questions.
COMPANY BRIEF INTRODUCTIONQingdao Empire Machinery Co., Ltd (After here called "EME") is one of the largest and professional livestock abattoir (slaughter) equipment manufacturer and Islamic Halal abattoir (slaughter) technology solutions in China, which located in the coast city-Qingdao city and it is about fifty kilometer from factory to Qingdao international sea port, we are main supply various capacities cattlesheeppig and poultry abattoir (slaughter) equipment, and EME have cooperated with more than 80-countries meat processing factory owners around the world.
Why choose us?
1.Highest quality equipment and on time delivery.
2.Excellent after-sales service as EME company operation philosophy.
3.Our global experience enable EME to meet specific national.Regional and local requirements from large and small meat processing company.
EME professional work:

• Cattle/cow slaughtering line equipment • Sheep/goat slaughtering line equipment
• Pig/pork slaughtering line equipment • Poultry slaughtering line equipment
CORPORATION CERTIFICATION☆ Islamic Halal Standard Certificate ☆ Through ISO9001: 2000 Standard in 2003
☆ Through OHSAS 18001: 1999 Standard in 2008 ☆ Through ISO 14001: 2004 Standard in 2008
EXPORTING AREAUnited Stated,Canada,Japan,Russian,Vietnam,North Korea,Pakistan,Bangladesh,Ivory Coast,Libya,Tanzania,Out Mongolia,South African,Egypt,Nigeria,Thailand,India,Pure,Ethiopia ,Cambodia,Australia,New Zealand,Papua New Guinea,Central African,Cameroon,Republic of Congo,Senegal,Ghana,Saudi Arabia,Qatar,The United Arab Emirates,Türkiye,Kazakhstan,Kyrgyzstan,Tajikistan,Uzbekistan,Turkmenistan,Brazil,Argentina,Mexico,Peru,Iran,Sultan,Tunisia,Kenya,Uganda,Zambia,Mozambique and so on .
Production line
Conference with customers
Cooperation with customers
Packing and delivery
FAQ
1.Q: How do I pay for my purchase order?
A: T/T, L/C ,Western Union
2.Q: What's the delivery time?
A: After received the down payment,we begin production But the exact time is according to actual situation.
3.Q: Can I have my own customized product?
A: Yes,we will produce the equipment as your slaughtering capacity. welcome.
4.Q: How about the warranty?
A: Usually 1 year,but also can customized .
5 Q:Are you manufacturer?
A:Yes, we are professional manufacturer of meat machines with more than 20years experience.
6.Q:What about the price?
A:We only offer high quality product with the reasonable price instead of high price.
