New Metal Coating Machinery Coating Line Spray Booth CE Certified for Car Bumper Products 380V 220V

Product Description

Product Name:

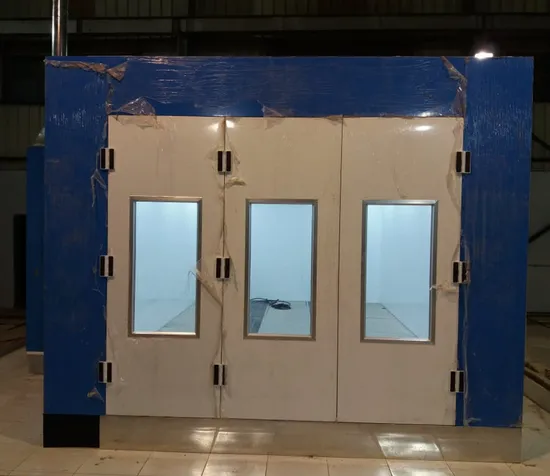

Auto Car Spray Booth RL-800
Product Pictures:
This car spray booth gives stable working performance. It can provide the car paint spraying process with the desirable workspace. Our product is considered as the most ideal model for the auto repair shops of our customers from home and abroad. It is usually applicable for both car repair factories and common car 4S shops in those countries or regions where the environmental protection is demand.
1) Outside Size:(mm): 7000x5560x3430
2) Inside Size:(mm): 6900x4000x2650
3) Door Size:(mm):3000(width)x2600(height)
4) Total Power: (kw): 16
Product Parameter:

Cabin System	Wallboard	EPS (epispastics polystyrene)Colorful Steel Skin Boards,50 mm Thick, Tongue & Groove Style, Compound Construction, Anti-flame and Heat-Insulation,the thick of colorful steel skin board is 0.326mm. Galvanized Roof Panel
	Basement	Galvanized Steel Sheet and Square Steel Pipe assembling, Two rows of grid &three rows of embossed plate. Three embossed steel ramps.
	Ramp	Three Ramps, Embossed Steel Plates.
Air Intake and Exhaust System	Inhaling Ventilator	Model: YDW 4.5AL1	Exhaust Ventilator	Model: YDW 5.6S
		Blowercapacity:24000m3/h		Blower capacity:15000m3/h
		Pressure:815Pa		Pressure:810Pa
		Rolling speed: 900rpm		Rolling speed:900rpm
		Power: 4kw		Power: 7.5kw
		Quantity: 2 sets		Quantity:1set
	Air Volume: 24000m3/h; Air Speed: 0.35m/s
Air Purification System	Dual Filtering Structure, The Primary Filter Can Capture Granules Larger than 10 μm. Ceiling Filter Capture Granules Bigger than 4μm. The Whole Purification System Has Capacity of Large Volume of Dust. It's Filtering Rate Reaches 98%. TSP≤1.4mg/m³.
Heating System	Burner	Italy Riello Brand,G20 Diesel Burner, 180000Kcal/h, 20N Damp Motor
	Heat Energy Converter	Stainless Steel, Argon Arc Welding, The Heat Exchange Rate 85%
		20N Damper from Switzerland
	Max Temp:80.c, Heating Time:6-8min(20-60c), Fuel Consumption: 6-8kg/vehicle
Light System	Ceiling Light: 32 pcs 36w Lamp; Bottom Light: 16 pcs 36w Lamp, 1000 Lux
Controlling System	Micro-Computer Programmed Controlling, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm
Environmental System	Multi-Layer fiberglass, active-carbon

Workshop Pictures:
Customer Feedback Picture:
Company Profile:Qingdao Ruitailin Tyre Co.,Ltd. is a high-tech enterprise which specializes in developing and producing automotive maintenance and diagnostic equipment,Which has a development history of more than 20 years.we lay stress on market as our development orientation new products development as our responsibility and try our best to offer high quality products for all of the world users. We always insist on the quality begs the existence,the service strives for the development as our enterprise aim, so that our company is highly praised and approved by the users. in order to providing work better products for the users,we can offer the full range car and truck tyre changer;industrial and OTR tyre changer;wheel balancer;car lift;wheel alignment; Truck Jack;Tire test tanks;car lift;air compressor;mobile bead seater;inflation cage;Tire digital inflator;forklift solid tyre press machine.Certificate:
FAQ:
Q1:Can you provide OEM services?A: Yes, we can provide OEM and ODM services according to customer requirments.Please contact us and we will provide you with a quote based on your specific requirements.Q2:What is the term of packing?A: Generally, we pack our goods in wodden cases and cartons.Q3:What is the delivery time of your products?A: The delivery time of our products varies, depending on the product type and specifications, as well as the quantity of your order.Q4:What is your warranty policy for your products?A:The specific warranty period and coverage depends on the product type and specifications. Please contact us to discuss the warranty policy. Q5:Can you provide technical support of your products?A: Yes, We will provide free technical support of our products. Please contact us for technical support,We are always here to help.
