Three Legged Angle Steel Telecommunication Mast Tower

Product Description

Steel structure is a structure composed of steel materials, which is one of the main types of building structures. The structure is mainly composed of steel beams, steel columns, steel trusses and other components made of profiled steel and steel plates. Welds, bolts or rivets are usually used to connect the components or components. Because of its light weight and simple construction, it is widely used in large-scale factory buildings, venues, super high-rise and other fields.
Product Description Product Description
20m 25m 30m 35m 40m 42m 45m 48m 50m 52m 55m 60m 65m Three Leg Angular Steel Telecom Angle Steel Tower
How tall are cell towers? Bestower can provide communication towers of various heights according to your needs!

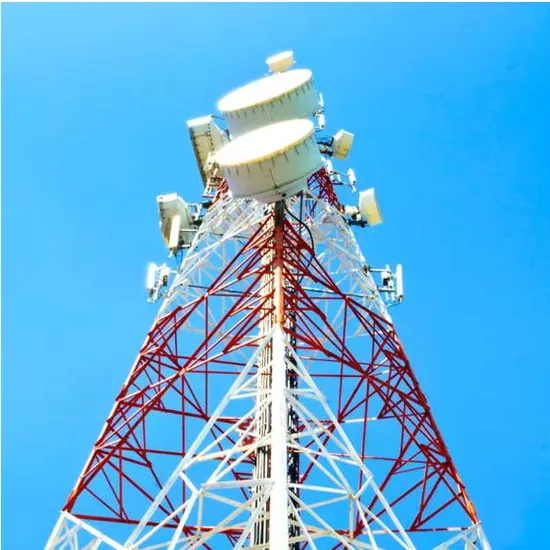

What Is 3 Legged Angular Steel Tower?
3 legged angular steel tower is a kind of self-supporting communication tower. It can also be called 3 legged angular steel communication tower, telecommunication tower, antenna tower, cell phone tower, GSM Antenna tower, microwave tower, etc.3 legged angular steel tower are higher steel structures used all over the world for communication applications. Their function to support antennas for telecommunications, broadcasting and WIFI internet. 3 legged angular steel tower is usually come with pre-designed accessories, just like platforms, ladders with cable tray, antenna brackets, aviation light brackets and fall prevention device, etc.
Performance Standard
Besides conforms to the drawing and design, the materials and fabrication of tower components shall conform to the following standards (Chinese Standards) and customer's requirements.
Steel pipe/angle/hybrid tower welding requirements
1 )we used CO2 welding and submerged arc auto welding or other methods.
2 )Welded seam shall be full penetration and grinded.
3 )The welded product has no fissure, scar, overlap, layer or other defects.
Steel tower Galvanization/color painting
All steel items, bolts, nuts, washers & other components to be hot -dip galvanized with uniform. As per (ASTM-A-123). Paiting for corrosion proof.
Company Hardware Configuration
1. Our company has advanced digital physical and chemical laboratory.
2. We have advanced production equipments:
one CNC bending machine, have two domestic advanced digital automatic production line for steel pipe tower, have 6 automatic numerical control robot welding system, have one steel tube joint welding machine, have 3 CNC plasma flame cutting machine, have 5 high speed CNC angle steel line and steel plate production line, one CNC tower foot welding robot system, 2 CNC Plane drilling machine, 1 sand shot blasting machine, 1 gantry type submerged arc welding machine. 6 cutting/shearing machine.
Our management and technical advantages
1.ERP production management system
2.We are China steel structure association membership.
3.We are provincial star enterprise.
4.We have AAA credit grade, which awarded by Agricultural bank.
5.We have ISO 9001: 2015 standard certificate.
6.We have ISO 9001: 2015 standard certificate.
7.We have OHSAS 18001: 2007 standard certificate
8.We have EN1090 certificate
Our telecommunication tubular steel tower
1. Our products have high resistivity against heat, humidity, moisture, water etc.
2. Owning to use the rare earth special craft during the production process, to ensure its high precise, good quality and competitive advantage. Meanwhile, we can accept the product type damage test to ensure the high safe factor of our products.
3. Because of good quality and competitive price caused by innovation and management reform, experienced service in fabrication, design, installment, consultancy, we have built longterm relationship with many countries, such as USA, Canada, Luxembourg, Norway, Australia, Myanmar, and many other regions.
The specification of the our tubular steel telecommunication tower as follows:

Height	5-100M
Wind Pressure	0-300 KM/H
Structure	Overlap Connection, bolt connection
Material	Q345B/A572, minimum yield strength >=345MPA; Q235B/A36, minimum yield strength>=235MPA
Details & Shape	Can be designed as per customer's requirement
Good's Description	Cable and Ladder can be assembled by customer's request
Lifetime	20 years
Main Pole Lifetime	More than 20 years
Barks	Hot Dip Galvanization and Special Tree Gluewater
Delivery Time	28 days after receiving deposit
Galvanizing Standard	EN ISO 1461,ASTM/A123 or equivalent
Working & Resting Platform Quantity	1-3 PCS
Antenna Support	3-18 PCS
Microwave Dish	3-18 PCS
Manufacturing and Workmanship	BS449 or AISC
Welding Standard	AWS D1.1, AS554, AS 4100 standard or equivalent
Nuts& Bolts	Grade 8.8
Spare parts	All Necessary parts, e.g. Antenna Mount pole and Brackets , Climbing Steps, Safety Guide Cable, Lightning Rod, Mounting bracket for Obstruction light, Holding down bolts/nuts, and all other bolt and nuts required for erection and installation

Why Choose us? * Tower Design tailor made to your requirements * Pre Dispatch inspection by buyer or international inspection agency. * Steel certified as per international. * Design of Tower as per China/ International design standards. * Galvanization as per international standard. * Timely project completion. * Convenient transportation to Qingdao port & airport(only one hour) * We are manufacturer. We have our own land & factory. The land was bought instead of rent. * Independent import & export authorization from government. * Price is competitive. If you are interested in our tubular telecommuication tower, please don't hesitate to contact us. And welcome come to visit our factories.
