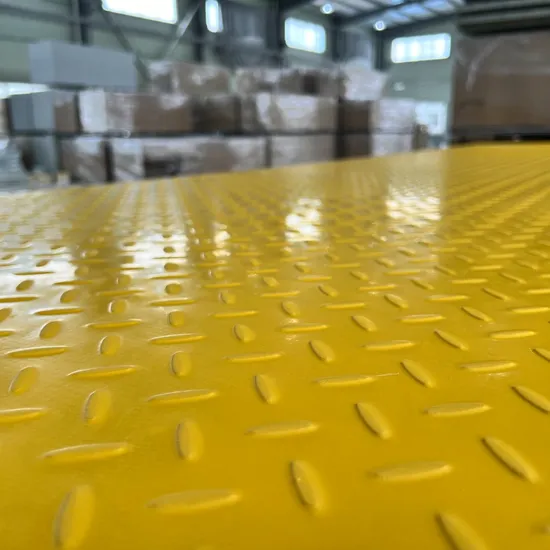

High Strength Diamond Surface FRP/GRP Fiberglass Solid Top Covered Decking Molded Grating

Product Description

FRP PULTRUDED GRATING
Pultruded grating is suitable for applications with a large span and a high load. Pultruded grating is highly fire-resistant and can be used in various heavy industrial environments and chemical, aggressive and corrosive conditions. Sinogrates Moulds Specification Table

SINOGRATES supplies pultruded FRP grating in various panel sizes and thicknesses, with variations in tie rod distance and open spaces. Fibreglass reinforced plastic (FRP [GRP]) pultruded grating can be fitted with a quartz surface (anti-slip layer) and a solid cover plate.
Pultruded Fibreglass Reinforced Plastic grating
Pultruded FRP grating is made of fibreglass reinforced plastic (FRP [GRP]).
Pultruded FRP (GRP) grating consists of pultruded load bars that are interconnected by means of tie bars. This grating can be supplied in a polyester, vinylester or phenolic resin. Phenolic resin has excellent properties with respect to. Due to the specific construction and the use of a high glass percentage (approximately 65-70%), pultruded Fibreglass Reinforced Plastic (FRP) pultruded grating is high in strength. Pultruded Fibreglass Reinforced Plastic grating is therefore widely applied in applications that require high strength and at a large span (from 1 to 2 metres). This process creates continuous lengths of FRP with a consistent cross-section.

About Pultruded FRP Grating
Pultruded FRP Gratings are assembled from pultruded shapes. These shapes (I-Bars, T-Bars, etc.) are manufactured by pulling fiberglass rovings and mats through guides, then into a resin bath, then wrapped with a surfacing veil, then finally pulled through a heated die to form the desired bar shape. Once the bars are pulled, they are drilled for crossrods, then assembled by installing the crossrods spaced on 3" or 6" centers (depending on the grating type). These crossrods, that lock the bars into place, are then bonded with epoxy to ensure the bars will not move.

Pultruded Grating Advantages Corrosion Resistant Fire Retardant Low Maintenance High Strength-to-Weight Ratio Non-Conductive Low Installation Cost Slip Resistant High strength-to-weight ratio
Resin Options Guide
Pultruded gratings are typically manufactured with either an Isophthalic Polyester Resin or a Vinyl Ester Resin, but can be manufactured in any resin available.

	Resin type	Properties	Fire retardant(ASTME84)	Max ºC Temp
	Type P	Low smoke, superior fire resistance	Class 1,5 or less	150 ºC
	Type V	Superior corriosion resistance, fire retardant	Class 1,25 or less	95 ºC
	Type I	Indrustrial grade corrosion resistance , fire retardant	Class 1,25 or less	85 ºC
	Type O	Moderate corrosion resistance, fire retardant	Class 1,25 or less	85 ºC
	Type F	Moderate corrosion resistance, fire retdardant	Class 1,25 or less	85 ºC
	Type E	Excellent corrosion resistance, fire retardant	Class 1,25 or less	180 ºC

Other Pultruded products to recommend
Clip Fastening & Installation Methods
To ensure ease of installation, please review all relevant technical documentation.
Take care when fasteningand seek assistance if required. For further info regarding installation please contact .
The section below illustrates standard installation methods that can be applied to moulded grating.
Clip and fastening selections should be made according to the substrate material in use.

FRP Pultruded Grating Applications
Pultruded grating projects demonstrate the versatility and effectiveness of this composite material in enhancing infrastructure and safety across diverse industries. Its unique properties make it an invaluable asset for creating durable, corrosion-resistant, and safe structures that meet the demands of modern applications. As the need for sustainable and long-lasting solutions grows, pultruded grating is poised to play an even more significant role in shaping the future of infrastructure and safety.
Packing & Transportation

About US!
Nantong sinogrates composite material technology co., Ltd is one leading factory located in Nantong City , Jiasu Province, it specializing in manufacturing fiber glass reinforced plastic (FRP) products. the main products series related with FRP, It inclued FRP molded grating, FRP putruded grating, FRP Pultruded profiles, FRP Handrails systems and FRP hand-lay up products,such as I beam, Angle, Channel, Square box section, etc. FRP grating systems are frequently used in the manufacturing of a large assortment of products including stair treads, platforms, garden and so on.
We are the factory certificated by ISO9001, with stricity international quality management systems. Per the Aulo-maching for mold grating, it would enhance the output of FRP product, besides professional laboratory with various experimental equipments, which can carry load span bearing tests of FRP products to ensure that FRP products's strengh meets different standrads, with high quality, high production efficiency, competitive price and professional technicians and salesman, we have been devoting ourselves to satisfying our customers requirements.
JEC Composite Show In Exhibition

DEM Guide To Chemical Resistance
Certificates
FAQ What types of engineering load data is available for grating products? <Uniform, concentrated point load - molded grating only, and concentrated line load tables are available for all our grating products.
What information is required to make a good resin system recommendation?
<In order for technical services to properly formulate a specific resin, they must have information about the application including chemical type, chemical concentration, temperature, and exposure level of the chemical to the product.
What type of grit is used on standard grit top grating products?
<Sinogrates standard grit is a quartz grit which is integrally applied, cured and sealed onto the surface of the grating.
When placing a grating order, what accessories should also be considered?
When placing an order, also consider these accessories: hold-down clips to secure grating, grating legs to elevate grating, EZ angles for corrosion resistant ledges, epoxy spray to seal cuts and penetrations, or saw blades to cut material.
Why should I seal areas on FRP products that have been cut, scraped, scuffed or scratched?
Any area that has been cut, scraped, scuffed or scratched should be sealed to prevent corrosive chemicals from reaching exposed glass fibers which maintains corrosion resistance, thus extending the life of the product.
What ergonomic benefits do Fibergrate FRP products have?
Unlike stiff metals, FRP provides deflection and resiliency to cushion steps and also reduce back and leg fatigue.
