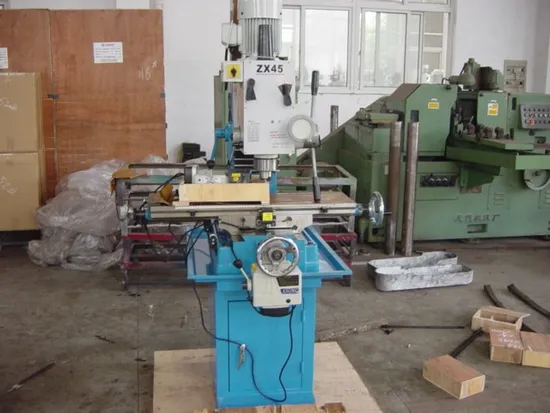

Zx45 Gear Head Bench Dro Milling Drilling Machine Senmo

Zx45 Gear Head Bench Dro Milling Drilling Machine Senmo

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.
ZX45
Type
Worktable Milling Machine
Structure
Rocker
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Automatic Grade
Manual
Precision
Precision
Certification
CE
Condition
New
Working Table Size
800X240mm
Working Table Travel
560X190mm
T-Slot Size
14mm
Spindle Stroke
120mm
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84592900

Product Description

Milling Drilling Machine ZX45 Feature
·Milling drilling, tapping, boring, reaming
·Gear driving and strong cutting power
·Headstock can rotated 360°and can tilted ±45°
·Heavy-duty tapered roller bearing spindle
·Positive spindle lock
·Adjustable gibs on table
·Micro feed precision

Specifications ZX45
Max. drilling capacity (iron/steel) Ø45/32mm(MT4)
Face mill capacity Ø80mm
End mill capacity Ø32mm
Working table size 800x240mm
Working table travel 560x190mm
T-Slot size 14mm
Spindle stroke 120mm
Max. distance spindle to table 460mm
Distance between spindle and column 260mm
Head tilt left and right 90°
Spindle taper MT3 or MT4 or R8
Spindle speed range 1 Speed motor 1.1KW (standard): 75-1600rpm
2 Speed motor 0.85KW/1.1KW (optional): 75-3200rpm
Number of speeds 6 or 12steps (optional)
Auto spindle feeds (optional) 0.1/0.18/0.26mm/r
Cooling motor (optional) 40W
N.W/G.W 330/380kg
Packing dimension (w/o stand) 850x760x1150mm
20' container 36sets

Standard Accessories Optional Accessories
Draw bar S-Machine stand
Adapter C-Cooling system
Taper shank for drilling chuck L-Halogen light
Drilling chuck W-Work table power feeder
Arbor B-CE electrical control box(tapping)
T slot bolt F-Auto spindle feeder
Washer D-2-step motor
Nut R-Digital read out (DRO)
Tilted wedge
Spanner
Oil gun



Our Services
What we can do for you? 1. Experienced staffs answer all your questions in time. 2. Customized design is available, more details to let you know our machines well. 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
