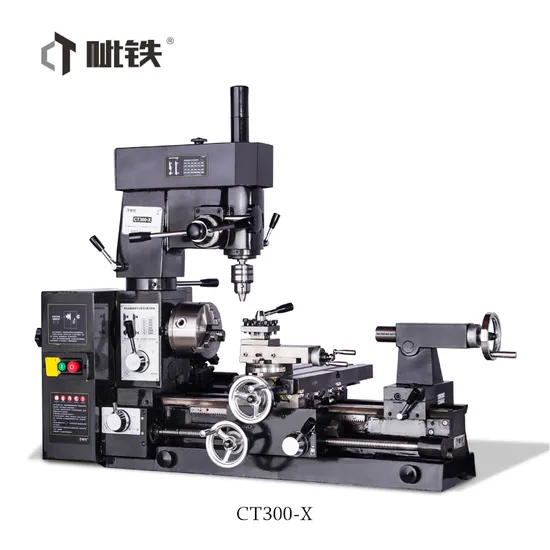

3 in 1 Combination Lathe Mill Combo Machine CT300-X with Low Price
Basic Info.
Model NO.
CT300-X
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Table
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
HS
8458190000
MOQ
1
Feature
High Precision
Produce Capacity
1000
Transport Package
Standard Wooden Packing
Specification
850*580*1160mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
82
Product Description
| Turning-parameters | |
| Max. swing over bed | 300mm |
| Max. swing over tool post | 140mm |
| Max.machining length | 500mm |
| Spindle taper | MT4 |
| Spindle bore | 26mm |
| Max. travel of tail-stock sleeve | 50mm |
| Taper of tail-stock | MT3 |
| Middle carriage travel | 200mm |
| Small carriage travel | 80mm |
| Metric thread/Grade | 0.5~3mm/14 |
| Inch thread/Grade | 11~40T.P.I/20 |
| Transverse feed | 0.05~0.5mm/manual |
| Longitudinal feed/Grade | 0.05~0.5mm/2 |
| Spindle speed range/Grade | 160~1600r/min(6) |
| Motor power | 750w |
| Drilling and milling-parameters | |
| Max.Drilling capacity | 20mm |
| Table size | 420X150mm |
| T-slots size | 12mm |
| Z spindle travel | 80mm |
| Spindle taper | MT3 |
| Spindle travel | 80mm |
| Distance from spindle to column guide rail | 175mm |
| Distance from spindle end to table surface | 240~320mm |
| Spindle speeds/Grade | 125~1600r/min(12) |
| Rotation angle of drilling and milling box head around the column | 360° |
| Net weight/Gross weight | 210KG/220KG |
| Overall dimensions | 1160x580x850mm |
| Package Size | 1100x570x950mm |
