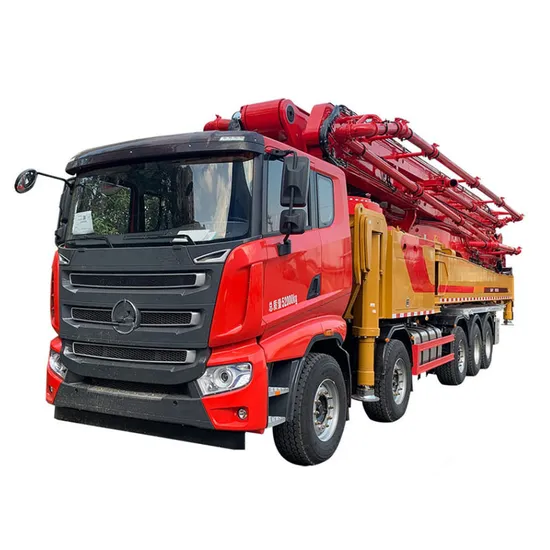

Used Sanny Concrete Pump Truck Price Syg5360thb 49m with Best Quality
| US$50,000.00-60,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SYG5360THB 470C-10(SZ-AM)
Type
Tanker
Certification
ISO9000, CE
Volume
＜3000L
Emission Standard
Euro 4
Transmission Type
Automatic
Payload
20T
Fuel
Diesel
Drive Wheel
6×4
Horsepower
351-450hp
Condition
New
Vertical Reach
47 M
Output
155 M3/H
Pressure
8 MPa
"Dead Weight"
25500
Horizontal Reach
42
Reach Depth
29.3
Unfolded Reach
13.9
Oil Tank Capacity
680
Water Tank Capacity
620
Transport Package
Nude
Specification
10750x2550x3600
Trademark
SANNY
Origin
China
HS Code
8705309000
Production Capacity
500000/Per Year
Product Description
Company Profile Used Sanny Concrete Pump Truck Price Syg5360thb 49m with Best QualityThe company is a smart networked information company that specializes in supply chain management for imports and exports, as well as complete logistics. We primarily concentrate on the worldwide industry of Chinese construction machinery. Our selection includes concrete pump trucks, mixer trucks, and a variety of other electric and construction equipment. Furthermore, we collaborate with popular brands such as Sanny and Chery. Our track record in the global EPC industry and the successful project executions illustrate our dedication to expanding trade and services internationally.
Product Parameters
| Model | Unit | 470C-10(SZ-AM) | SYG5360THB | ||
| X-unit,Spe | Length | mm | 10750 | ||
| Width | mm | 2550 | |||
| Height | mm | 3600 | |||
| Dead weight | kg | 25500 | |||
| Boom & Outrigger Specification | Vertical reach | m | 47 | ||
| Horizontal reach | m | 42 | |||
| Reach depth | m | 29.3 | |||
| Unfolded reach | m | 13.9 | |||
| 1st Section | Length | mm | 9760 | ||
| Articulation | 89° | ||||
| 2nd Section | Length | mm | 7670 | ||
| Articulation | 180° | ||||
| 3rd Section | Length | mm | 7410 | ||
| Articulation | 180° | ||||
| 4th Section | Length | mm | 9670 | ||
| Articulation | 235° | ||||
| 5th Section | Length | mm | 8545 | ||
| Articulation | 215° | ||||
| 6th Section | Length | / | / | ||
| Articulation | / | / | |||
| Rotation | ±360° | ||||
| Front outrigger spread L-R | mm | 8600 | |||
| Rear outrigger spread L-R | mm | 9000 | |||
| Pumping Systerm Specification | Output | Low-pressure | m3/h | 200 | |
| High-pressure | m3/h | 137 | |||
| Pressure | Low-pressure | MPa | 8.3 | ||
| High-pressure | MPa | 12 | |||
| Max. strokes | Low-pressure | times/min | 33 | ||
| per minute | High-pressure | times/min | 22 | ||
| Delivery cylinder diameter | mm | 260 | |||
| Stroke length | mm | 1900 | |||
| Hydraulic system | Open | ||||
| Hydraulic system oil pressure | MPa | 32 | |||
| Oil tank capacity | L | 680 | |||
| Water tank capacity | L | 620 | |||
| Pipeline size | mm | 125 | |||
| End hose length | m | 3 | |||
| End hose diameter | mm | 125 | |||
| Chassis Specification | Chassis brand | / | |||
| Chassis model | / | ||||
| Engine type | / | ||||
| Engine maximum net power | kW/rpm | / | |||
| Emission standard | / | ||||
| Capacity of fuel tank | L | / | |||
| Displacement | L | / | |||
| Max. speed | km/h | / | |||
Detailed Photos
OUR SERVICES 1-Exceeding Customer Expectations By providing customers with superior service,we will make every customer's equipment to achieve the maximum value
2.Exceeding Industry Standards -By implementing the highest service standards in the industry,we will achieve The highest levels of customer satisfaction.
Shipping
