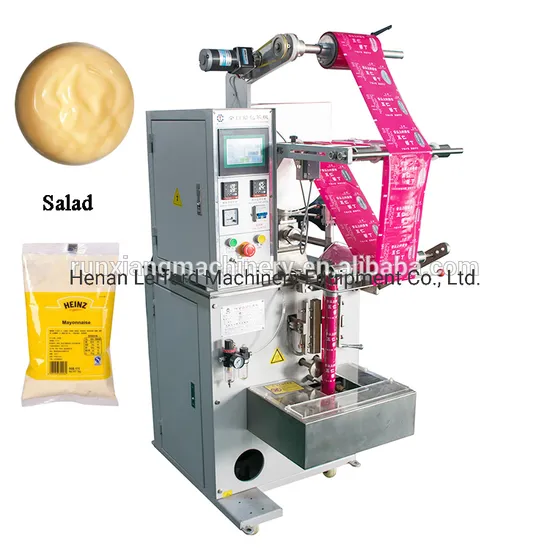

Automatic Food Grade Shampoo Ginger Garlic Tomato Paste Liquid Packaging Packing Machine

Product Description

Automatic Food Grade Freezits Shampoo Sechet Ginger Garlic Tomato Paste Liquid Packaging Packing Machine
Application:Juice, Honey, Ketchup, Peanut butter, Garlic sauce, Milk, condensed milk, Shampoo, gel, emulsion, lotion, Liquid detergent, liquid soap…Introduction of Tomato paste packaging machine is a specialized device that is used for packing tomato paste in sachets or packets. This machine is widely used in food processing industries where the speedy and effective packaging of tomato paste is required.
The operation of the tomato paste packaging machine is straightforward. First, the tomato paste is loaded into the machine's hopper, where it is stored for packaging. The machine automatically forms the sachets and fills them with the tomato paste. Then the sachets are sealed and finally cut to the required size. This whole process is completed in a matter of seconds, providing a high-speed solution for packaging tomato paste.
Standard setting: Closed sealer housing Intuitive operator guidance on the button/touch panel Integration of all identification systems Printed mark identification & measurement of bag lengths Use of different heat sealing and welding instruments Minimal time required when changing rolls Stop when film roll end. Detect the fault automatically. Seal tight, no leaking. Available option spare parts: Stainless steel and Paint version Display panel: Touch screen and Button screen Date & batch printer Date embossing system Exhaust sponge system, less air inside the packet Easy tearing notch Round and euro-hole punch, carrying handle punch Insulation and stirring system Numerical control cutter, 1-99 packet Flat bottom package with center seal Frequency control system, less noise Power supply: - 110V, 120V, 220V, 240V. - 50Hz, 60Hz. Bottom holding set
MAIN FEATURES:
1. Pneumatic injection pump, adjustable injection volume, 304SS.
2. 7 inches touch screen, easy operation and multiple language for choice.
3. Stable software system to ensure smooth operation of the machine. Packing speed and length is settable.
4. With a memory function for storage 10 sets of parameters. Easy to change different packing product and package sizes.
5. Separate PID temperature controller, suitable for various packing materials.
6. Multi-union roll film pulling system makes film running more smooth.
7. Double servo film-dragging structure, enable stable bag forming for perfect bag shape.
8. Sophisticated sealing framework achieve the consistency of bag sealing and cutting.
Function:
This machine integrates mechanical and electrical functions, two CPU computer control system, large screen LCD, microcomputer control optical tracking correcting system, equipped with high-precision stepper motor, exactly the same position design of each bag, control system of complete synchronization, fixed length, position and speed, automatic fault diagnosis function. Can choose a ribbon typewriter or stamp marking device.
Application:
This machine can be used to pack the liquid or paste of food stuff,chemical,and cosmetion,such as shampoo,edible oil,cooking oil,water,honey,juice, drink,liquid milk,tamato paste,suace,ketchup, Liquid Condiment and Cheese Fondue etc.
Technical parameter:

Model	THB4 -S320L(Pillow)	THB4-S320L(3 side)	THB4 -S320L(4 side)
Film Width	Max. 300 mm	Max. 320 mm	Max. 320 mm
Bag Length	60-200 mm	60-200 mm	60-200 mm
Bag Width	40-140 mm	40-160 mm	40-160 mm
Packaging Speed	15-40 bags/minute	15-40 bags/minute	15-40 bags/minute
Range of Metering	10-500 ml	10-400 ml	10-400 ml
Film Thickness	0.04-0.12 mm	0.04-0.12 mm	0.04-0.12 mm
Power	220V 50Hz 2KW	220V 50Hz 2KW	220V 50Hz 2KW
Dimension	1100×800×1750mm	1100×800×1750mm	1100×800×1750mm
Net Weight	About 300 KG	About 300 KG	About 300 KG

Note: We have several models. Please tell us: Materials, Packing weight, bag width /length, we will customize a suitable solution for you according to your requirment.
Now, let's discuss how to operate the tomato paste sachet packing machine:
1. Turn on the machine and adjust the temperature settings according to the type of material you are using.
2. Load the tomato paste into the machine's hopper, ensuring that it is clean and free from contaminants.
3. Check that all the machine's sensors are working correctly, and there are no leaks or blockages in the packaging process.
4. Adjust the size of the sachets by changing the sachet forming mould.
5. Turn on the machine's motor, and it will automatically start the packaging process.
6. Check the machine's output regularly to ensure that it is running smoothly and the sachets' quality is up to standard.
7. When you finish packaging, turn off the machine and clean it thoroughly.
In conclusion, the tomato paste sachet packing machine is a highly efficient and time-saving method for packing tomato paste. By following the simple steps mentioned above, you can effectively operate the tomato paste sachet packing machine and achieve optimal results.
