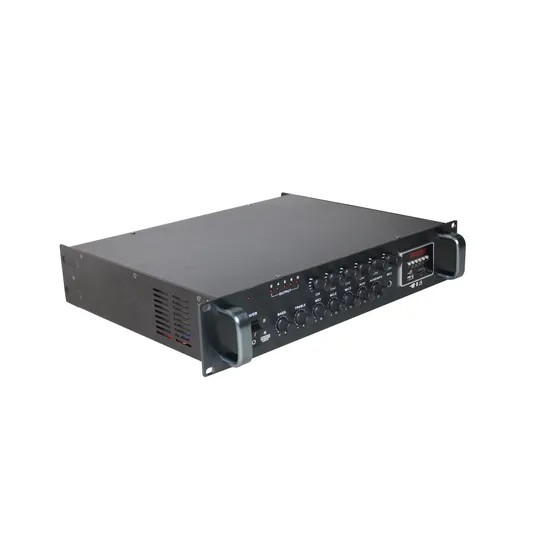

360W Mixer Power Amplifier with USB and Tuner 6 Zones
Basic Info.
Model NO.
MZ-1000BT
Used For
Professional
Function
Amplifier Combined
Model
Mz-1000bt
Rated Power Output
360W
Amplification
Analog 100V Transformer Type
Output
100V, 70V and 4-16 Ohms
Frequency Response
60 - 15kHz, +/- 3dB
T.H.D
Less Than 0.5% at 1kHz (1/3 Rated Power)
S/N Ratio
Better Than 85dB
Controls
Gain Controls and Power Switch
Cooling
Internal 12VDC Fan
Indicators
Power and Level Indicators
Power Consumption
510W
Net Weight
12kg
Gross Weight
13.8kg
Transport Package
Gift Box/ Export Carton/ Pallet
Specification
185(H) x 520(W) x 435(D) mm
Trademark
Lucky Tone
Origin
China
HS Code
8518400090
Production Capacity
20000PCS Per Month
Product Description
360W Mixer Power Amplifier with USB and Tuner 6 Zones Description:This series of commercial grade mixer power amplifier deliver clean and powerful sound with reliable performance. Ranging from 70W to 650W RMS power, with built-in 6-zone speaker selector and individual volume controller for each zone. These highly flexible mixer amplifiers designed for a wide variety of voice and background music applications such as restaurants, bars, stores and any small-medium size installations.Feature:1. With built-in USB/Bluetooth/Tuner/SD card
2. Flexible power rating of 70/130/260/360/500/650W
3. With 3 MIC inputs, 2 AUX inputs and 1 Line output4. 100V, 70V and 4-16Ohms transformerisolated speaker outputs5. Independent gain control for each zone 6. Separate BASS and TREBLE control
| Model | MZ-1000BT |
| Rated Power Output | 360W |
| Amplification | Analog 100V Transformer Type |
| Output | 100V, 70V and 4-16 Ohms |
| Frequency Response | 60 - 15KHz, +/- 3dB |
| THD | Less than 0.5% at 1KHz (1/3 Rated Power) |
| S/N Ratio | Better than 85dB |
| VOL Range | BASS: 100Hz (± 10dB), TREBLE: 12kHz (±10 dB) |
| Controls | Gain controls and power switch |
| Cooling | Internal 12VDC fan |
| Indicators | Power and Level Indicators |
| Power Consumption | 510W |
| Power Requirements | 220-240V AC, 50/60 Hz |
| Dimensions | 89(H) x 483(W) x 366(D) mm |
| Built-in Dimensions | 2 U rack 19 inch |
| Carton Dimensions | 185(H) x 520(W) x 435(D) mm |
| Net Weight | 12kg |
| Gross Weight | 13.8kg |
| Finish | Panel: aluminium, black Case: steel plate, black |
