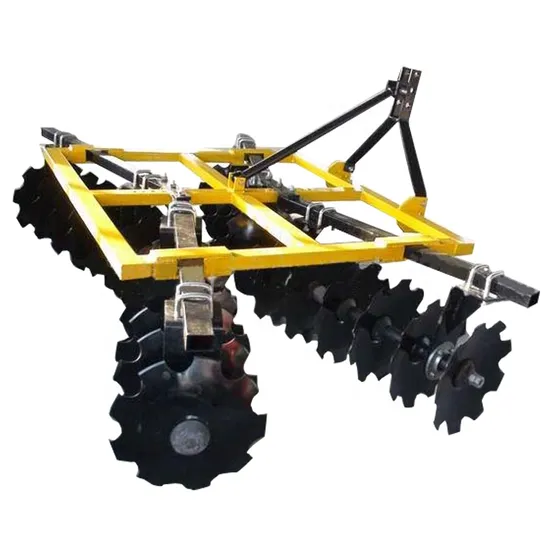

Tractor Disc Harrow Agricultural Machinery Light Duty Disc Harrow

Tractor Disc Harrow Agricultural Machinery Light Duty Disc Harrow

US$270.00-300.00 5 Pieces (MOQ)

Basic Info.

Model NO.
1BQDX-1.6
Farming Policy
Dry Cultivating Machinery
Power Source
Diesel
Operation
Soil Preparation Machinery, Movable Operation
Traction Type
Hanging
Drive Type
Tractor
Arbor Configuration
Disc Blades
Certification
ECE, EU, CE
Color
as Required
Warranty
1 Year
Working Wdith
1600mm
Working Depth
50-150mm
No. of Disc
20PCS
Diameter of Disc
460mm
Thickness of Disc
3mm
Weight
390kg
Linkage
Three Point Mounted
Matched Power
20-25HP
Disc Quantity
16PCS
Shaft Size
28 X 28mm
Frame Size
50-70mm
Axle Type
Square
Disc Harrow Type
Light Type
Disc Blades Material
65mn
Disc HRC
38-45
Transport Package
Iron Box
Specification
light duty
Trademark
None
Origin
China
HS Code
8432210000
Production Capacity
500PCS/Month

Product Description

Tractor Disc Harrow Agricultural machinery light duty disc harrow:
Product Description
This opposed light duty disc harrow is specially designed and made for Romania, Bulgaria, Serbia and other southern European countries, it is developed and produced in combination with foreign technology. Different from the original three-mounted light duty disc harrow, this disc harrow can eliminate tractor bias traction.
The series opposed light duty is mainly applicable to clean the crop residue before tillage, break the hardened soil and return the chopped straw to the soil,and also can crush colds after tillage, preparing soil before seeding, loosening the soil, combining the soil and fertilizer, and cleaning away stubble of plants in light soil field. This disc harrow is with strong soil crushing ability, widely used on the field after tillage. With reasonable structure, strong ability to rake, durable, easy to use and maintain, etc.
The disc blades used on disc harrow are with high tensile, heat treated notched discs, the structure is with easy gang adjustment with locking device, each gang with light duty grease bath bearings.


Product Parameters
Model 1BQDX-1.25 1BQDX-1.6 1BQDX-2.0 1BQDX-2.3 1BQDX-2.65 1BQDX-3.0
Working Width (mm) 1250 1600 2000 2300 2650 3000
Working depth (mm) 50-150
No. Of disc (pcs) 16 20 24 28 32 36
Dia x thickness of disc (mm) 460mm x 3mm
Weight (kg) 330 390 460 560 600 650
Linkage Three point mounted linkage
Matched power (hp) 35-40 40-45 50-60 60-75 75-85 85-100

Product Advantage
It is mounted light disc harrow, disc blades size 460 x 3mm, spool spacer length 200mm, square axle 28 x 28mm. This tractor offset disk harrow is suitable for 12-100 hp tractor. The material of notched harrow disc is 65Mn spring steel,it is more stronger, HRC 38-48. Strong and durable bearing. Fit the scraper for each disc blade to clean the objects. The working depth can be adjusted freely.
Detailed Photos
We have two types a following.


Packaging & Shipping


FAQ
RFQ:
Q: What's your delivery time? A: Generally, 15-20 days after receipt of deposit, but the specific time depends on order quantity.
Q: What are your terms of package? A: Carton Box.
Q: What is your terms of payment? A: 30% T/T as deposit, 70% before delivery.
Q: WHat are your terms of Trade? A: EXW, FOB, CFR, CIF
Q: Can I get some samples? A: Yes, we are honored to offer you samples.
Q: Do you test all your goods before delivery? A: Yes, we will 100% test before delivery.
