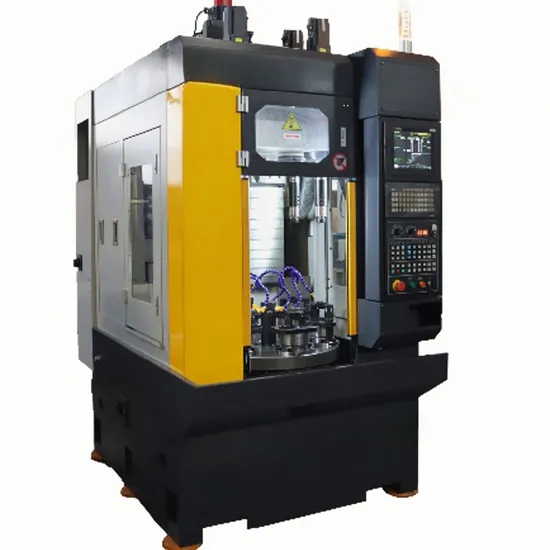

Efficient Vertical Automatic Reaming Honing Machine for Internal Grinding

Efficient Vertical Automatic Reaming Honing Machine for Internal Grinding

US$36,000.00-49,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
SVHM06
Type
Honing Machine
Processing Object
Inner Hole
Abrasives
Whetstone
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
CNC Honing Machine
Precision
High Precision
Certification
ISO 9001
Condition
New
Honing Diameter
5mm-60mm
Max. Stroke
400mm
Max. Honing Depth
200mm
Spindle Rotation Motor Power
1kw
Spindle Speed
10-2000rpm
Stroke Speed
2.5-25m/Min
Spindle Stroke Motor Power
3.6kw
Overall Dimension
2120*1100*2950mm
Transport Package
Ship/Train
Specification
3000kg
Trademark
SNALPO
Origin
China
HS Code
8460241900
Production Capacity
1500pieces/Year

Product Description

Product Description
product features

1. The main body of the machine tool is made of high-strength cast iron castings, which are subject to secondary aging treatment.
2. Spindle rotation of each axis is controlled by an independent servo motor to ensure accurate control of speed and torque.
3. The spindle reciprocating is controlled by servo motor, with high control accuracy and high processing efficiency.
4. The machine tool worktable adopts a precision rotary worktable, with accurate positioning and fast indexing speed.
5. Adopt CNC system control, stable and reliable, ISO standardized programming, easy to operate.
6. The cooling liquid is filtered by multistage filtration and forced cooling to ensure the processing accuracy and precision stability of parts.
7. Centralized lubrication system supplies oil intermittently to prolong the service life of sliding parts.
8. It can accurately control the geometric shape accuracy and surface roughness of the workpiece, and is suitable for high precision and mass processing requirements.

Main Components

Product Parameters
Items SVHM06
Honing diameter Φ5mm-Φ60mm
Max. stroke 400mm
Max. honing depth 200mm
Number of spindle 5-axis 6-station, 7-axis 8-station, 11-axis 12-station
Spindle rotation motor power 1kw/axis
Spindle stroke motor power 3.6kw/axis
Spindle speed 10-1000rpm
Stroke speed 2.5-25m/min
Workbench mode Electric rotary table
Total power 20kva
Machine weight 3000kg
Overall dimension 2120×1100×2950mm

Detailed Photos

Work Piece

Packaging & Shipping
Company Profile
